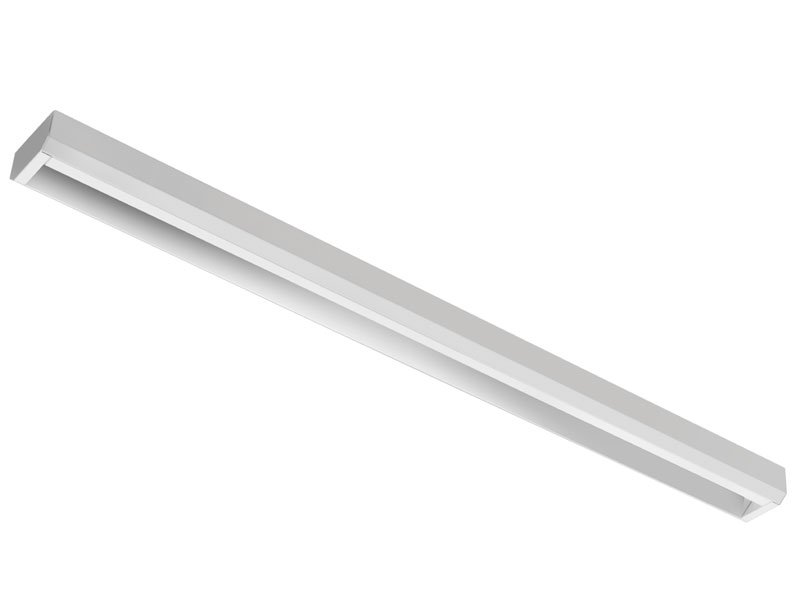

BASIC II ASYM SUR
Ideal tool for high vertical illumination. Illuminating of vertical surfaces means complementary lighting to the general lighting (horizontal) – such kind, that enhance impression of illuminated area, emphasize architecture, intensify spatial perception. In specific cases it could serve as a main tool of lighting design, that has not only architectural, but also purely functional character – for example blackboards in classrooms, goods displayed on shelves or pictures placed on walls.
Luminaire is constructed to use with one linear fluorescent lamp T5. Designed for direct mounting on solid surface. Luminaire housing made of 0,6mm sheet steel, white powder coated finish (RAL9003).
INSTALLATION TYPE
• SUR – surface mounted installation
OPTICAL SYSTEM

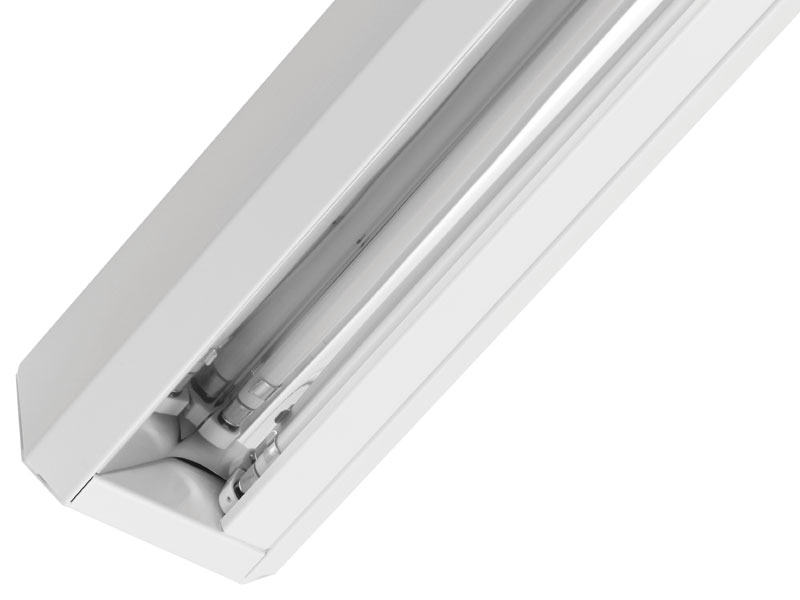

• RSA – asymmetrical reflector made of polished anodised aluminium
ELECTRICAL EQUIPMENT
• electronic control gear for linear fluorescent lamp T5
• lampholder G5
• 3 or 5 -pole screwless terminal block, max. 2,5mm2
• cable opening entry completed with cable gland
• through wiring possibility
OPTIONAL EQUIPMENT/ACCESSORIES
• lamps included in luminaire
• wired with multi-watt control gear
• wired with dimmable control gear (DIM 1-10V, DSI or DALI)
• M 3h – wired with emergency unit 3h
• M 1h – wired with emergency unit 1h
• various colour finish
SPECIFICATION
Type | A (mm) | B (mm) | X (mm) | O (mm) | kg |
BASIC ASYM SUR T5 1x28W | 1206 | 122 | 905 | 163 | |
BASIC ASYM SUR T5 1x54W | 1206 | 122 | 905 | 163 | |
BASIC ASYM SUR T5 1x35W | 1506 | 122 | 905 | 163 | |
BASIC ASYM SUR T5 1x49W | 1506 | 122 | 905 | 163 | |
BASIC ASYM SUR T5 1x80W | 1506 | 122 | 905 | 163 |
Code | Type |
BA90SU000T51028 | BASIC ASYM SUR T5 1x28W |
BA90SU000T51054 | BASIC ASYM SUR T5 1x54W |
BA90SU000T51035 | BASIC ASYM SUR T5 1x35W |
BA90SU000T51049 | BASIC ASYM SUR T5 1x49W |
BA90SU000T51080 | BASIC ASYM SUR T5 1x80W |
Control gear | Optics | Colour | Lamp | Emergency unit | Accessories | |||||
ECG | RSA | RAL 9003 | 28W/827 | M 3h | Wieland 3p | |||||
ECG-MULTI | 28W/830 | Wago 3p | ||||||||
DIM 1-10V | 28W/835 | Isodom | ||||||||
DSI | 28W/840 | |||||||||
DALI | 28W/865 | |||||||||
54W/827 | ||||||||||
54W/830 | ||||||||||
54W/835 | ||||||||||
54W/840 | ||||||||||
54W/865 | ||||||||||
54W/880 | ||||||||||
54W/940 | ||||||||||
54W/965 | ||||||||||
35W/827 | ||||||||||
35W/830 | ||||||||||
35W/835 | ||||||||||
35W/840 | ||||||||||
35W/865 | ||||||||||
49W/827 | ||||||||||
49W/830 | ||||||||||
49W/835 | ||||||||||
49W/840 | ||||||||||
49W/865 | ||||||||||
49W/880 | ||||||||||
49W/940 | ||||||||||
49W/965 | ||||||||||
80W/827 | ||||||||||
80W/830 | ||||||||||
80W/835 | ||||||||||
80W/840 | ||||||||||
80W/865 | ||||||||||
80W/880 | ||||||||||
80W/940 | ||||||||||
80W/965 |
