BASIC IP65 DIF RT600 T5 – EN

BASIC IP65 DIF RT600 T5

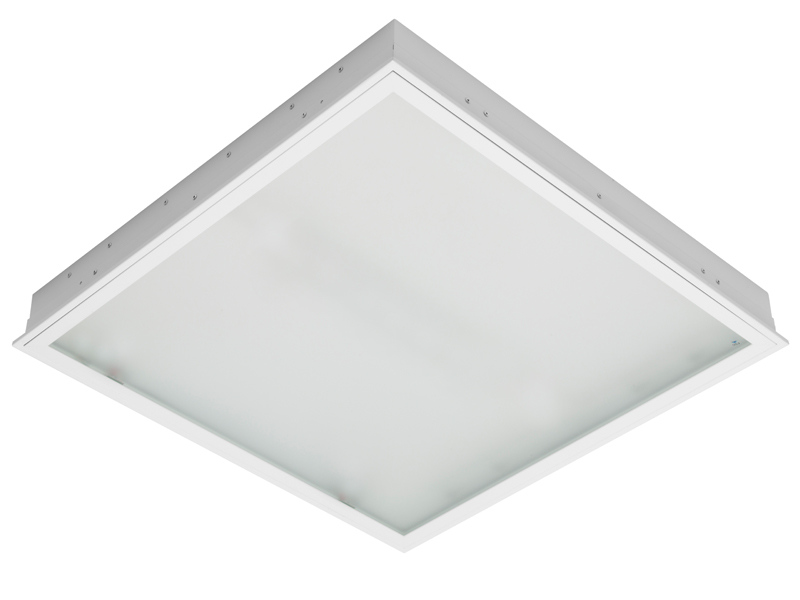

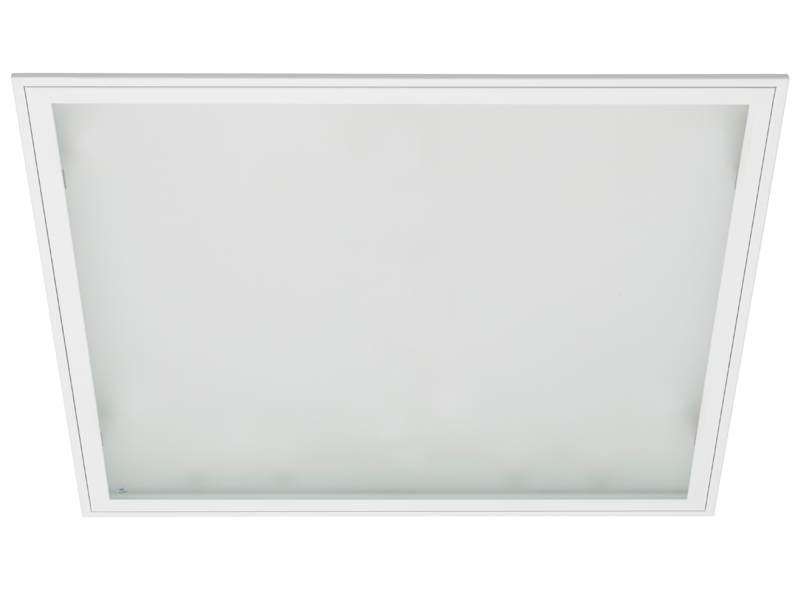

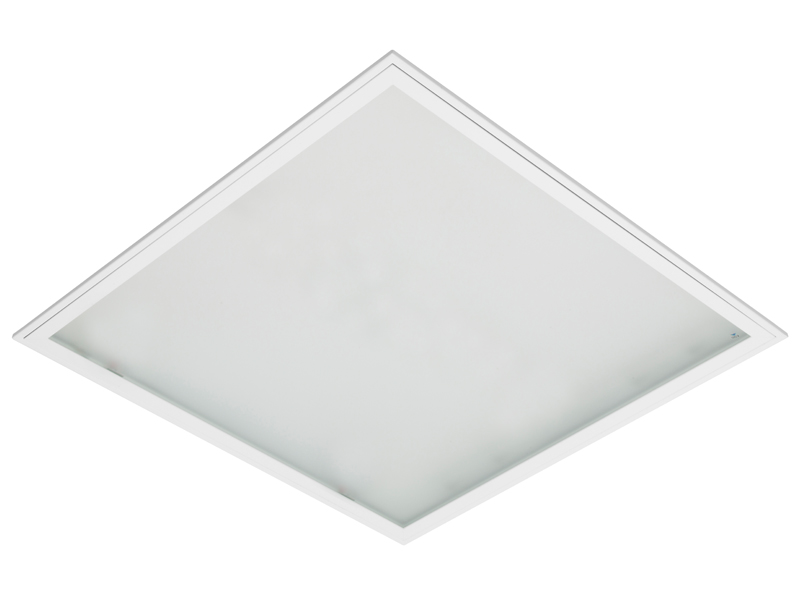

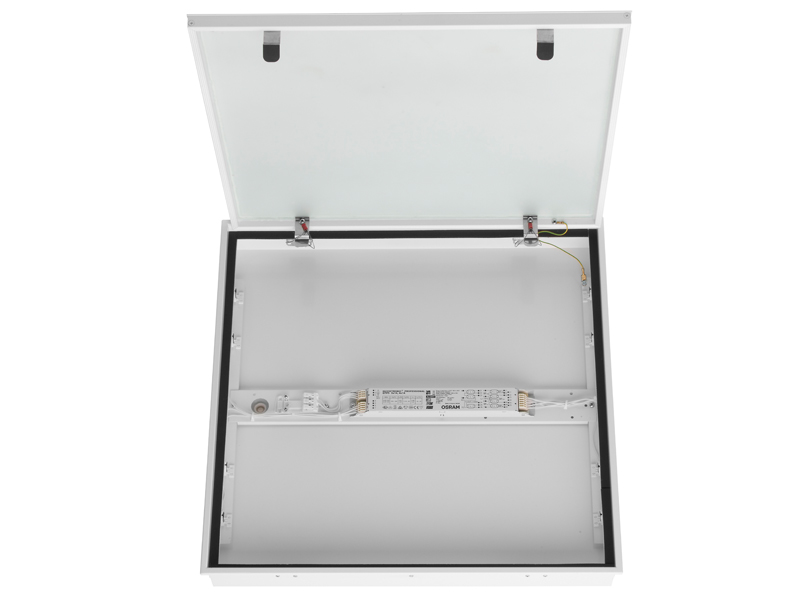

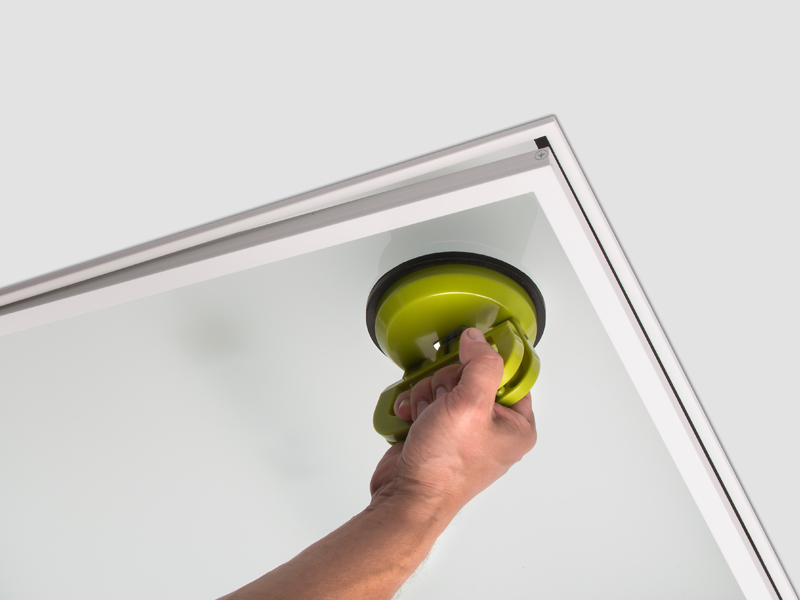

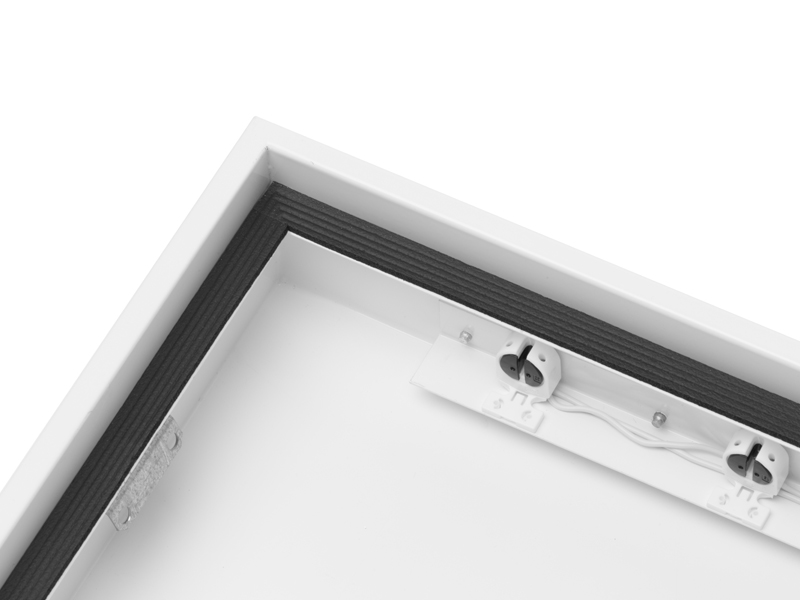

Recessed luminaire for ceilings with exposed grids, module size 600×600. Luminaire housing made of 0,6mm sheet steel, white powder coated finish (RAL9003). Luminaire housing is welded, completely enclosed without any openings. All internal components are mounted on gear tray, fixed to the housing bottom. Diffuser is fixed in aluminium frame, white powder coated finish (RAL9003). Frame is attached to the housing with four strong inox springs. The gap between the frame and housing is sealed with microporous gasket. Bottom side of diffuser have always smooth surface for easy maintenance and cleaning.

LampT5
Lamp holderG5
ClassI
Ingress protectionIP65
Weight8,3-14,3kg

SPECIFICATION





TypeA (mm)B (mm)H (mm)kg
BASIC IP65 DIF RT600 T5 4x14W595595908,3
BASIC IP65 DIF RT600 T5 4x24W595595908,3
BASIC IP65 DIF RT600 T5 3x14W595595908,3
BASIC IP65 DIF RT600 T5 3x24W595595908,3
BASIC IP65 DIF RT600 T5 4x28W11955959014,3
BASIC IP65 DIF RT600 T5 4x54W11955959014,3
BASIC IP65 DIF RT600 T5 3x28W11955959014,3
BASIC IP65 DIF RT600 T5 3x54W11955959014,3
BASIC IP65 DIF RT600 T5 2x28W1195295908,6
BASIC IP65 DIF RT600 T5 2x54W1195295908,6







CodeType
BP01RT600T54014BASIC IP65 DIF RT600 T5 4x14W
BP01RT600T54024BASIC IP65 DIF RT600 T5 4x24W
BP01RT600T53014BASIC IP65 DIF RT600 T5 3x14W
BP01RT600T53024BASIC IP65 DIF RT600 T5 3x24W
BP01RT600T54028BASIC IP65 DIF RT600 T5 4x28W
BP01RT600T54054BASIC IP65 DIF RT600 T5 4x54W
BP01RT600T53028BASIC IP65 DIF RT600 T5 3x28W
BP01RT600T53054BASIC IP65 DIF RT600 T5 3x54W
BP01RT600T52028BASIC IP65 DIF RT600 T5 2x28W
BP01RT600T52054BASIC IP65 DIF RT600 T5 2x54W






Control gear Optics Colour Lamp Emergency Accessories

ECG DO RAL 9003 14W/827 M 3h
DIM 1-10V     14W/830
DSI     14W/835
DALI     14W/840
      14W/865
      24W/827
      24W/830
      24W/835
      24W/840
      24W/865
      24W/880
      24W/940
      24W/965
      28W/827
      28W/830
      28W/835
      28W/840
      28W/865
      54W/827
      54W/830
      54W/835
      54W/840
      54W/865
      54W/880
      54W/940
      54W/965
