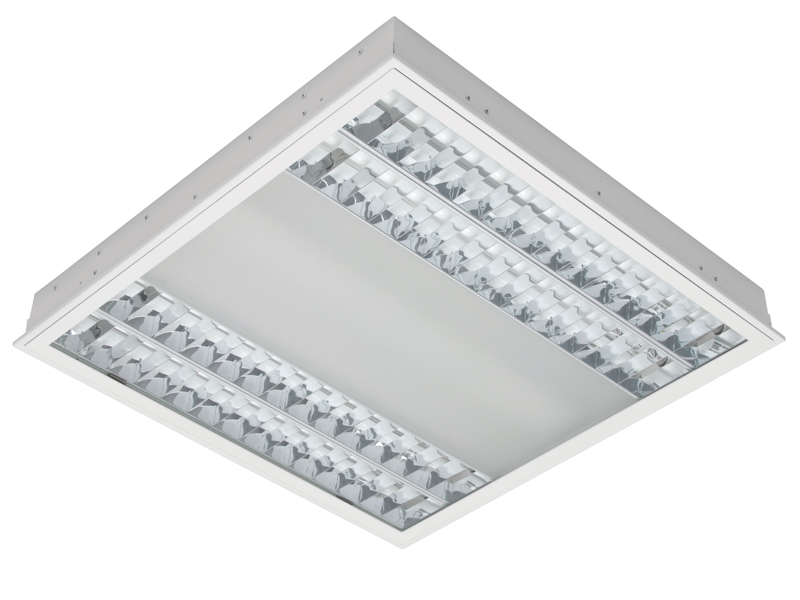

BASIC IP65 RT600 T5

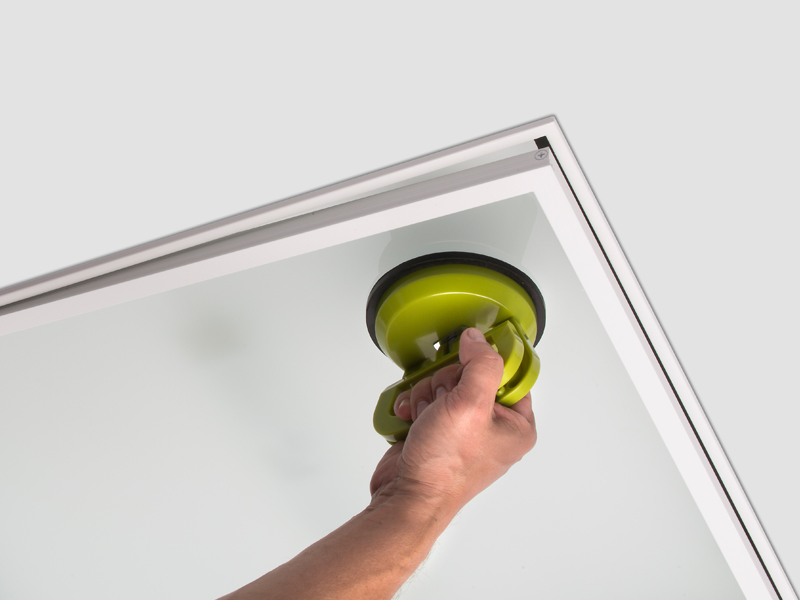

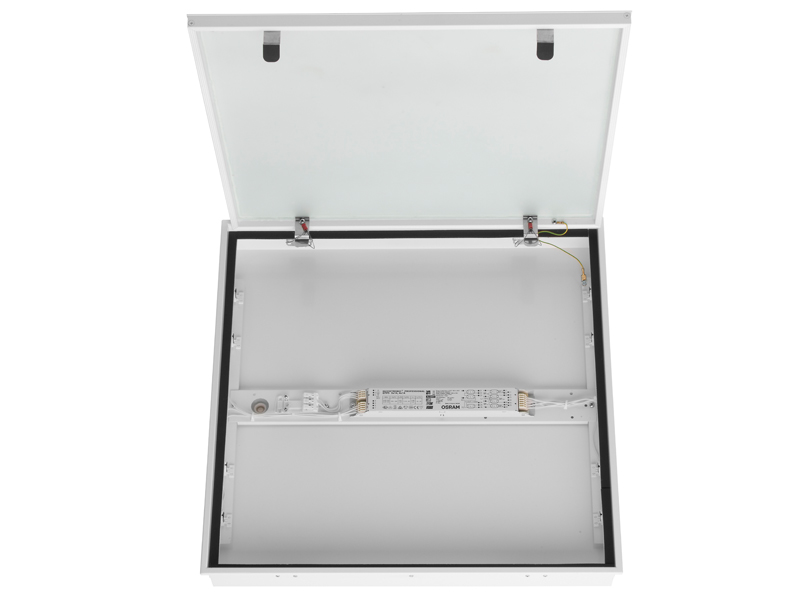

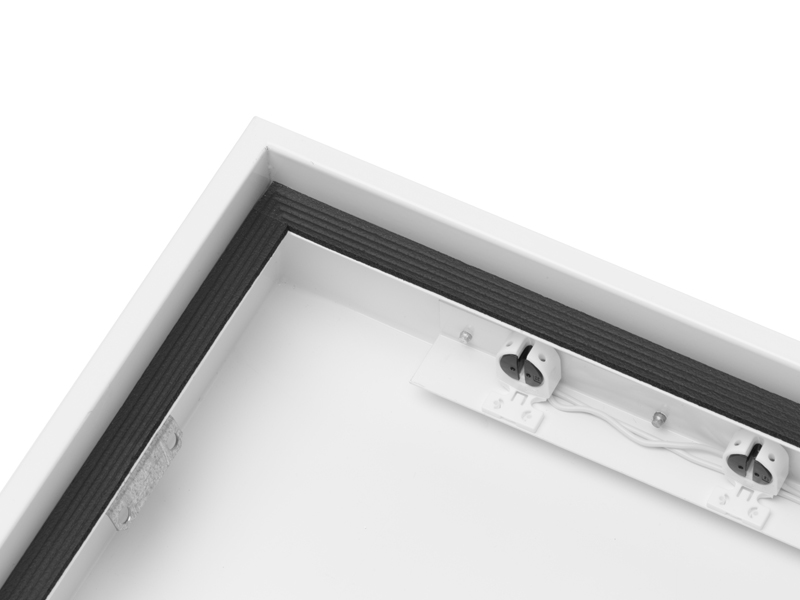

Recessed luminaire for ceilings with exposed grids, module size 600×600. Luminaire housing made of 0,6mm sheet steel, white powder coated finish (RAL9003). Luminaire housing is welded, completely enclosed without any openings. All internal components are mounted on gear tray, fixed to the housing bottom. Diffuser is fixed in aluminium frame, white powder coated finish (RAL9003). Frame is attached to the housing with 4 strong inox springs. The gap between the frame and housing is sealed with microporous gasket. Bottom side of diffuser have always smooth surface for easy maintenance and cleaning.
| Lamp | T5 |
| Lamp holder | G5 |
| Class | I |
| Ingress protection | IP65 |
| Weight | 83-14,3kg |
INSTALLATION TYPE
• RT600 – recessed luminaire, ceiling with exposed grids, module size 600×600
OPTICAL SYSTEM

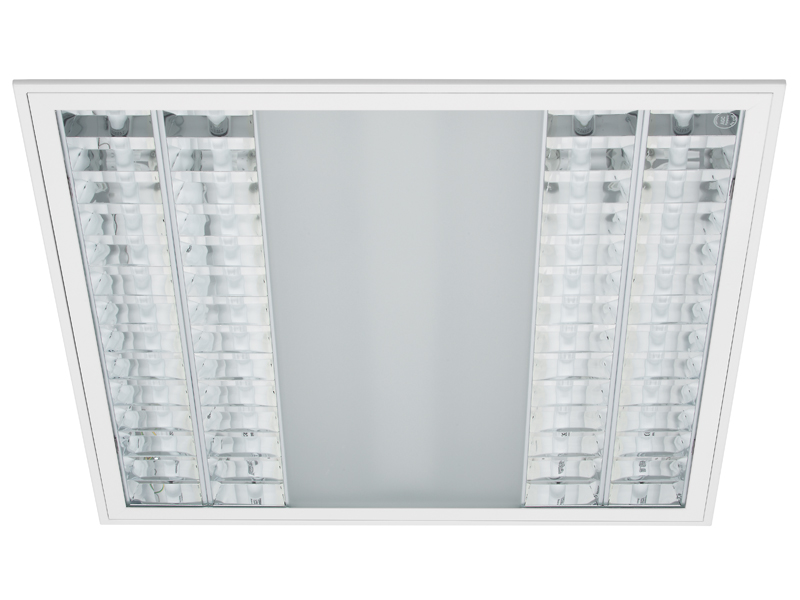

• PSL – transparent diffuser, made of 4mm hardened glass ESG (VSG ESG laminated hardened glass or PC on request)
in combination with polished parabolic louvre made of anodised aluminium
• PML – transparent diffuser, made of 4mm hardened glass ESG (VSG ESG laminated hardened glass or PC on request)
in combination with matt parabolic louvre made of anodised aluminium
ELECTRICAL EQUIPMENT
• electronic control gear for linear fluorescent lamps T5
• lampholder G5
• 3 or 5-pole screwless terminal block with strain relief, max. 2,5mm2
• cable entry equipped with IP65 rubber cable gland
OPTIONAL EQUIPMENT
• lamps included inside luminaire
• wiring with multi-watt electronic control gear
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (analogue, DSI, DALI)
• fast connector Wieland
SPECIFICATION
| Type | A (mm) | B (mm) | H (mm) | kg | |
| BASIC IP65 RT600 T5 4x14W | 595 | 595 | 90 | 8,3 | |
| BASIC IP65 RT600 T5 4x24W | 595 | 595 | 90 | 8,3 | |
| BASIC IP65 RT600 T5 3x14W | 595 | 595 | 90 | 8,3 | |
| BASIC IP65 RT600 T5 3x24W | 595 | 595 | 90 | 8,3 | |
| BASIC IP65 RT600 T5 4x28W | 1195 | 595 | 90 | 14,3 | |
| BASIC IP65 RT600 T5 4x54W | 1195 | 595 | 90 | 14,3 | |
| BASIC IP65 RT600 T5 3x28W | 1195 | 595 | 90 | 14,3 | |
| BASIC IP65 RT600 T5 3x54W | 1195 | 595 | 90 | 14,3 | |
| BASIC IP65 RT600 T5 2x28W | 1195 | 295 | 90 | 8,6 | |
| BASIC IP65 RT600 T5 2x54W | 1195 | 295 | 90 | 8,6 | |
| Code | Type |
| BP00RT600T54014 | BASIC IP65 RT600 T5 4x14W |
| BP00RT600T54024 | BASIC IP65 RT600 T5 4x24W |
| BP00RT600T53014 | BASIC IP65 RT600 T5 3x14W |
| BP00RT600T53024 | BASIC IP65 RT600 T5 3x24W |
| BP00RT600T54028 | BASIC IP65 RT600 T5 4x28W |
| BP00RT600T54054 | BASIC IP65 RT600 T5 4x54W |
| BP00RT600T53028 | BASIC IP65 RT600 T5 3x28W |
| BP00RT600T53054 | BASIC IP65 RT600 T5 3x54W |
| BP00RT600T52028 | BASIC IP65 RT600 T5 2x28W |
| BP00RT600T52054 | BASIC IP65 RT600 T5 2x54W |
| Control gear | Optics | Colour | Lamp | Emergency | Accessories | |||||
| ECG | PSL | RAL 9003 | 14W/827 | M 3h | ||||||
| DIM 1-10V | PML | 14W/830 | ||||||||
| DSI | 14W/835 | |||||||||
| DALI | 14W/840 | |||||||||
| 14W/865 | ||||||||||
| 24W/827 | ||||||||||
| 24W/830 | ||||||||||
| 24W/835 | ||||||||||
| 24W/840 | ||||||||||
| 24W/865 | ||||||||||
| 24W/880 | ||||||||||
| 24W/940 | ||||||||||
| 24W/965 | ||||||||||
| 28W/827 | ||||||||||
| 28W/830 | ||||||||||
| 28W/835 | ||||||||||
| 28W/840 | ||||||||||
| 28W/865 | ||||||||||
| 54W/827 | ||||||||||
| 54W/830 | ||||||||||
| 54W/835 | ||||||||||
| 54W/840 | ||||||||||
| 54W/865 | ||||||||||
| 54W/880 | ||||||||||
| 54W/940 | ||||||||||
| 54W/965 |
