BASIC LED 1x1L, 1x2L

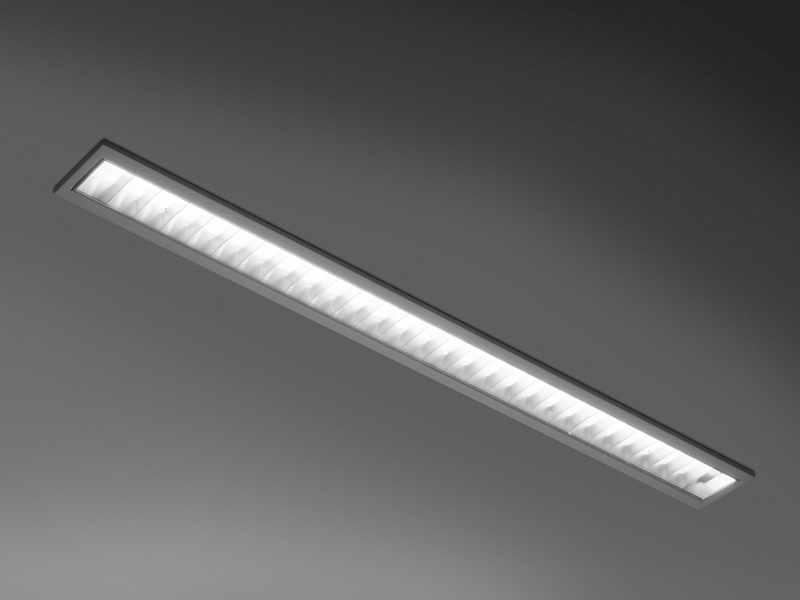

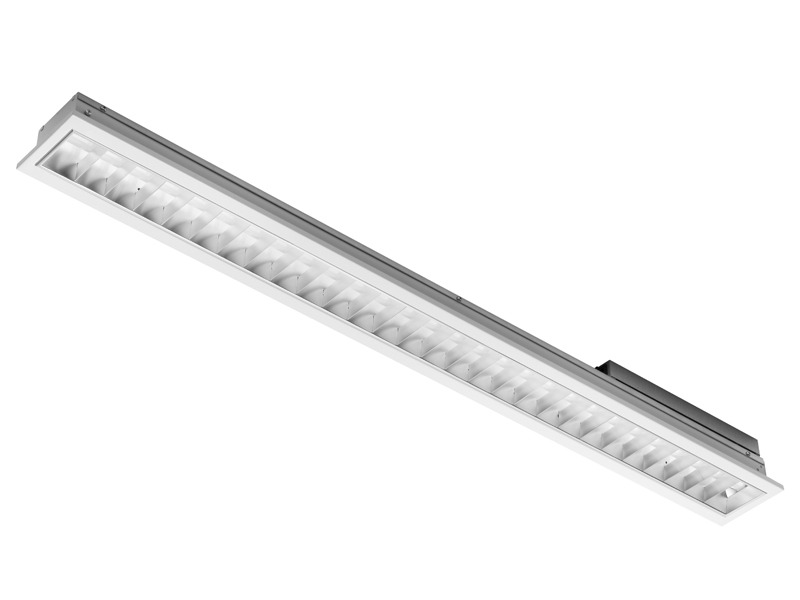

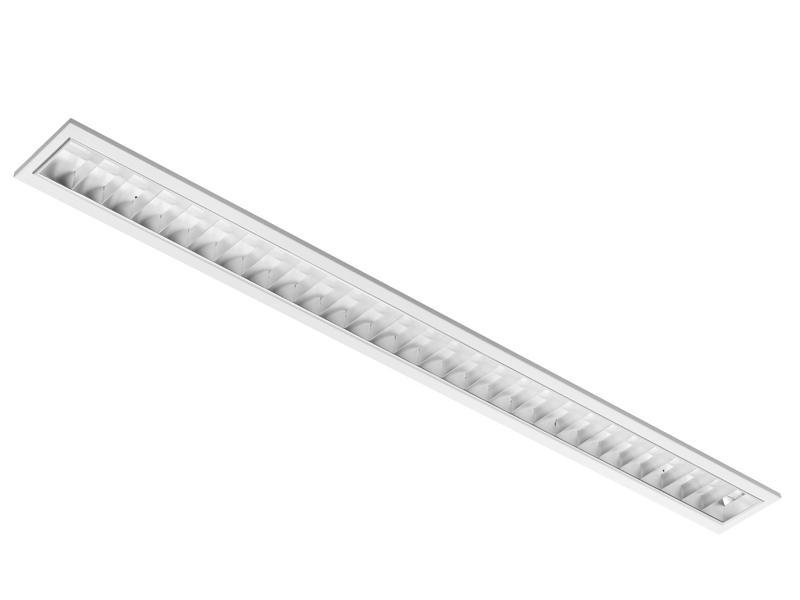

Recessed luminaire for ceilings with exposed grids, module size 600×600 or 625×625. Luminaire housing made of 0,6mm sheet steel, white powder coated finish (RAL9003). For better heat dissipation, more powerful versions are using aluminum mounting plate under LED modules – this ensures long life of LED chips 50.000hod. The louvre is fixed to housing with quick clamping springs, tool free.
| Lamp | LED |
| Cooling | PASSIVE |
| Class | I |
| Ingress protection | IP40 |
| Weight | 2,2-2,8kg |
INSTALLATION TYPE
• RT600 – recessed luminaire, ceiling with exposed grids, module size 600×600
• RT625 – recessed luminaire, ceiling with exposed grids, module size 625×625
• R – recessed luminaire, plasterboard ceiling
• installation into another ceiling types on request
OPTICAL SYSTEM

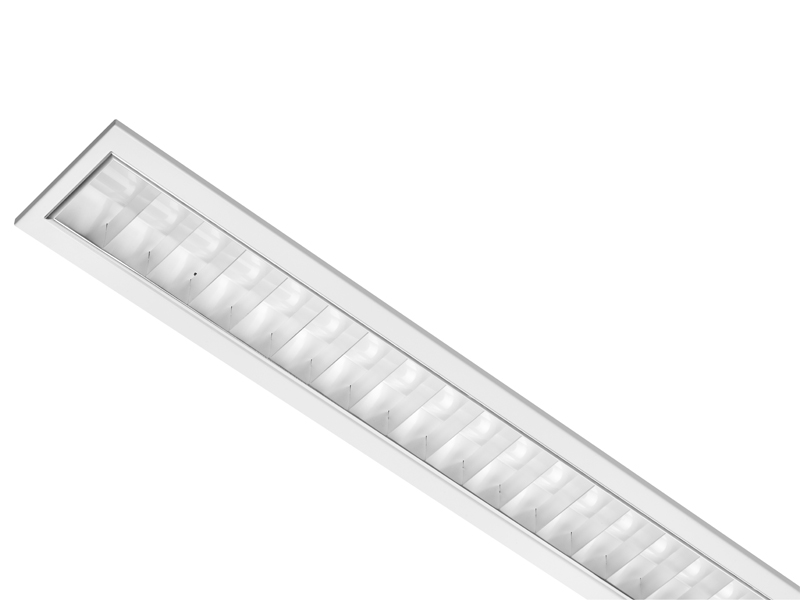

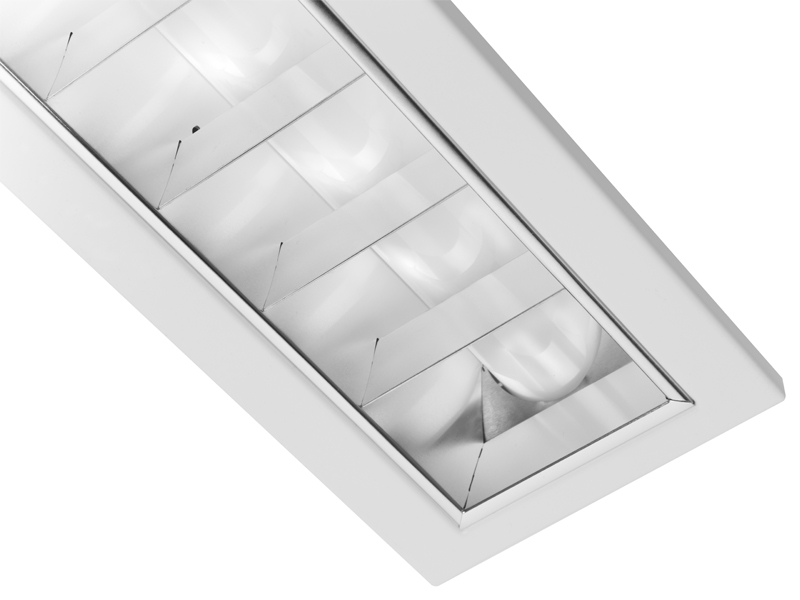

• PML (parabolic matt louvre) – matt, anodized, aluminium, double parabolic louvre with glare prevention
• PSL (parabolic specular louvre) – polished, anodized, aluminium, double parabolic louvre with glare prevention
Direct light distribution. The luminaire is suitable for workstations with monitors: luminance of light emitting area is in accordance with EN 12464-1: Light and lighting – lighting of indoor workplaces. Luminance of light emitting area do not exceed the value of 1500 cd/m2 above the limit angle 65°, value UGR<19.
ELECTRICAL EQUIPMENT

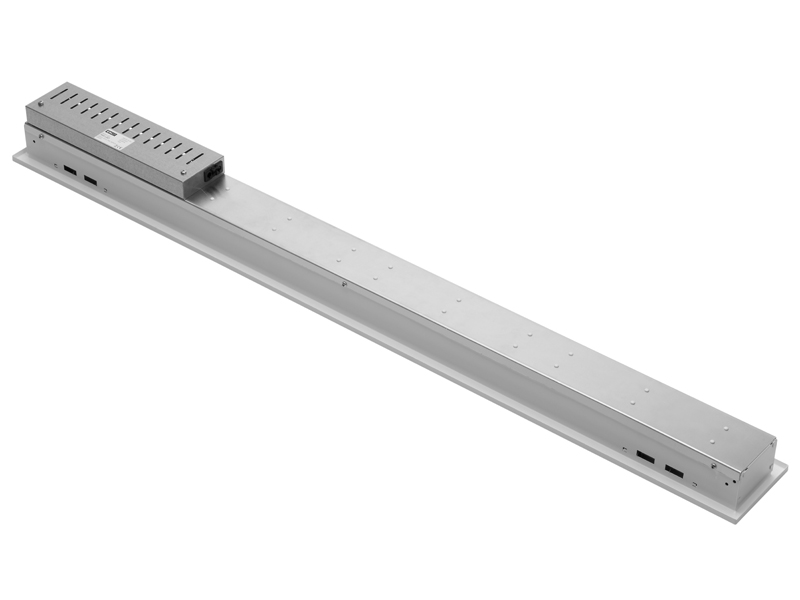

• linear LED modules fixed at bottom luminaire housing, by more powerful versions LED modules are mounted on aluminium heatsink
• electronic LED driver
• terminal block with strain relief, max. 2,5mm2
OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (DSI, DALI)
• various colour finishing
• fast connectors (Wieland, Wago, Isodom)
SPECIFICATION
| Type* | System power (W) | A (mm) | B (mm) | H (mm) | kg |
| BASIC LED 1x1L RT600 3875lm | 31 | 1195 | 106 | 91 | 2,2 |
| BASIC LED 1x1L RT600 4750lm | 38 | 1495 | 106 | 91 | 2,4 |
| BASIC LED 1x2L RT600 6625lm | 53 | 1195 | 295 | 70 | 2,6 |
| BASIC LED 1x2L RT600 8250lm | 66 | 1495 | 295 | 70 | 2,8 |
*net lumen output of the luminaire by 4000K
| Code | Type |
| BB10RT60LE03875 | BASIC LED 1x1L RT600 3875lm |
| BB10RT60LE04750 | BASIC LED 1x1L RT600 4750lm |
| BB20RT60LE06625 | BASIC LED 1x2L RT600 6625lm |
| BB20RT60LE08250 | BASIC LED 1x2L RT600 8250lm |
| CCT | Optics | CRI | Control gear | Colour | Accessories | |||||
| 3000K | MIRO5 + DIF | 80 | ECG | RAL 9003 | M 1h | |||||
| 4000K | MIRO4 + DIF | DIM 1-10V | M 3h | |||||||
| 6500K | DSI | Wieland | ||||||||
| DALI | Isodom |
