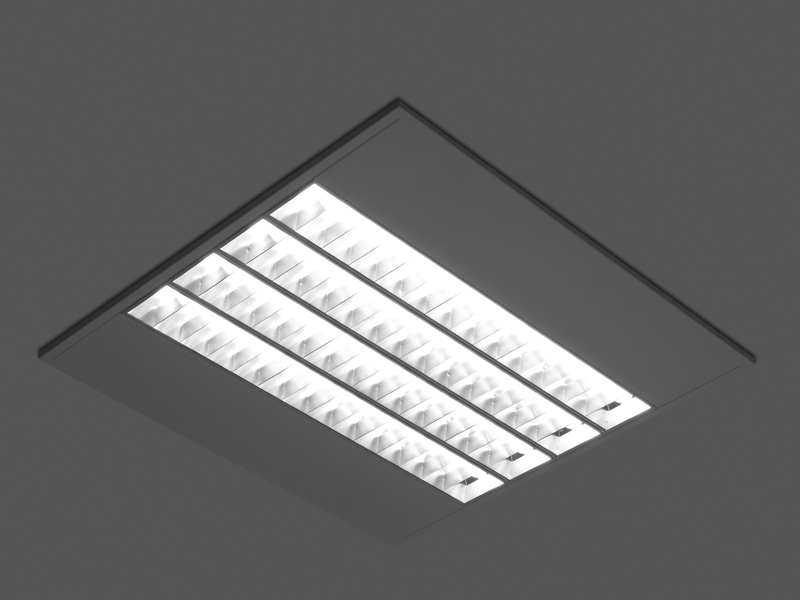

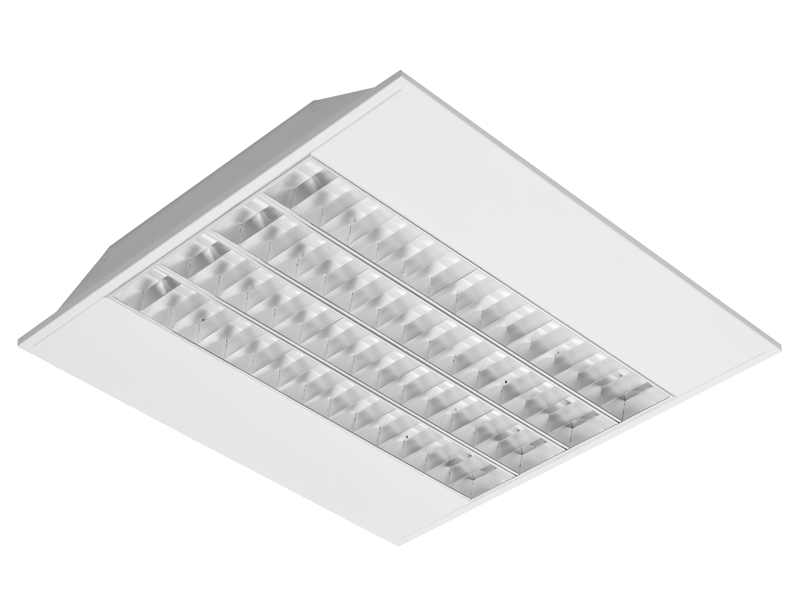

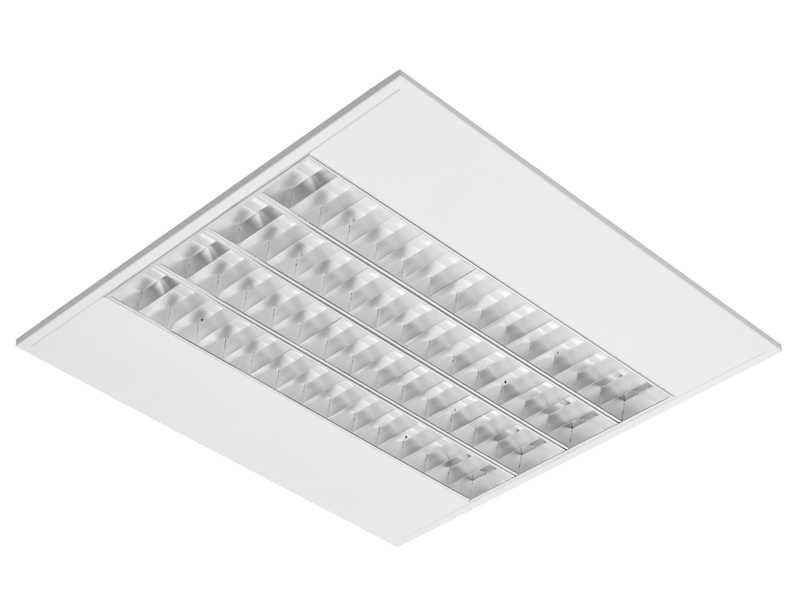

BASIC LED 1x3L, 1x4L

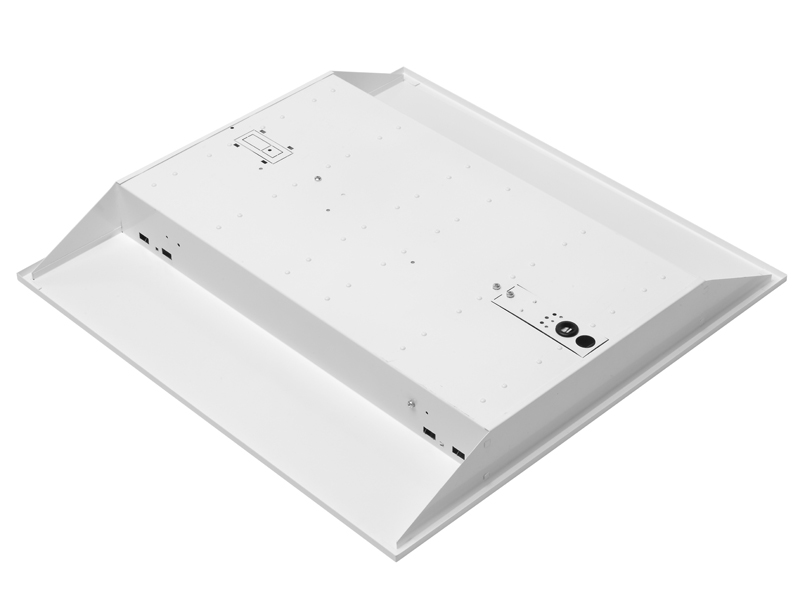

Recessed luminaire for ceilings with exposed grids, module size 600×600 or 625×625. Luminaire housing made of 0,6mm sheet steel, white powder coated finish (RAL9003). For better heat dissipation, more powerful versions are using aluminum mounting plate under LED modules – this ensures long life of LED chips 50.000hod. The louvre is fixed to housing with quick clamping springs, tool free.
| Lamp | LED |
| Cooling | PASSIVE |
| Class | I |
| Ingress protection | IP40 |
| Weight | 2-10 4kg |
INSTALLATION TYPE
• RT600 – recessed luminaire, ceiling with exposed grids, module size 600×600
• RT625 – recessed luminaire, ceiling with exposed grids, module size 625×625
• R – recessed luminaire, plasterboard ceiling
• installation into another ceiling types on request
OPTICAL SYSTEM

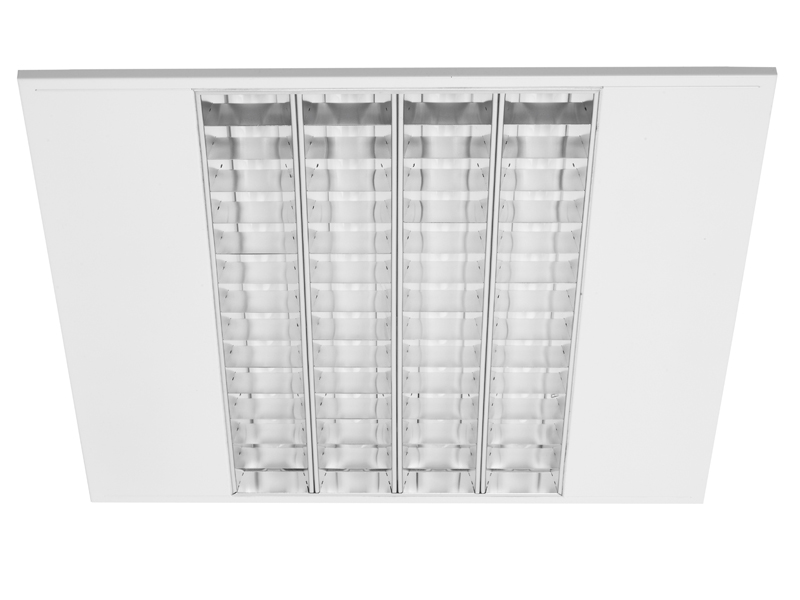

• PML (parabolic matt louvre) – matt, anodized, aluminium, double parabolic louvre with glare prevention
• PSL (parabolic specular louvre) – polished, anodized, aluminium, double parabolic louvre with glare prevention
Direct light distribution. The luminaire is suitable for workstations with monitors: luminance of light emitting area is in accordance with EN 12464-1: Light and lighting – lighting of indoor workplaces. Luminance of light emitting area do not exceed the value of 1500 cd/m2 above the limit angle 65°, value UGR<19.
ELECTRICAL EQUIPMENT
• linear LED modules fixed at bottom luminaire housing, by more powerful versions LED modules are mounted on aluminium heatsink
• electronic LED driver
• terminal block with strain relief, max. 2,5mm2
OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (DSI, DALI)
• various colour finishing
• fast connectors (Wieland, Wago)
SPECIFICATION
| TYPE * | System power (W) | Equivalent | A (mm) | B (mm) | H (mm) | kg |
| BASIC LED 1x3L RT600 2750lm | 23 | 3x14W T5 | 595 | 595 | 67 | 2,4 |
| BASIC LED 1x3L RT600 4050lm | 33 | 3x24W T5 | 595 | 595 | 67 | 2,8 |
| BASIC LED 1x4L RT600 3600lm | 30 | 4x14W T5 | 595 | 595 | 67 | 2,6 |
| BASIC LED 1x4L RT600 5400lm | 44 | 4x24W T5 | 595 | 595 | 67 | 3 |
*net lumen output of the luminaire
| Code | Type |
| BB30RT60LE02750 | BASIC LED1x3L RT600 2750lm |
| BB30RT60LE04050 | BASIC LED1x3L RT600 4050lm |
| BB40RT60LE03600 | BASIC LED1x4L RT600 3600lm |
| BB40RT60LE05400 | BASIC LED1x4L RT600 5400lm |
| CCT | Optics | CRI | Control gear | Colour | Accessories | |||||
| 3000K | MIRO5 + DIF | 80 | ECG | M 1h | ||||||
| 4000K | MIRO4 + DIF | DIM 1-10V | M 3h | |||||||
| 6500K | DSI | Wieland | ||||||||
| DALI | Isodom | |||||||||
