BASIC LED IP65 DIF

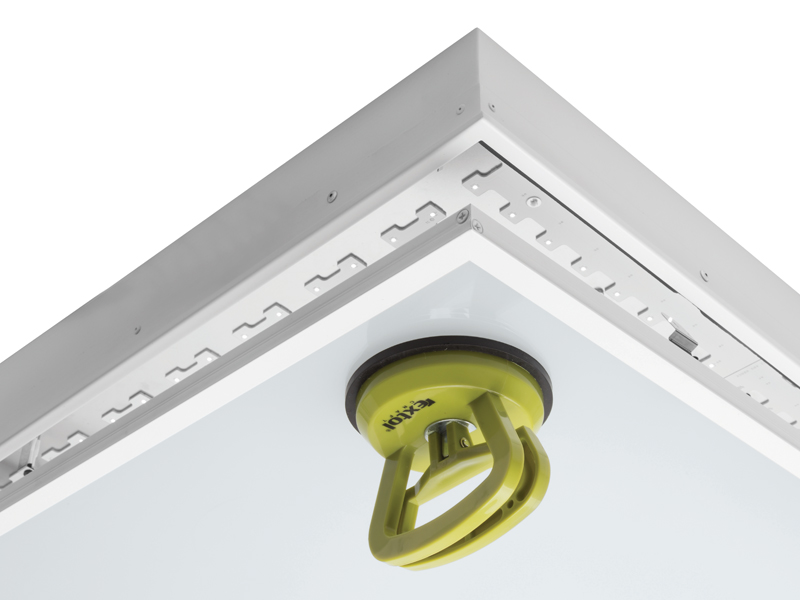

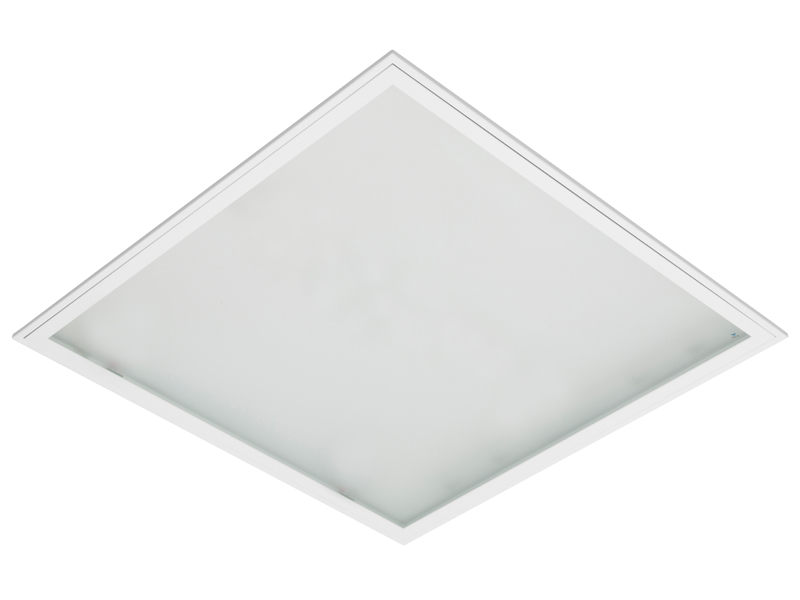

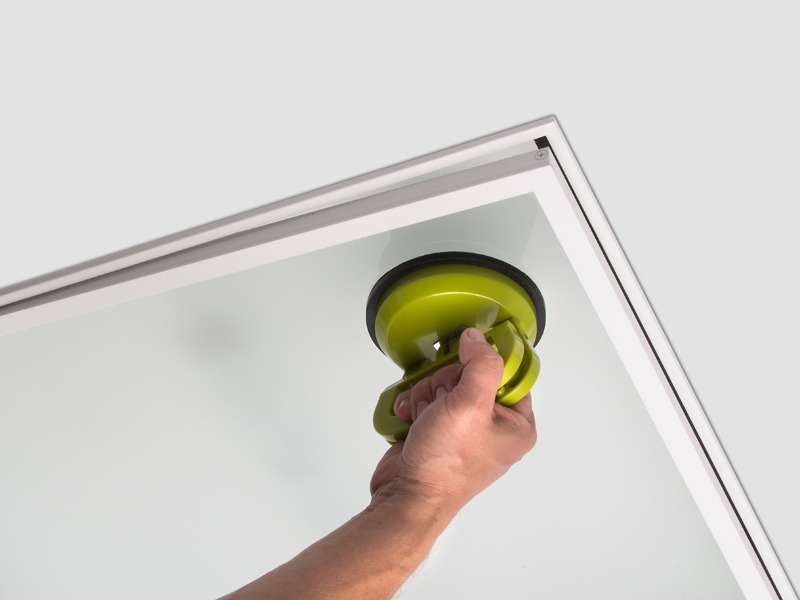

Recessed luminaire for ceilings with exposed grids, module size 600×600. Luminaire housing made of 0,6mm sheet steel, white powder coated finish (RAL9003). Luminaire housing is welded, completely enclosed without any openings. All internal components are mounted on gear tray, fixed to the housing bottom. Diffuser is fixed in aluminium frame, white powder coated finish (RAL9003). Frame is attached to the housing with 4 strong inox springs. The gap between the frame and housing is sealed with microporous gasket. Bottom side of diffuser have always smooth surface for easy maintenance and cleaning.

Lamp	LED
Cooling	PASSIVE
Class	I
Ingress protection	IP65
Weight	8,3-14,3kg

BASIC IP en (2MB)

INSTALLATION TYPE
• RT600 – recessed luminaire, ceiling with exposed grids, module size 600×600
• SUR – surface mounted version

OPTICAL SYSTEM
• DO – transparent diffuser, made of 4mm hardened glass ESG (VSG laminated hardened glass on request)
in combination with opal diffusion layer made of PC
• DMP – transparent diffuser, made of 4mm hardened glass ESG (VSG laminated hardened glass on request)
in combination with microprismatic diffuser made of PMMA

ELECTRICAL EQUIPMENT
• area LED modules mounted on aluminium gear tray, fixed to the bottom of luminaire housing
• electronic LED driver
• 3 or 5-pole screwless terminal block with strain relief, max. 2,5mm2
• cable entry equipped with IP65 rubber cable gland
• pressure equalisation system

OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (analogue, DSI, DALI)
• ESG VSG (laminated hardened glass) bottom cover

SPECIFICATION

Type*	System power (W)	Equivalent	A (mm)	B (mm)	kg
BASIC LED IP65 DIF RT600 4300lm	41	4x14W T5	595	595	8,3

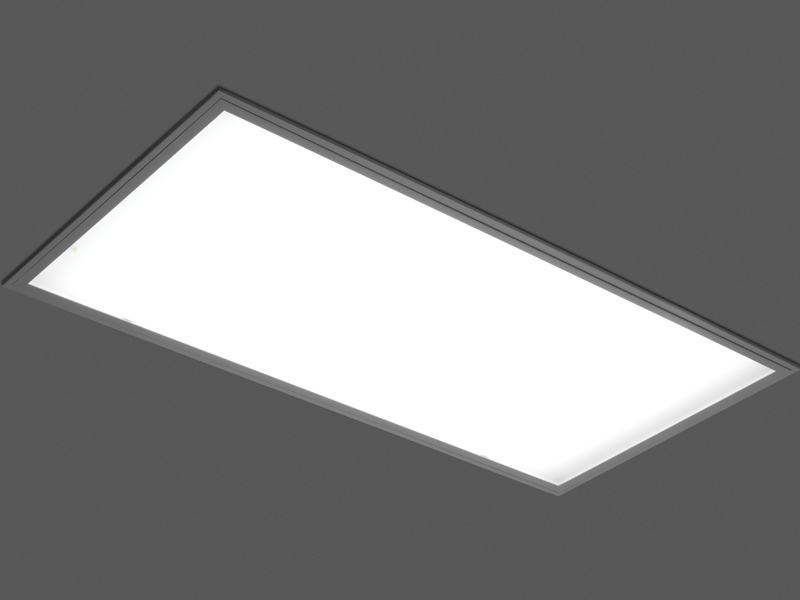

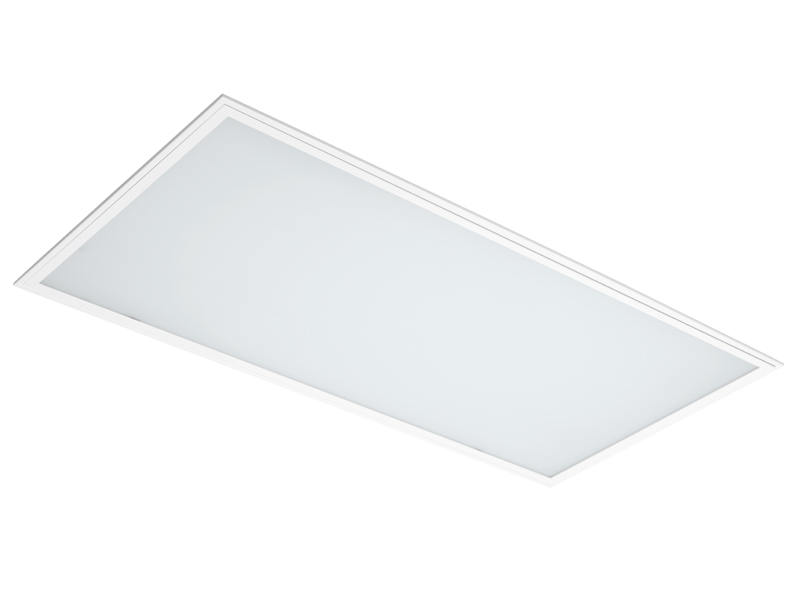

BASIC LED IP65 12×3 DIF RT600 4300lm	41	2x28W T5	1195	295	8,6
BASIC LED IP65 12×6 DIF RT600 8600lm	82	4x28W T5	1195	595	14,3

^{*let lumen output of the liminaire by 4000K}

Code	Type
BP00RT60LE04300	BASIC LED IP65 DIF RT600 4300lm
BP10RT60LE04300	BASIC LED IP65 12×3 DIF RT600 4300lm
BP20RT60LE08600	BASIC LED IP65 12×6 DIF RT600 8600lm
