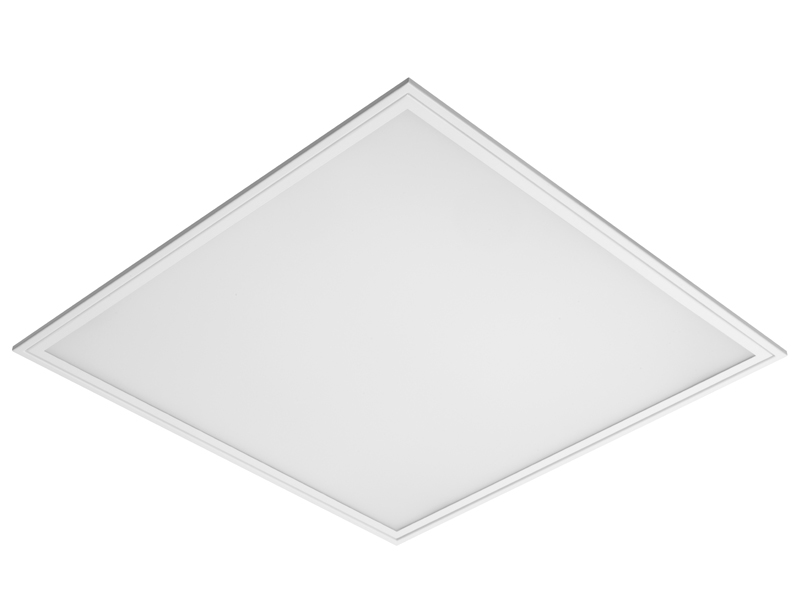

BASIC LED RT600

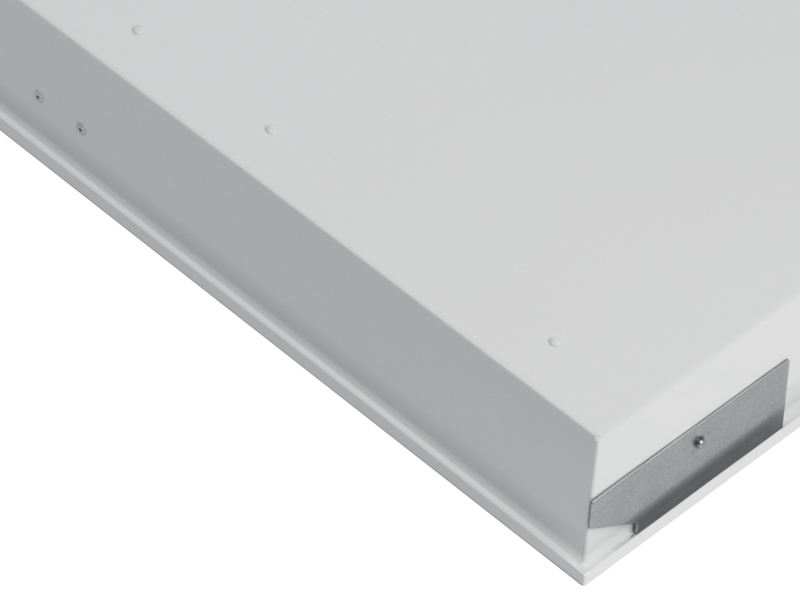

Recessed luminaire for ceilings with exposed grids, module size 600×600 or 625×625. Luminaire housing and frame made of 0,6mm sheet steel, white powder coated finish (RAL9003). Luminaire housing serve as passive heat sink for LED modules. Frame attached to the housing with 4 fast-mounting springs, tool free.
| Lamp | LED |
| Cooling | PASSIVE |
| Class | I |
| Ingress protection | IP40 |
| Weight | 2-10,4kg |
INSTALLATION TYPE
• RT600 – recessed luminaire, ceiling with exposed grids, module size 600×600
• RT625 – recessed luminaire, ceiling with exposed grids, module size 625×625
• R – recessed luminaire, plasterboard ceiling
OPTICAL SYSTEM

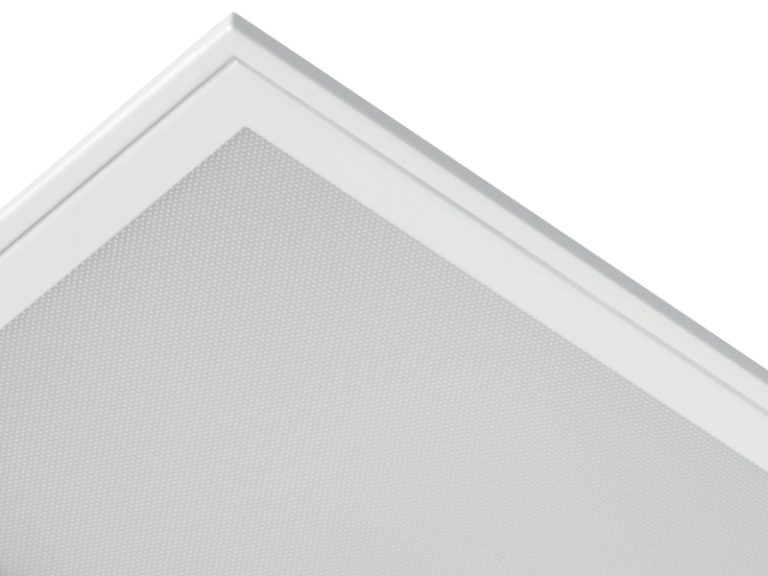

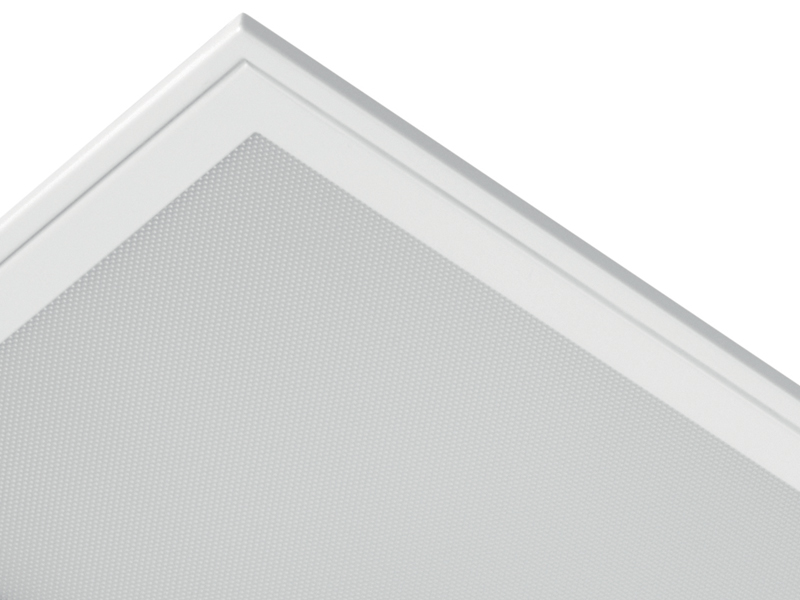

• DMP – microprismatic diffuser made of PMMA
• DO – opal diffuser made of PMMA
ELECTRICAL EQUIPMENT

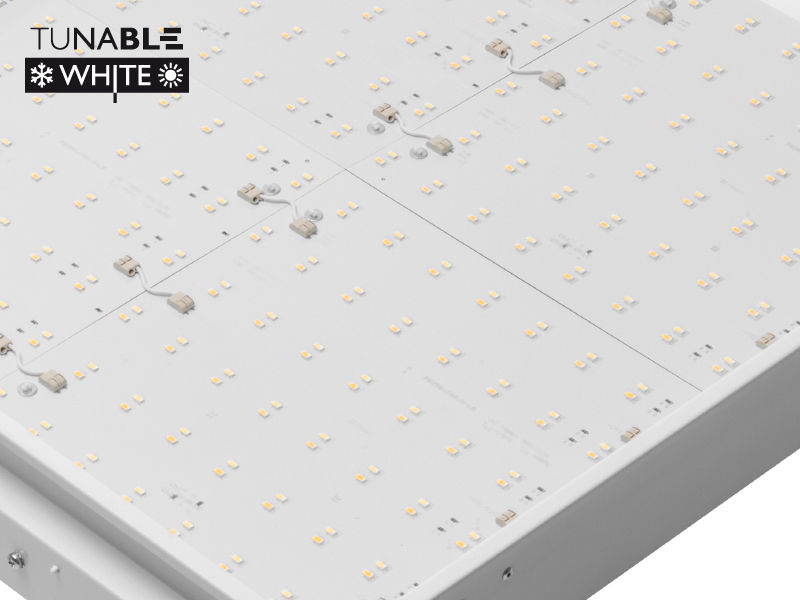

• 4xLED module fixed at the bottom of luminaire housing
• electronic LED driver
• terminal block with strain relief, max. 2,5mm2
OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (DSI, DALI)
• various colour finishing
• fast connectors (Wieland, Wago, Isodom)
SPECIFICATION
| Type * | System power (W) | Equivalent | A (mm) | B (mm) | H (mm) | kg |
| BASIC LED RT600 1300lm | 12 | 2x18W TC-DEL | 300 | 300 | 78 | 2 |
| BASIC LED RT600 3750lm | 33 | 4x14W T5 | 595 | 595 | 78 | 5,2 |
| BASIC LED RT600 4500lm | 40 | 3x24W T5 | 595 | 595 | 78 | 5,2 |
| BASIC LED RT600 5200lm | 48 | 4x24W T5 | 595 | 595 | 78 | 5,2 |

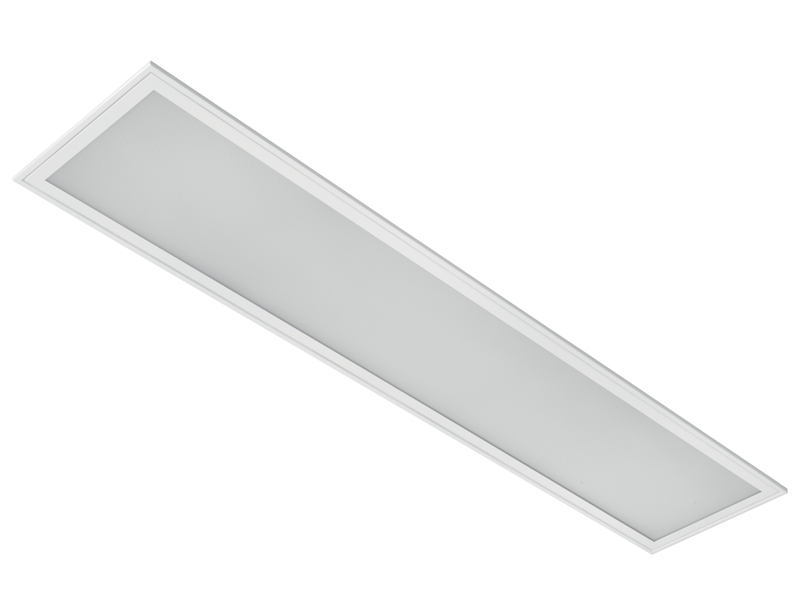

| BASIC LED 12×3 RT600 3750lm | 33 | 2x28W T5 | 1195 | 295 | 78 | 5,2 |
| BASIC LED 12×3 RT600 5200lm | 48 | 2x54W T5 | 1195 | 295 | 78 | 5,2 |
| BASIC LED 12×6 RT600 7500lm | 66 | 4x28W T5 | 1195 | 595 | 78 | 10,4 |
| BASIC LED 12×6 RT600 9000lm | 80 | 3x54W T5 | 1195 | 595 | 78 | 10,4 |
| BASIC LED 12×6 RT600 10400lm | 96 | 4x54W T5 | 1195 | 595 | 78 | 10,4 |
* net lumen output of the luminaire by 4000K, for DO (opal difffuser)
| Code | Type |
| BL00RT60LE01300 | BASIC LED RT600 1300lm |
| BL00RT60LE03750 | BASIC LED RT600 3750lm |
| BL00RT60LE04500 | BASIC LED RT600 4500lm |
| BL00RT60LE05200 | BASIC LED RT600 5200lm |
| BL20RT60LE03750 | BASIC LED 12×3 RT600 3750lm |
| BL20RT60LE05200 | BASIC LED 12×3 RT600 5200lm |
| BL40RT60LE07500 | BASIC LED 12×6 RT600 7500lm |
| BL40RT60LE09000 | BASIC LED 12×6 RT600 9000lm |
| BL40RT60LE10400 | BASIC LED 12×6 RT600 10400lm |
| CCT | Optics | CRI | Control gear | Colour | Accessorites | |||||
| Tunable White (3000K-6000K) | DMP | 80 | ECG | M 1h | ||||||
| 3000K | DO | 90 | DIM 1-10V | M 3h | ||||||
| 4000K | DSI | Wieland | ||||||||
| 5000K | DALI | Isodom | ||||||||
| RGB |
