BOXY LINE DIR
Luminaire for T5 fluorescent lamps with direct light distribution. Luminaire is equipped with double parabolic louvre made of anodised aluminium, suitable for VDU workstations (max. luminance of light emitting area is in accordance with EN 12464-1). Luminaire housing made of 0,6mm sheet steel, white powder coated finish (RAL9003). Another material of louvre or another surface finish available on request. Luminaire is designed for direct mounting on solid surface or for suspended installation.

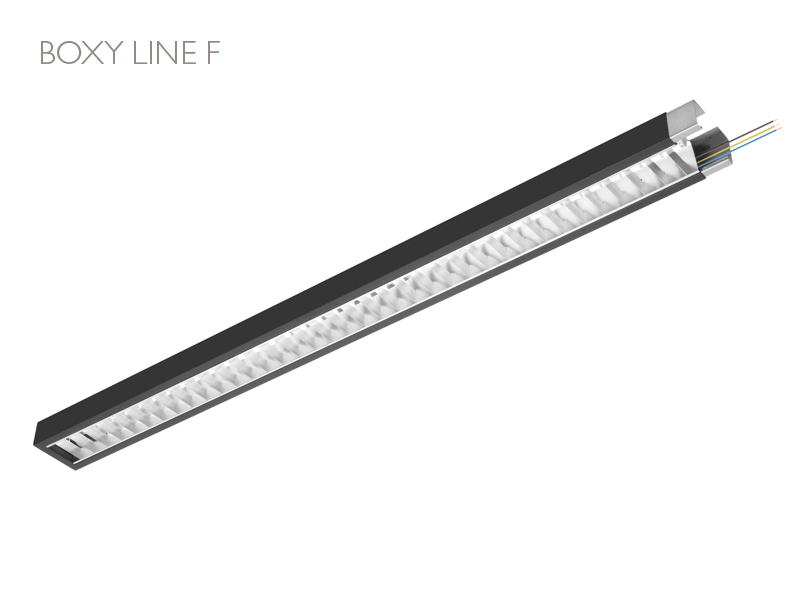

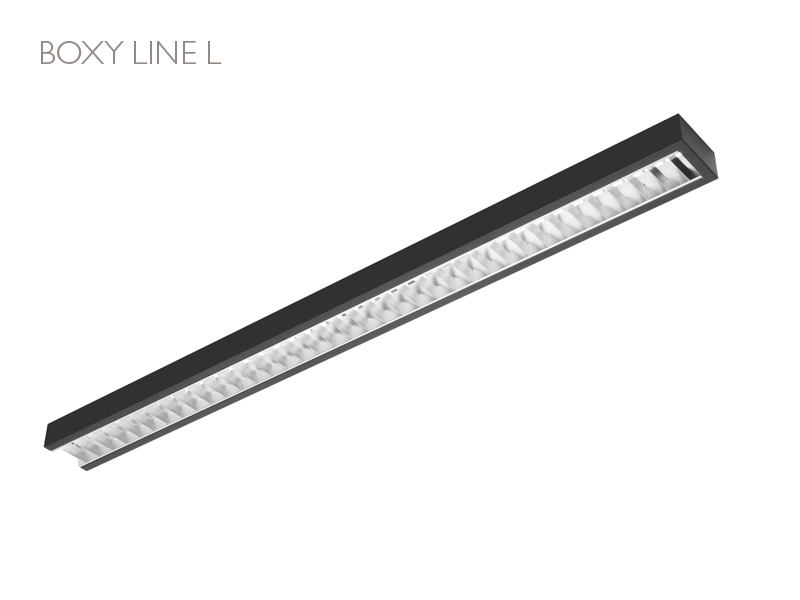

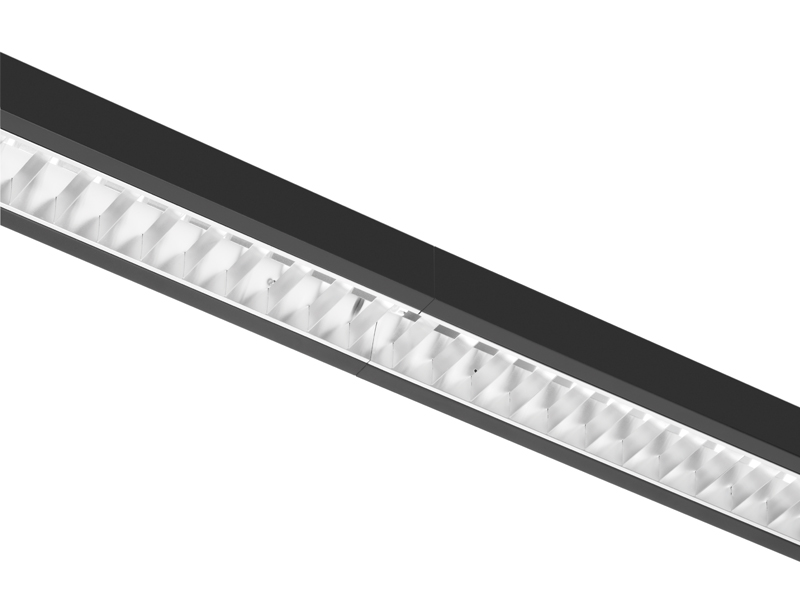

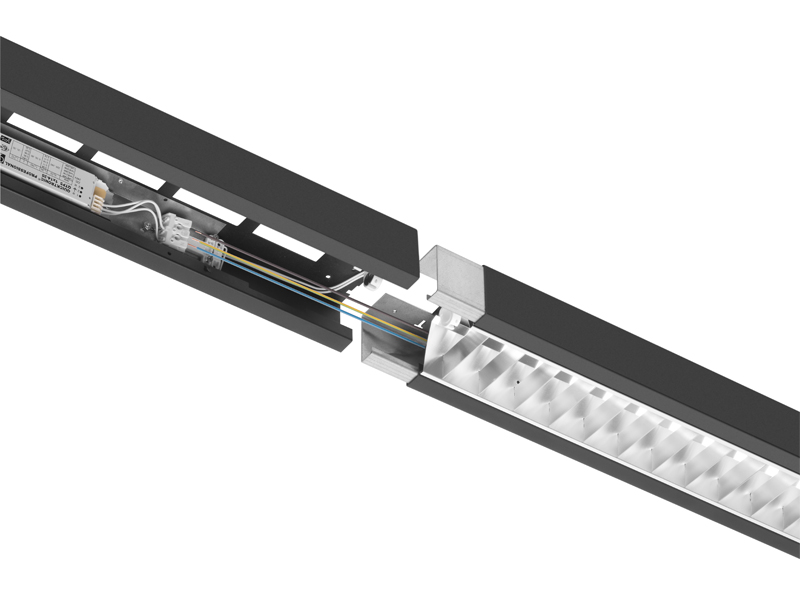

Individual luminaires BOXY LINE are joined together by using of sheet steel connecting pieces, inserted inside luminaire profiles. Lighting row BOXY LINE consists of the first F (first) and the last L (last) piece . Between first and last, T (through) pieces are inserted. Through wiring 3×1,5mm2 or 5×1,5mm2 for quick interconnection of single luminaires is integral part of F and T pieces.
| Lamp | LED |
| Lamp holder | G5 |
| Class | I |
| Ingress protection | IP40 |
| Weight | 2-10 4kg |
INSTALLATION TYPE
• SUR – mounting on solid surfaces
• SUS – suspended luminaire
OPTICAL SYSTEM

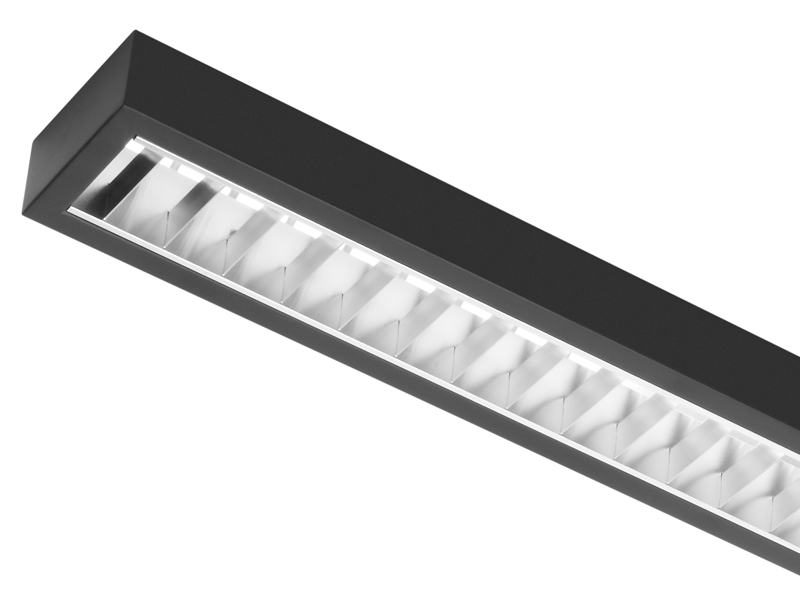

• PSL (parabolic specular louvre) – polished, anodized aluminium, double parabolic louvre with glare prevention
• PML (parabolic matt louvre) – matt, anodized aluminium, double parabolic louvre
• louvre attached to the housing with fast-mounting springs, tool free lamp replacement.
ELECTRICAL EQUIPMENT
• electronic control gear for linear fluorescent lamps T5
• lamp holders G5
• 3 or 5-pole screwless terminal block with strain relief, max. 2,5mm2
• cable opening entry completed with cable gland
• possibility of mounting into one continuous lighting row
OPTIONAL EQUIPMENT
• including lamps
• wired with multi-watt control gear
• wired with emergency unit (1 or 3h)
• wired with dimmable electronic control gear (DIM 1-10V, DSI, DALI)
• various colour finishing
SPECIFICATION
| Type | A (mm) | B (mm) | H (mm) | X (mm) | kg |
| BOXY LINE DIR F T5 1×28/54W | 1190 | 120 | 58 | 1150 | 2,5 |
| BOXY LINE DIR L T5 1×28/54W | 1190 | 120 | 58 | 1150 | 2,1 |
| BOXY LINE DIR T T5 1×28/54W | 1170 | 120 | 58 | 1170 | 2,5 |
| BOXY LINE DIR F T5 1×35/49/80W | 1490 | 120 | 58 | 1450 | 3,4 |
| BOXY LINE DIR L T5 1×35/49/80W | 1490 | 120 | 58 | 1450 | 3 |
| BOXY LINE DIR T T5 1×35/49/80W | 1470 | 120 | 58 | 1470 | 3,4 |
| BOXY LINE DIR F T5 2×28/54W | 1190 | 120 | 58 | 1150 | 2,5 |
| BOXY LINE DIR L T5 2×28/54W | 1190 | 120 | 58 | 1150 | 2,1 |
| BOXY LINE DIR T T5 2×28/54W | 1170 | 120 | 58 | 1170 | 2,5 |
| BOXY LINE DIR F T5 2×35/49/80W | 1490 | 120 | 58 | 1450 | 3,4 |
| BOXY LINE DIR L T5 2×35/49/80W | 1490 | 120 | 58 | 1450 | 3 |
| BOXY LINE DIR T T5 2×35/49/80W | 1470 | 120 | 58 | 1470 | 3,4 |
| Code | Type |
| BOL0F0000T51028 | BOXY LINE DIR F T5 1x28W |
| BOL0L0000T51028 | BOXY LINE DIR L T5 1x28W |
| BOL0T0000T51028 | BOXY LINE DIR T T5 1x28W |
| BOL0F0000T51054 | BOXY LINE DIR F T5 1x54W |
| BOL0L0000T51054 | BOXY LINE DIR L T5 1x54W |
| BOL0T0000T51054 | BOXY LINE DIR T T5 1x54W |
| BOL0F0000T51035 | BOXY LINE DIR F T5 1x35W |
| BOL0L0000T51035 | BOXY LINE DIR L T5 1x35W |
| BOL0T0000T51035 | BOXY LINE DIR T T5 1x35W |
| BOL0F0000T51049 | BOXY LINE DIR F T5 1x49W |
| BOL0L0000T51049 | BOXY LINE DIR L T5 1x49W |
| BOL0T0000T51049 | BOXY LINE DIR T T5 1x49W |
| BOL0F0000T51080 | BOXY LINE DIR F T5 1x80W |
| BOL0L0000T51080 | BOXY LINE DIR L T5 1x80W |
| BOL0T0000T51080 | BOXY LINE DIR T T5 1x80W |
| BOL0F0000T52028 | BOXY LINE DIR F T5 2x28W |
| BOL0L0000T52028 | BOXY LINE DIR L T5 2x28W |
| BOL0T0000T52028 | BOXY LINE DIR T T5 2x28W |
| BOL0F0000T52054 | BOXY LINE DIR F T5 2x54W |
| BOL0L0000T52054 | BOXY LINE DIR L T5 2x54W |
| BOL0T0000T52054 | BOXY LINE DIR T T5 2x54W |
| BOL0F0000T52035 | BOXY LINE DIR F T5 2x35W |
| BOL0L0000T52035 | BOXY LINE DIR L T5 2x35W |
| BOL0T0000T52035 | BOXY LINE DIR T T5 2x35W |
| BOL0F0000T52049 | BOXY LINE DIR F T5 2x49W |
| BOL0L0000T52049 | BOXY LINE DIR L T5 2x49W |
| BOL0T0000T52049 | BOXY LINE DIR T T5 2x49W |
| BOL0F0000T52080 | BOXY LINE DIR F T5 2x80W |
| BOL0L0000T52080 | BOXY LINE DIR L T5 2x80W |
| BOL0T0000T52080 | BOXY LINE DIR T T5 2x80W |
| Control gear | Optics | Colour | Lamp | Emergency unit | Accessories | |||||
| ECG | PSL | RAL 9003 | M1h | |||||||
| DIM 1-10V | PML | RAL 9006 | M3h | |||||||
| DALI | RAL 9007 |
