JAZZ RT600

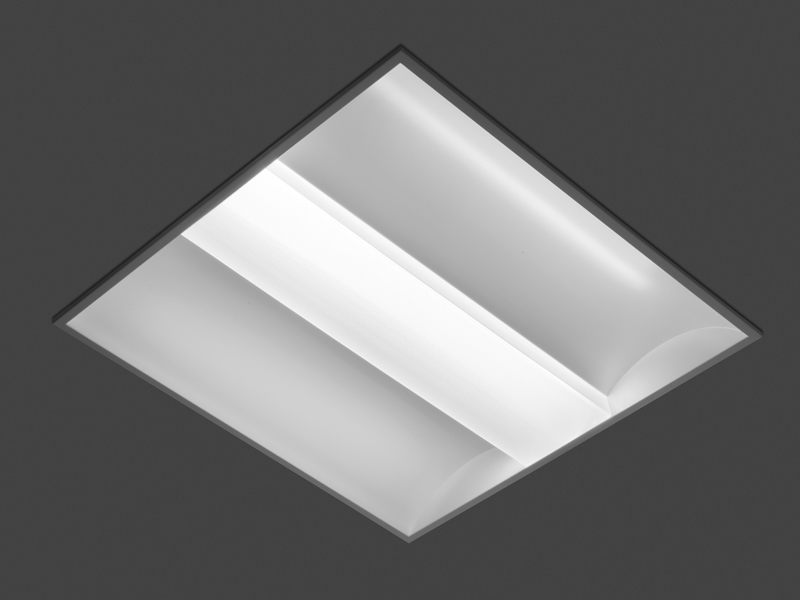

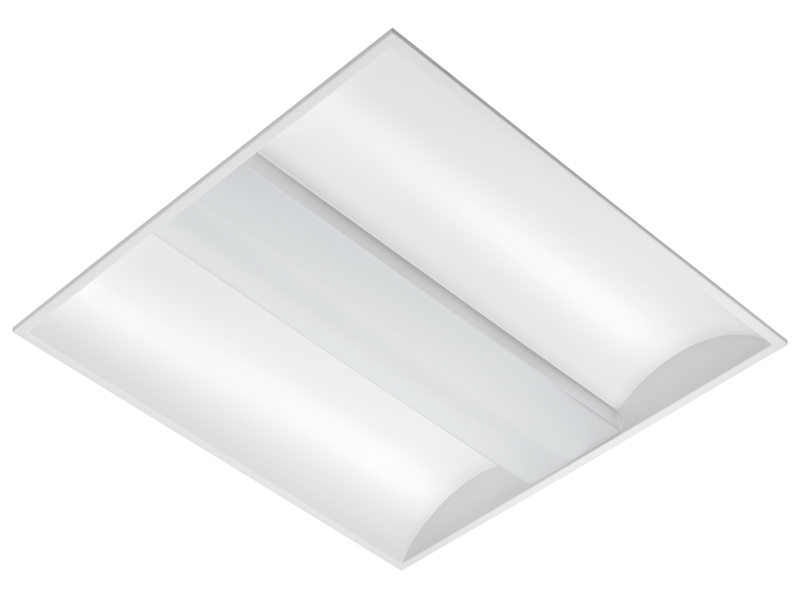

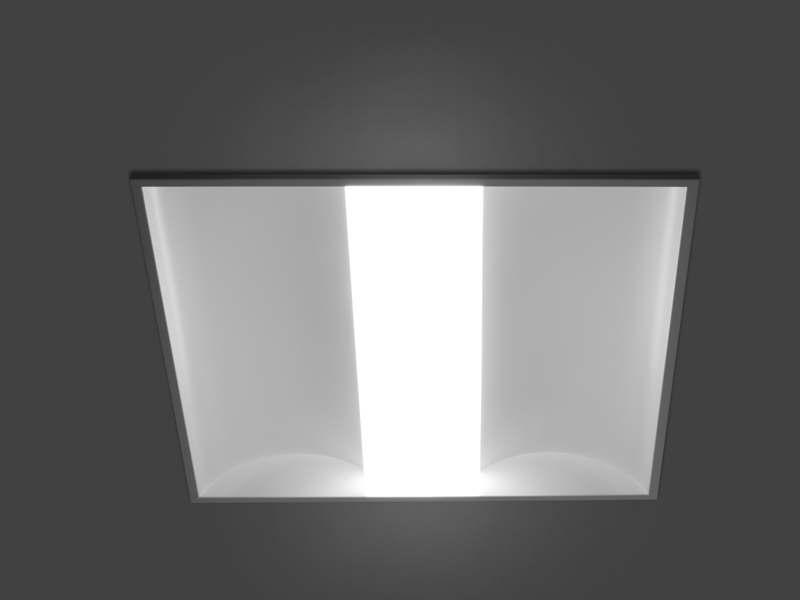

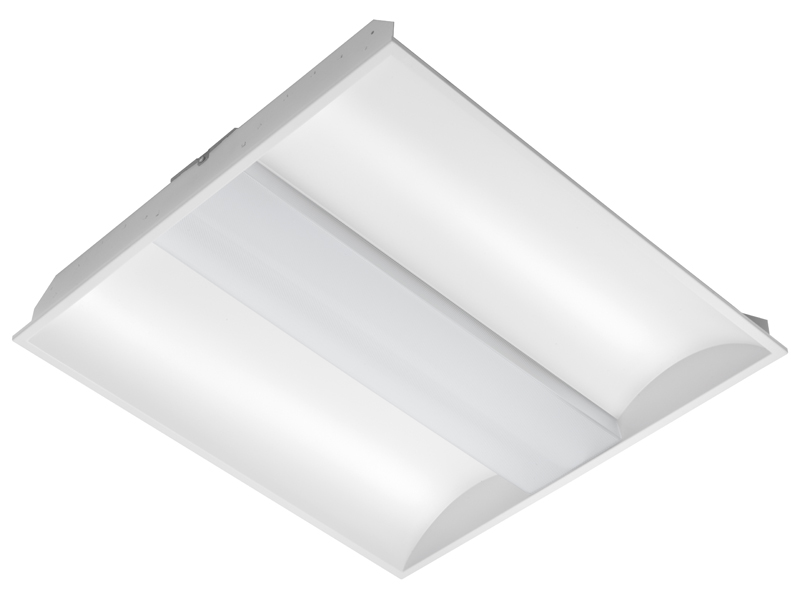

Recessed luminaire for ceilings with exposed grids, module size 600×600 or 625×625. Luminaire housing and frame made of 0,6mm sheet steel, white powder coated finish (RAL9003). Robust aluminium heat sink for optimum thermal management.

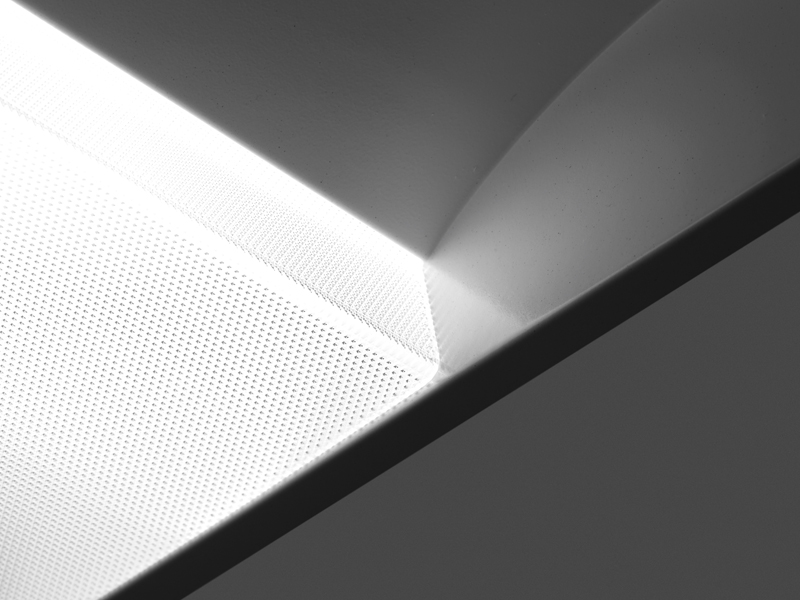

The central microprismatic diffuser has computer optimalized pyramidal structure, which accurately redirect luminous flux to requested direction. At the same time, diffuser prevents of unwanted glare. Diffuser excels in high light transmission, together with perfect mixing capability of light radiated from single LEDs. The result is very homogeneously backlighted active part of the luminaire, without visible hot spots.

Lamp	LED
Cooling	PASSIVE
Class	I
Ingress protection	IP40
Weign	3,5kg

JAZZ (1MB)

INSTALLATION TYPE
• RT600 – recessed luminaire, ceiling with exposed grids, module size 600×600
• installation in to another ceiling types on request

OPTICAL SYSTEM
• DMP – central custom made microprismatic profile with micropyramidal structure, PC. Direct light distribution.

ELECTRICAL EQUIPMENT

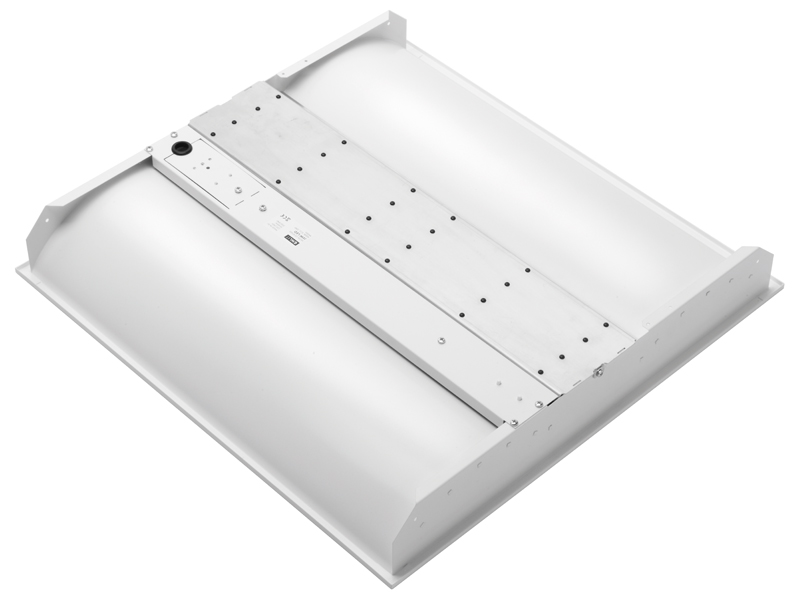

• linear LED modules fixed on aluminium heat sink
• electronic LED driver
• terminal block with strain relief, max. 2,5mm2

OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable LED driver (DSI, DALI)
• various colour finishing
• fast connectors (Wieland, Wago, Isodom)
• motion/daylight sensor directly integrated in the housing
• tunable white version (3000K-6000K)

SPECIFICATION

Type	System power (W)	Equivalent	A (mm)	B (mm)	H (mm)	kg
JAZZ RT600 LED 3260lm*	29	4x14W T5/ 1x55W TC-L	595	595	82	3,5

^{*net lumen output of the luminaire by 4000K}

Code	Type
JA00RT60LE03260	JAZZ RT600 LED 3260lm

CCT	Optics	CRI	Control gear	Colour	Accessories

3000K	DMP	80	ECG	RAL 9003	M1h
4000K		90	DIM 1-10V		M3h
Tunable White			DSI		Wieland
(3000K-6000K)			DALI		Isodom
