JOLLY II RT600 LED

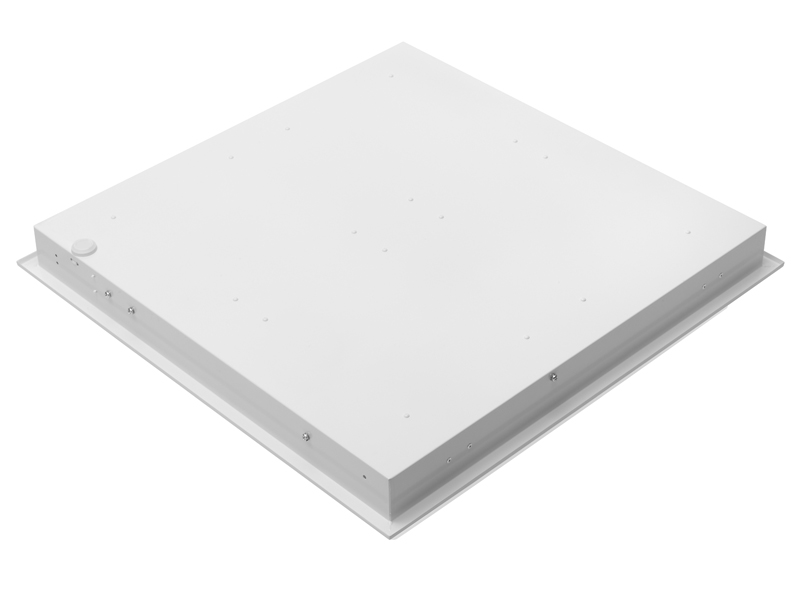

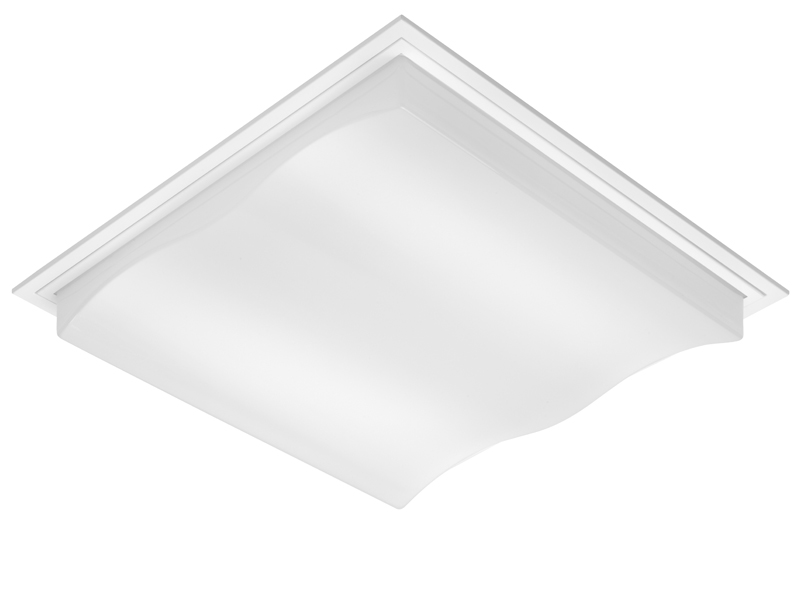

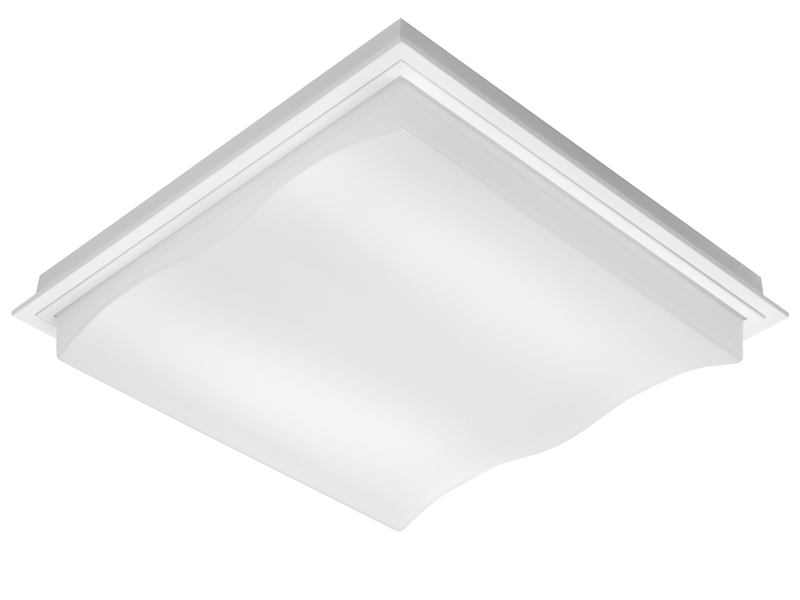

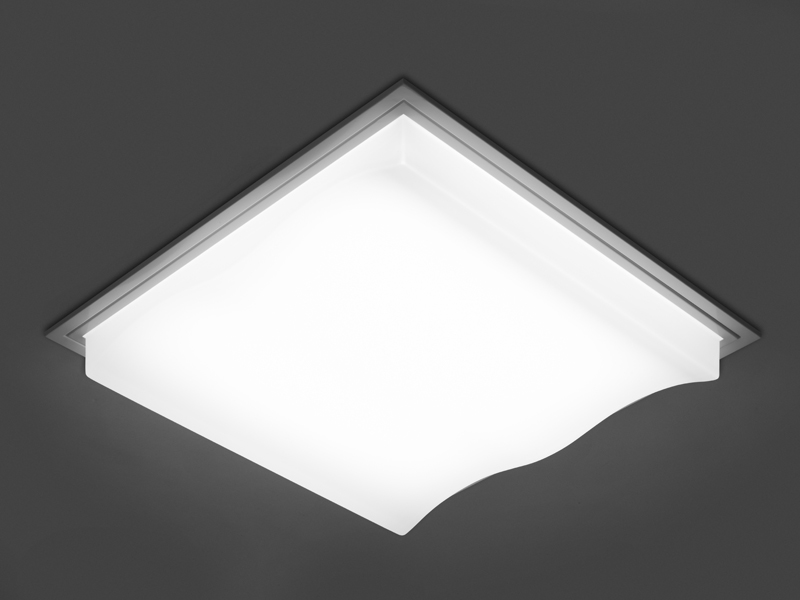

The construction of luminaire Jolly reflects the latest trends in lighting of indoor workplaces – it could not provide only the harmonic brightness distribution in the room, in addition it offers the possibility to utilize the last generation of high-efficient LED light sources. Recessed luminaire for ceilings with exposed grids, module size 600×600. Luminaire housing made of 0,6mm sheet steel, white powder coated finish (RAL9003). Luminaire housing serve as passive heat sink for LED modules.
| Lamp | LED |
| Cooling | PASSIVE |
| Class | I |
| Ingress protection | IP40 |
| Weight | 4,7kg |
INSTALLATION TYPE

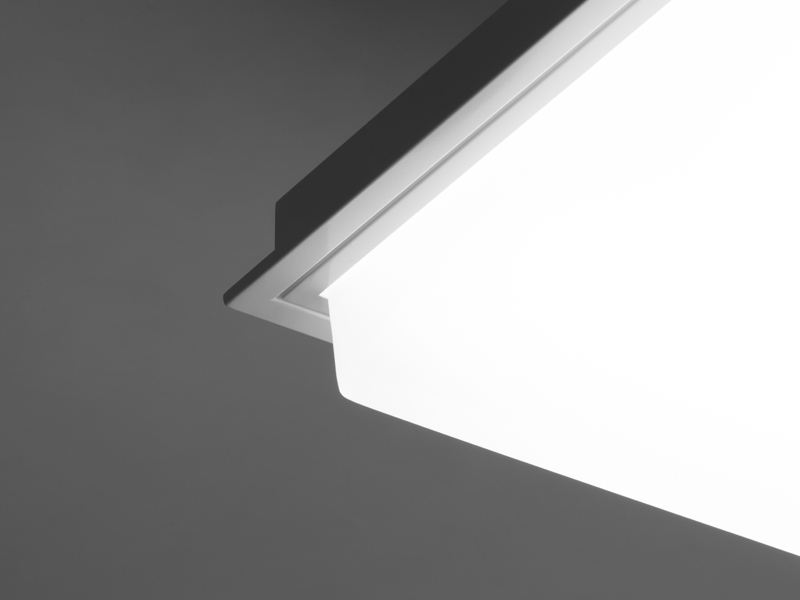

• RT600 – recessed luminaire, ceiling with visible T-profile, module 600×600
• installation into another ceiling types on request
OPTICAL SYSTEM

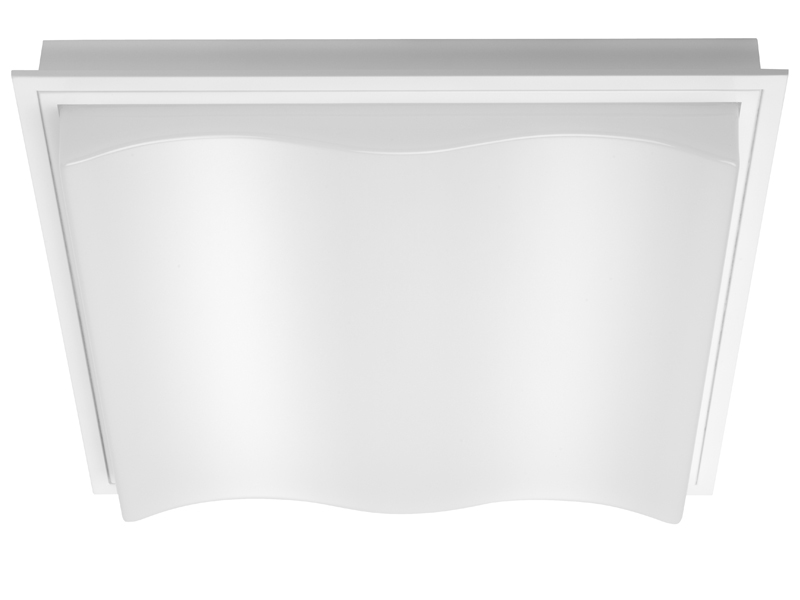

• DO – opal diffuser, made of PMMA (PC on request)
ELEKTRICAL EQUIPMENT
• 4xLED modul upevnený ku dnu svietidla
• electronic LED driver
• terminal block with strain relief, max. 2,5mm2, accessible from outside of the fixture
OPTIONAL EQUIPMENT / ACCESSORIES
• wired with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (DSI, DALI)
• components for fast electrical connection (Wieland, Wago)
SPECIFICATION
| TYPE* | System power (W) | Equivalent | A (mm) | B (mm) | H (mm) | kg |
| JOLLY II RT600 LED 3750lm | 36 | 4x14W T5 | 595 | 595 | 55 | 4,7 |
| JOLLY II RT600 LED 4440lm | 43 | 3x24W T5 | 595 | 595 | 55 | 4,7 |
| JOLLY II RT600 LED 5190lm | 51 | 4x24W T5 | 595 | 595 | 55 | 4,7 |
*net lumen output of the luminaire by 4000K
| Code | Type |
| JL20RT60LE03750 | JOLLY II RT600 LED 3750lm |
| JL20RT60LE04440 | JOLLY II RT600 LED 4440lm |
| JL20RT60LE05190 | JOLLY II RT600 LED 5190lm |
| CCT | Optics | CRI | Control Gear | Colour | Accessories | |||||
| 4000K | 80 | ECG | M 3h | |||||||
| 3000K | 90 | DALI | M 1h |
