LUCID

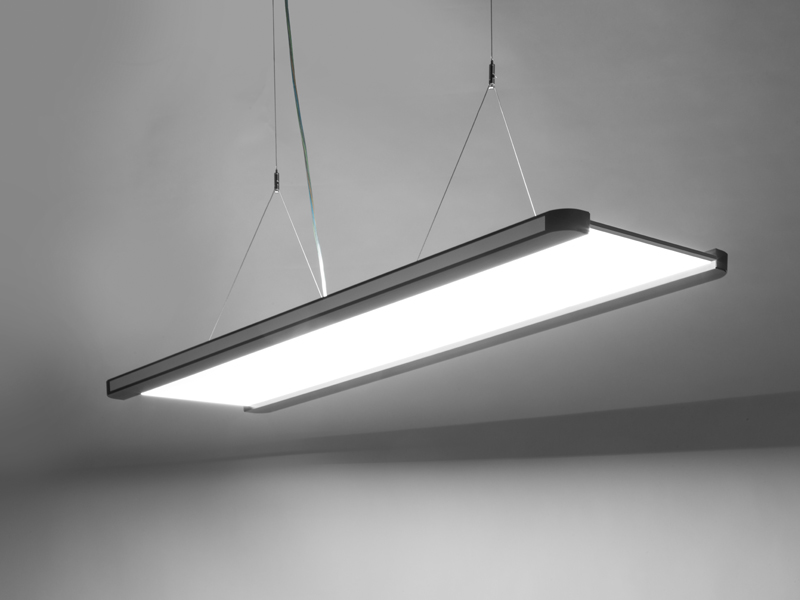

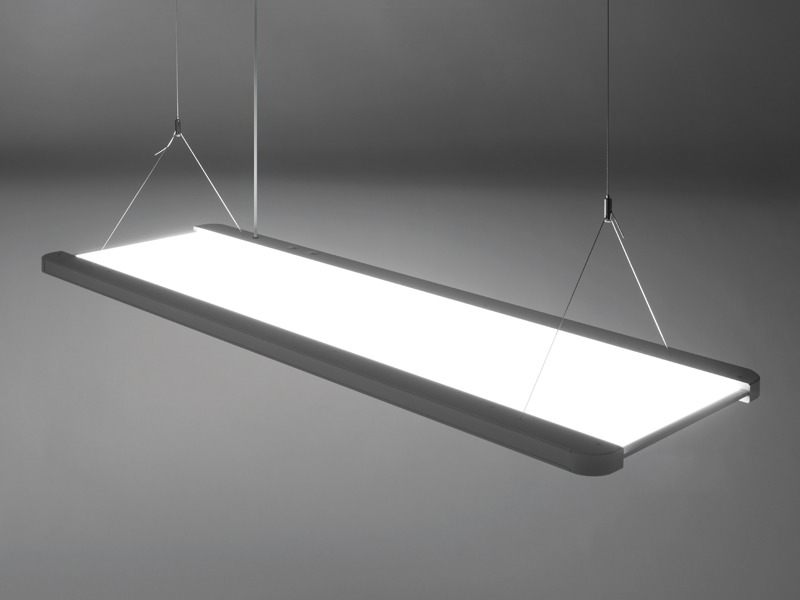

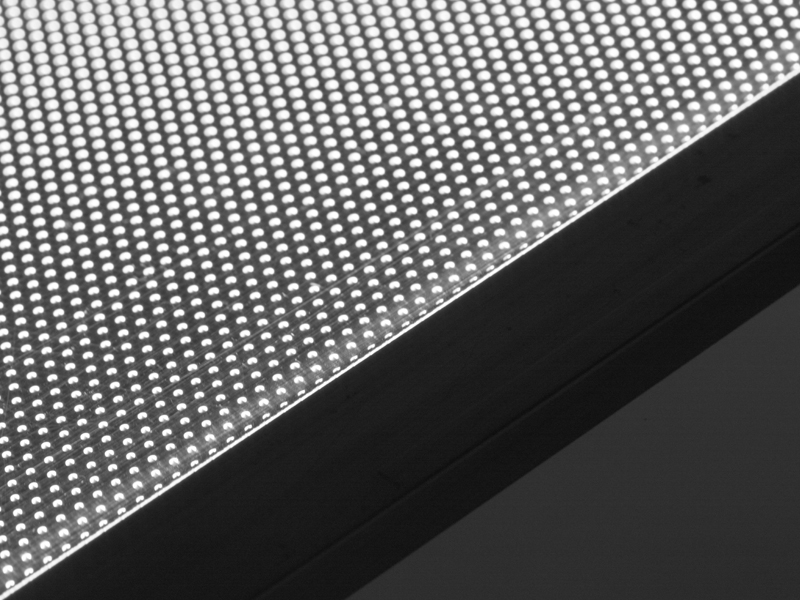

Innovative suspended LED luminaire with direct and indirect light output for prestigious interior lighting. The optical structure is not acting as a diffusor but uses reflection and refraction of the microprisms, for almost shadow-free light. Indirect light component with especially wide distribution. Balanced brightness and reduced contrasts within a room space. The direct portion of the light could be additionaly de-glared with bottom microprisamtic layer.

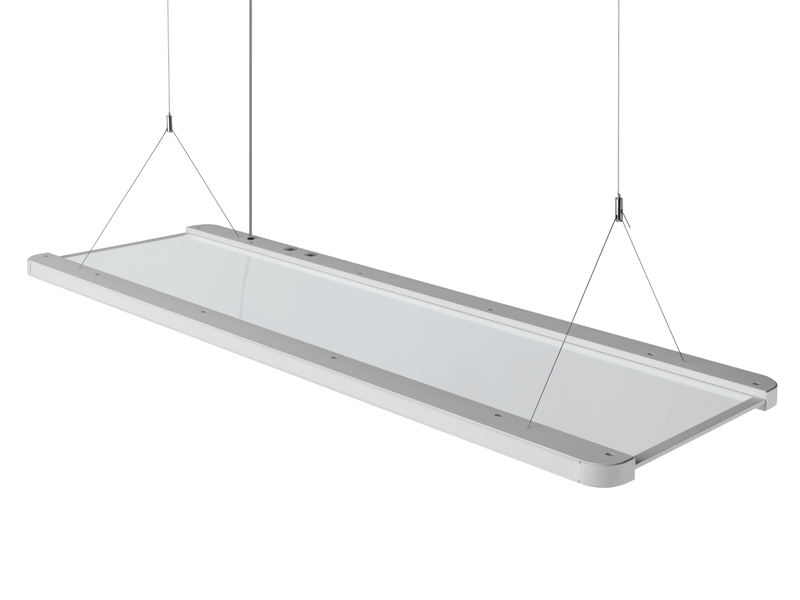

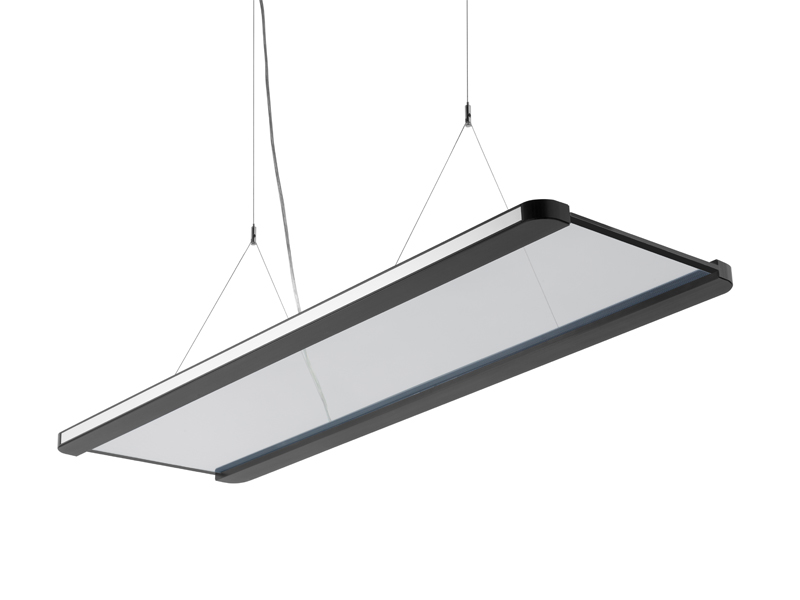

Luminaire housing and end caps are made of extruded aluminium profiles. Two basic colour versions: black anodised or white (RAL 9003) micro structured powder coated treatment. Other colours on request.

LampLED
CoolingPASSIVE
ClassI
Ingress protectionIP40
Hmotnosť5kg

INSTALLATION TYPE
• SUS – suspended LED luminaire

OPTICAL SYSTEM
• LGP – light guiding prismatic plate, PMMA clear
• LGP+DMP (optional) – microprismatic diffuser with pyramidal structure, PMMA
Direct/indirect light distribution. Suitable for VDU workstations: luminance of light emitting area is in accordance with EN 12464-1.

ELECTRICAL EQUIPMENT
• linear LED modules fixed inside aluminium housing
• integrated electronic LED driver
• transparent supply cable (3×0,75mm2 or 5×0,75mm2) is part of delivery

OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (DSI, DALI)
• various colour finishing
• tunable white version

SPECIFICATION

Type*System power (W)EquivalentA/X (mm)B (mm)H (mm)kg
LUCID LED 6.600lm532x54W T51151/900387275

*net lumen output of the luminaire by 4000K



CodeType
LU00SUS0LE06600LUCID LED 6.600lm



CCT Optics CRI Control gear Colour Accessories

3000K LGP 80 ECG white M 3h
4000K LGP+DMP 90 DALI black M 1h
5000K
Tunable White
2700K – 6500K
