NIMBUS DIR

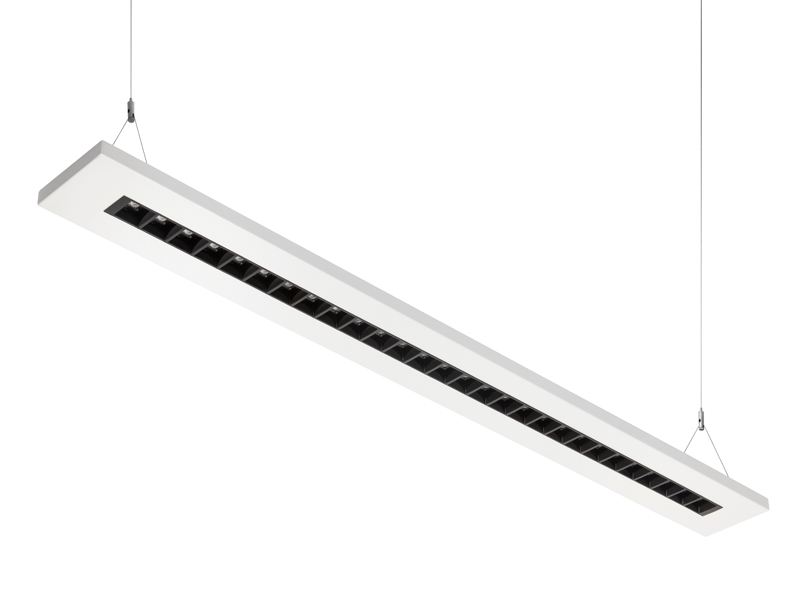

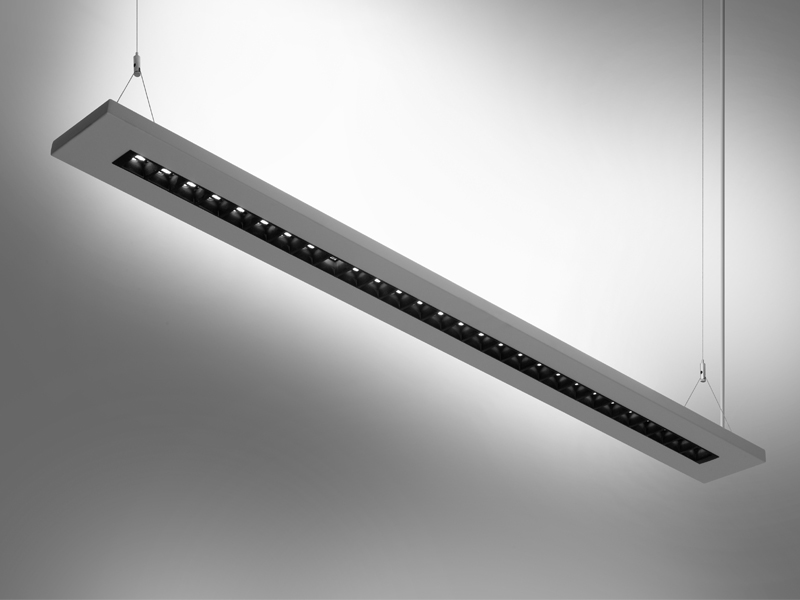

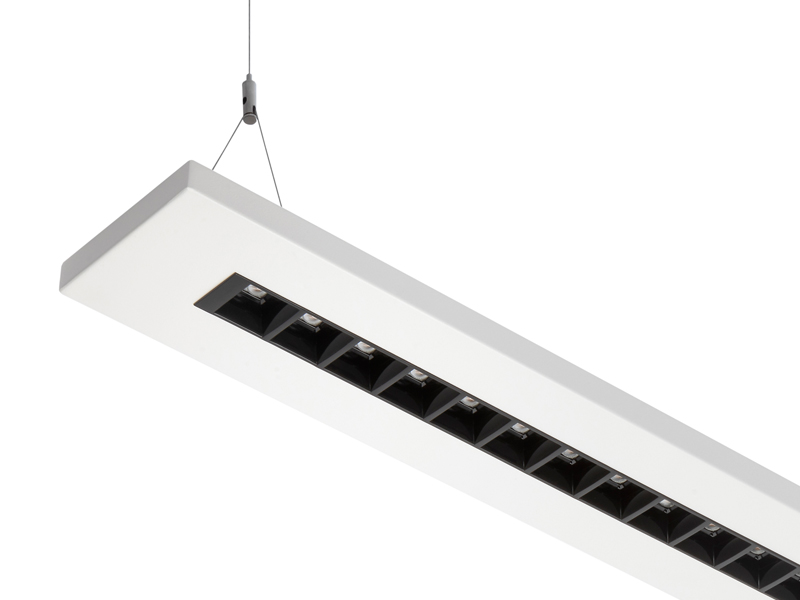

Suspended LED luminaire for premium class office lighting with direct light distribution. Functional design in combination with high light output.
Luminaire housing made of 0,6mm sheet steel, white powder coated finish (RAL9003). Upper part of the luminaire made of 1mm aluminium plate, that serves as passive heat sink for employed LED modules.
Increased protection of the optical part against dirt (IP40). Dark Light concept with UGR <16.

Lamp	LED
Cooling	PASSIVE
Class	I
Ingress protection	IP20
Weight	3,6kg

NIMBUS en (0,9MB)

INSTALLATION TYPE
• SUS – suspended luminaire

OPTICAL SYSTEM

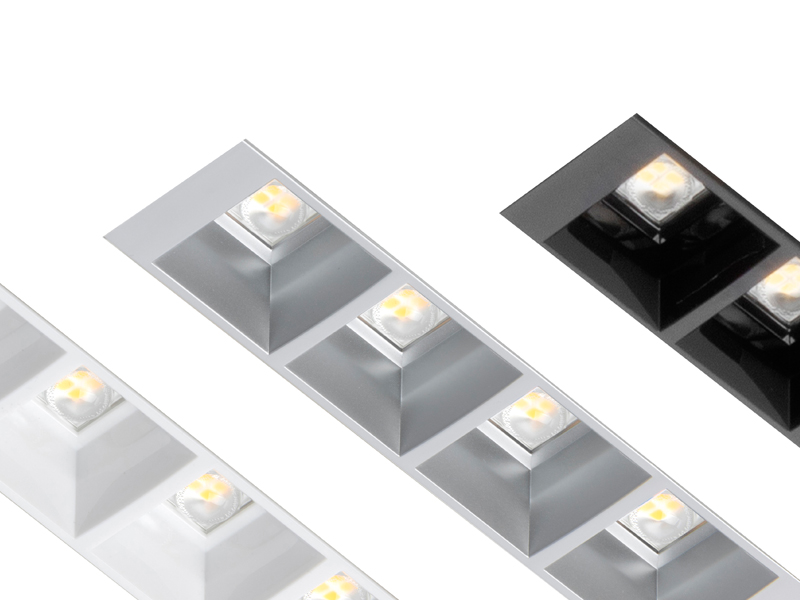

Discreet low glare solution combines square reflector elements and internal lenses for glare-free light.
Optical system is made of PC/ABS, available in piano black, white or silver finish. Internal lenses made of PMMA.
Suitable for VDU workstations: luminance of light emitting area is in accordance with EN 12464-1.
• BL – black
• WH – white
• SI – silver
• AS – asymmetrical beam

ELECTRICAL EQUIPMENT
• linear LED modules fixed on aluminium tray, PCB assembled with 2835 size Samsung LM281B+ mid power LED chips
• integrated electronic LED driver
• 3 or 5-pole screwless terminal block with strain relief, max. 2,5mm2
• cable opening entry completed with cable gland

OPTIONAL EQUIPMENT
• wired with emergency unit (1 or 3h)
• wired with dimmable electronic control gear (DIM 1-10V, DSI, DALI)
• various colour finishing
• motion/daylight sensor

SPECIFICATION

Type*	System power (W)	Equivalent	A (mm)	B (mm)	X (mm)	kg
NIMBUS DIR 4320lm	36	2x28W T5	1268	125	1126	3,6

^{*net lumen output of the luminaire by 4000K}

Code	Type
NI10SUS0LE04320	NIMBUS DIR 4320lm

CCT	Optics	CRI	Control gear	Colour	Accessories

4000K	BL	80	ECG	RAL 9003	M 1h
3000K	WH	90	DIM 1-10V	RAL 9005	M 3h
2700-6500K	SI		DSI	RAL 9006	motion/daylight sensor
			DALI	RAL 9007
