PLANK L

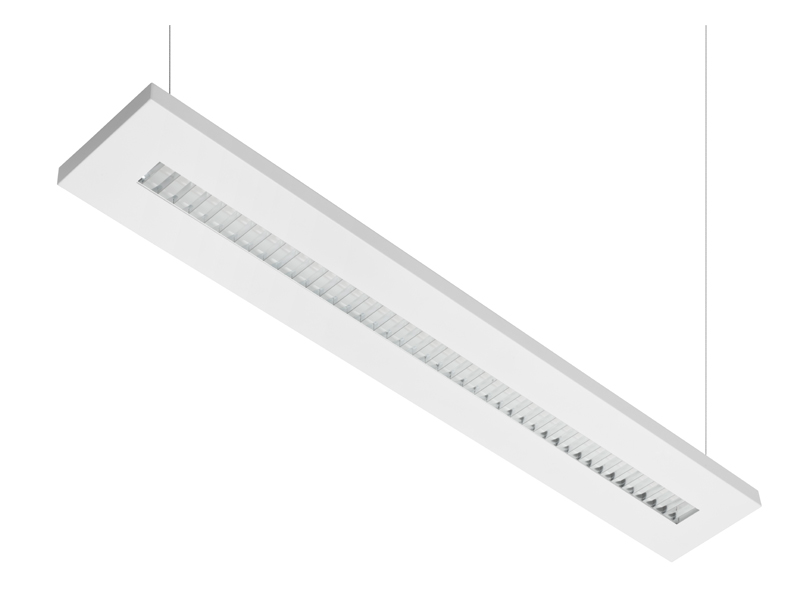

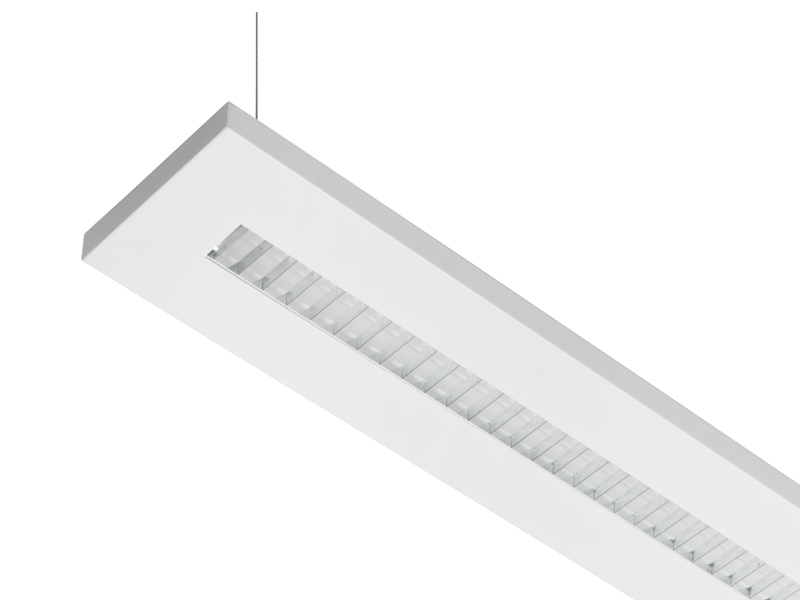

Suspended luminaire with high efficient LED modules, primary designed for energy efficient illumination of office areas. Luminaire is equipped with double parabolic louvre made of anodised aluminium, suitable for VDU workstations.

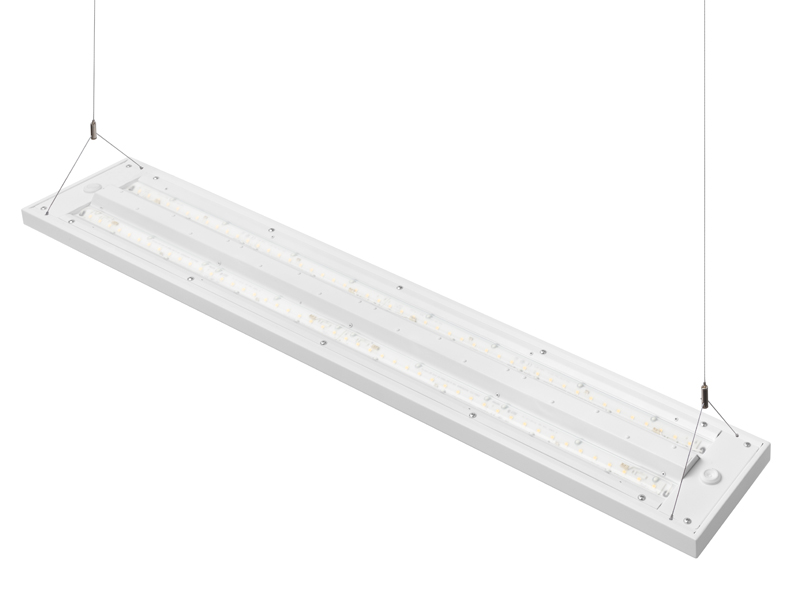

Luminaire housing made of 0,8mm sheet steel, white powder coated finish RAL9003 (white), RAL 9006 (grey), RAL9005 (black) as a standard. Luminaire is designed for suspended installation. PLANK L DIR/INDIR could be optionally quipped with two independent drivers, thus enabling independent control of direct and indirect part of luminous flux distribution.

Lamp	LED
Cooling	PASSIVE
Class	I
Ingress protection	IP40
Weight	4,6-4,9kg

PLANK (2MB)

INSTALLATION TYPE
• SUS – suspended LED luminaire

OPTICAL SYSTEM
• PML (parabolic matt louvre) – matt, anodized aluminium, double parabolic louvre

ELECTRICAL EQUIPMENT

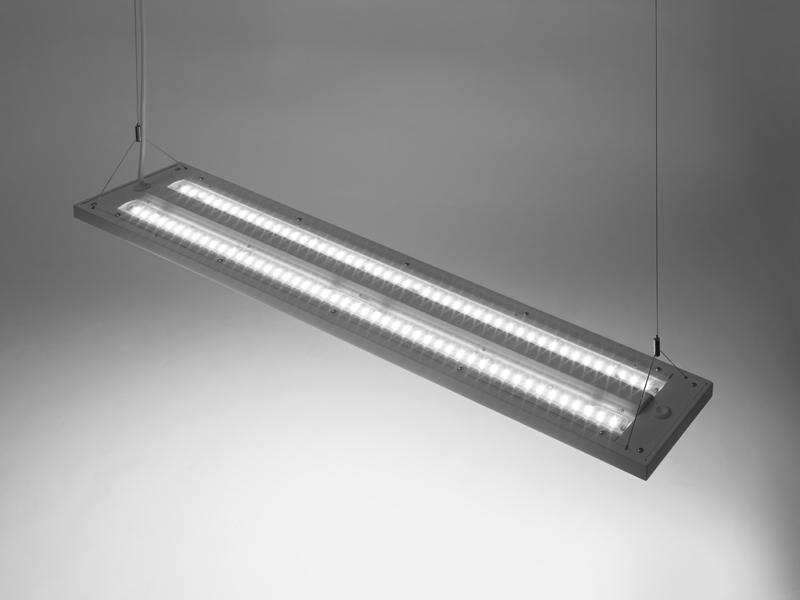

• last generation linear LED modules fixed at the bottom of luminaire housing
• one or two electronic LED drivers
• terminal block with strain relief, max. 2,5mm2

OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (DSI, DALI)
• pullswitch
• various colour finishing

SPECIFICATION

Type*	System power (W)	Equivalent	A/X (mm)	B (mm)	H (mm)	kg
PLANK L DIR LED 3040lm	31	1x54W T5	1316/1200	200	50/36	4,6
PLANK L DIR TW LED 4100lm	41	2x28W T5	1316/1200	200	50/36	4,6
PLANK L DIR/INDIR LED 5800lm	49	2x28W T5	1316/1200	200	50/36	4,8
PLANK L DIR/INDIR 2C LED 3040+2760lm	49	2x28W T5	1316/1200	200	50/36	4,9

*net lumen output of the luminaire by 4000K
2C – two circuits, separate control of DIR and INDIR part

Code	Type
PL40SUS0LE03040	PLANK L DIR LED 3040lm
PL41SUS0LE04100	PLANK L DIR TW LED 4100lm
PL50SUS0LE05800	PLANK L DIR/INDIR LED 5800lm
PL532US0LE05800	PLANK L DIR/INDIR 2C LED 3040+2760lm

CCT	Optics	CRI	Control gear	Colour	Accessories

3000K	PML	80	ECG	white	M 3h
4000K		90	DALI	grey	pullswitch
Tunable White 3000K – 6000K				black
