PLANK S

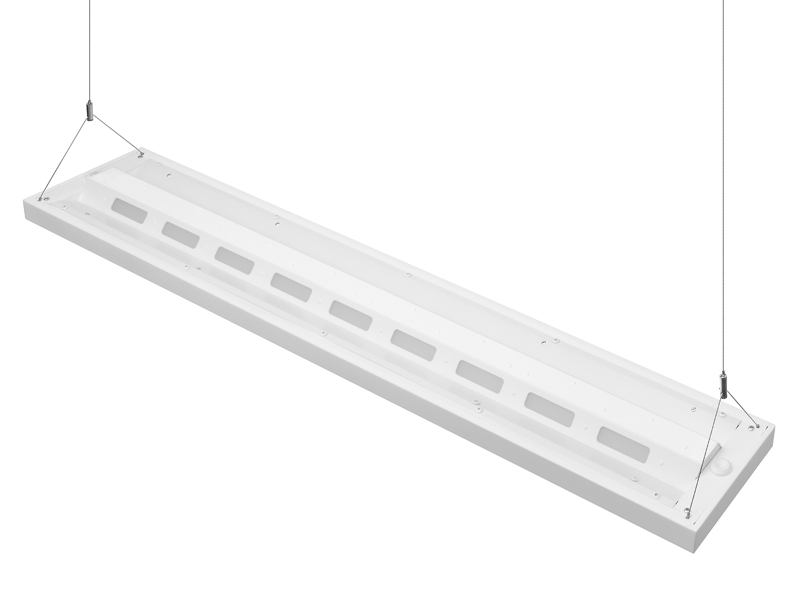

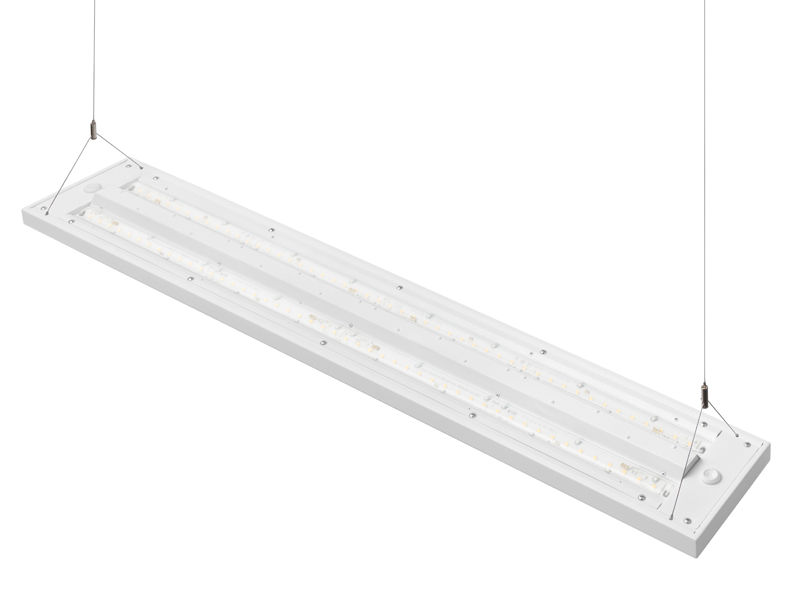

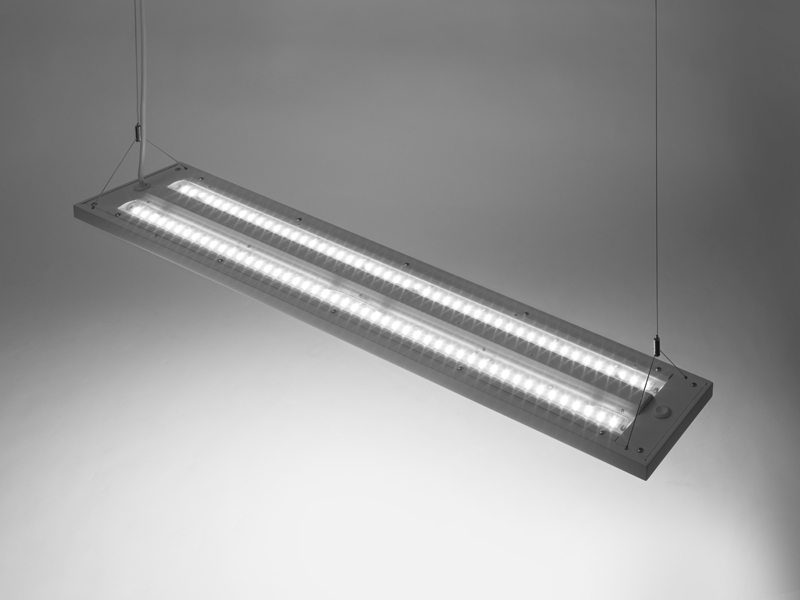

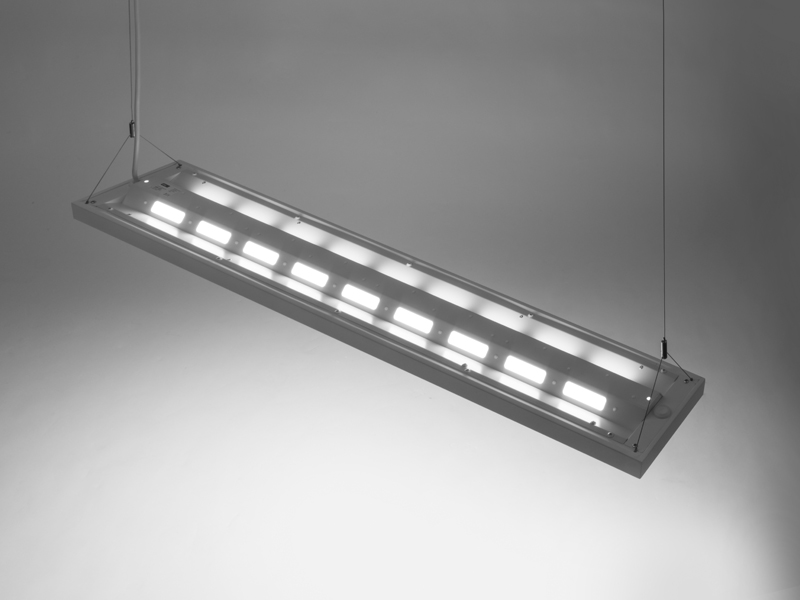

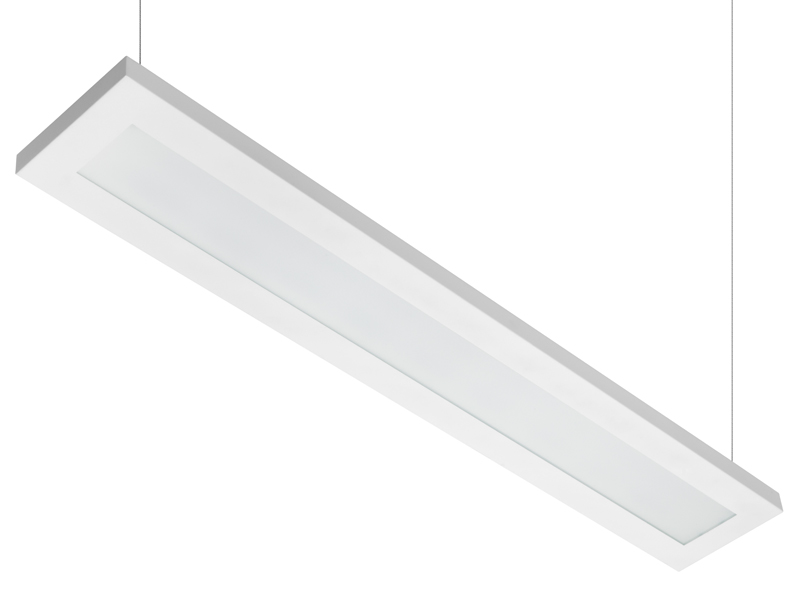

Suspended luminaire with high efficient LED modules, primary designed for energy efficient illumination of office areas. Optical system created by microprismatic diffuser provides pleasant diffuse lighting characteristics. Luminaire housing made of 0,8mm sheet steel, white powder coated finish RAL9003 (white), RAL 9006 (grey), RAL9005 (black) as a standard. Luminaire is designed for suspended installation. PLANK SHORT DIR/INDIR could be optionally quipped with two independent drivers, thus enabling independent control of direct and indirect part of luminous flux distribution.
| Lamp | LED |
| Cooling | PASSIVE |
| Class | I |
| Ingress protection | IP40 |
| Weight | 3,9-4,1kg |
INSTALLATION TYPE
• SUS – suspended LED luminaire
OPTICAL SYSTEM
• DMP – microprismatic diffuser made of PMMA, semi-wide beam angle,
increased glare prevention from side view
ELECTRICAL EQUIPMENT
• last generation linear LED modules fixed at the bottom of luminaire housing
• one or two electronic LED drivers
• terminal block with strain relief, max. 2,5mm2
OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (DSI, DALI)
• pullswitch
• various colour finishing
SPECIFICATION
| Type* | System power (W) | Equivalent | A/X (mm) | B (mm) | H (mm) | kg |
| PLANK S DIR LED 4500lm | 38 | 2x28W T5 | 1240/1200 | 200 | 50/36 | 3,9 |
| PLANK S DIR TW LED 4100lm | 41 | 2x28W T5 | 1240/1200 | 200 | 50/36 | 3,9 |
| PLANK S DIR/INDIR LED 5300lm | 43 | 2x28W T5 | 1240/1200 | 200 | 50/36 | 3,9 |
| PLANK S DIR/INDIR 2C LED 3150+2300lm | 43 | 2x28W T5 | 1240/1200 | 200 | 50/36 | 4,1 |
| PLANK S DIR/INDIR TW LED 4100lm | 41 | 2x28W T5 | 1240/1200 | 200 | 50/36 | 3,9 |
*net lumen output of the luminaire by 4000K
2C – two circuits, separate control of DIR and INDIR part
| Code | Type |
| PL20SUS0LE04500 | PLANK S DIR LED 4500lm |
| PL21SUS0LE04100 | PLANK S DIR TW LED 4100lm |
| PL30SUS0LE05300 | PLANK S DIR/INDIR LED 5300lm |
| PL32SUS0LE05450 | PLANK S DIR/INDIR 2C LED 3150+2300lm |
| PL31SUS0LE04100 | PLANK S DIR/INDIR TW LED 4100lm |
| CCT | Optics | CRI | Control gear | Colour | Accessories | |||||
| 3000K | DMP | 80 | ECG | white | M 3h | |||||
| 4000K | 90 | DALI | grey | pullswitch | ||||||
| Tunable White 3000K – 6000K | black |
