ROD LED

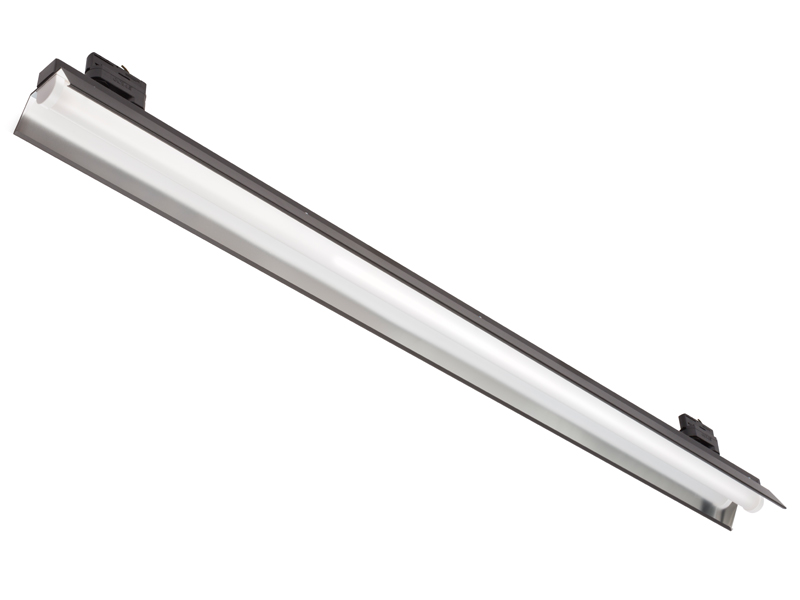

Simple luminaire with functional design, designed to provide general illumination in wide range of interior applications. Although it´s look reminds older fluorescent relatives, it is equipped with last generation of linear LED modules, that are covered with frosted diffuser. Diffuser not only protect LED boards from direct touch, it also helps to spread the light homogenously into space, without any multi-shadow effect.
Standardly available with reflector accessory – whether white painted or made of high reflective anodised aluminium.

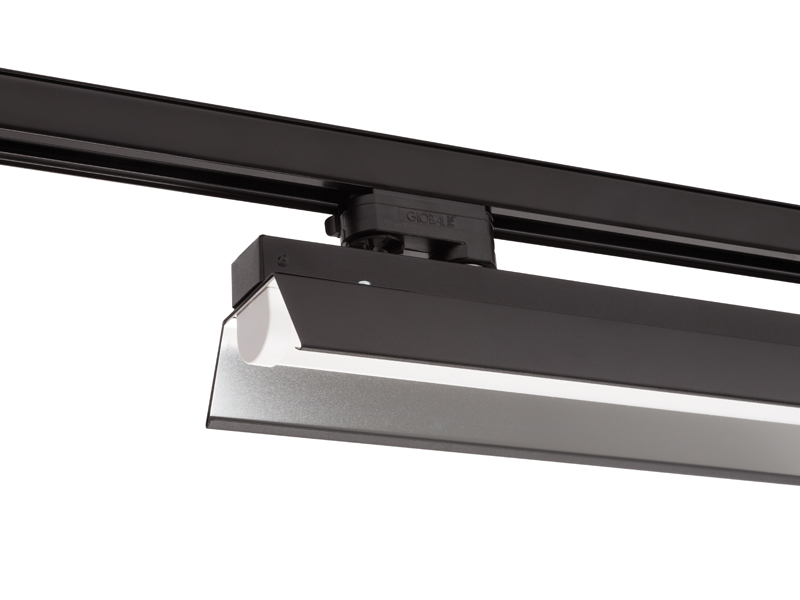

Luminaire is designed for mounting on solid surface, for suspended installation but also for installation into three-circuit lighting tracks (through the use of adapters).

Lamp	LED
Cooling	PASSIVE
Class	I
Ingress Protection	IP40
Weight	2,6 kg

ROD LED (1MB)

INSTALLATION TYPE
• SUR – surface mounted installation
• SUS – suspended installation

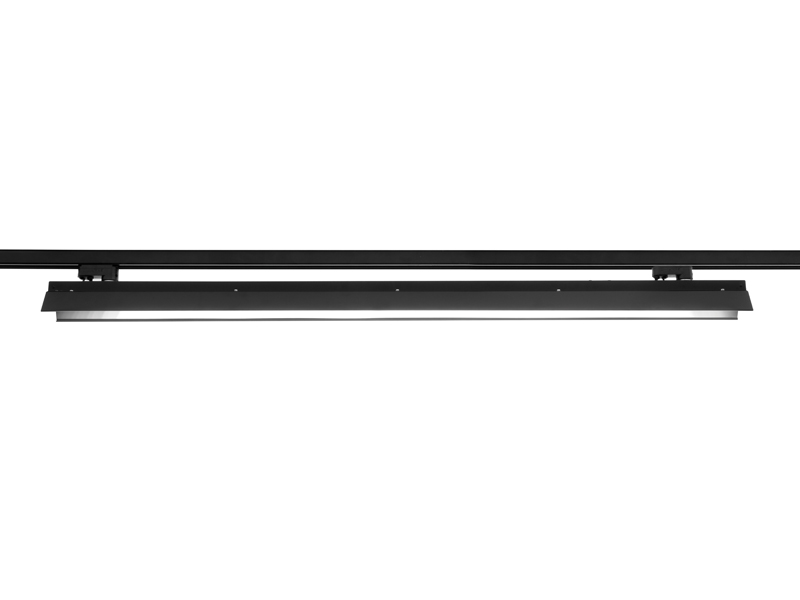

• TRC – installation into (one or three-circuit) lighting track (Global, Eutrac)

OPTICAL SYSTEM
• RWS – reflector white symmetric
• RWS/RSS – high efficient reflector made of anodised aluminium inserted into outer steel reflector

ELECTRICAL EQUIPMENT
• linear LED module fixed on aluminium mounting plate
• electronic LED driver

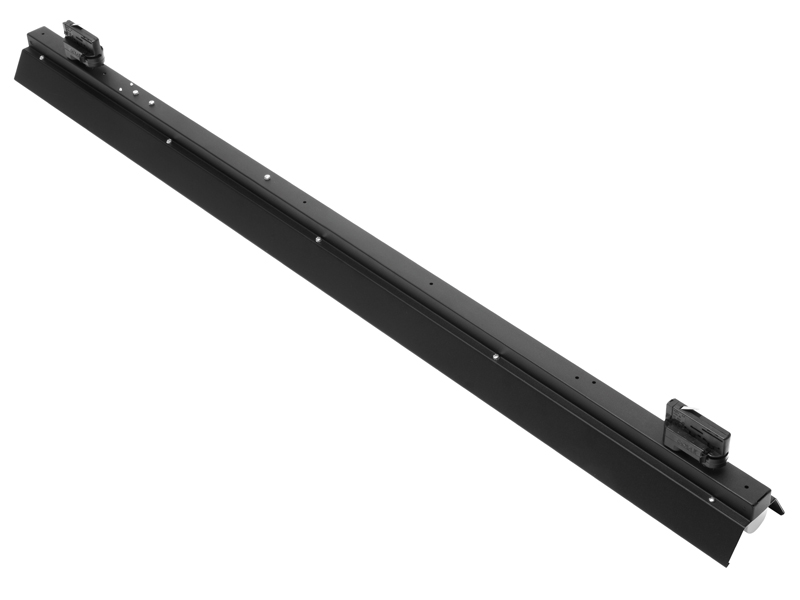

• adapter for mounting into the lighting track (optional)

OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (DSI, DALI)
• black colour finish
• suspensions

SPECIFICATION

Type*	System power (W)	Equivalent	A/X (mm)	B (mm)	H (mm)	kg
ROD LED 3500lm	32	1x54W T8	1440/1200	113	72	2,6
ROD LED 4300lm	40	1x80W T8	1440/1200	113	72	2,6

*net lumen output of the luminaire by 4000K

Code	Type
RL000000LE03500	ROD LED 3500lm
RL000000LE04300	ROD LED 4300lm

CCT	Optics	CRI	Control gear	Colour	Accessories

3000K	RWS	80	ECG	biela	M1h
4000K	RWS/RSS	90	DALI	čierna	M3h
6500K			DIM 1-10V		TRC
Tunable White			DSI		SUS
(3000K-6000K)
