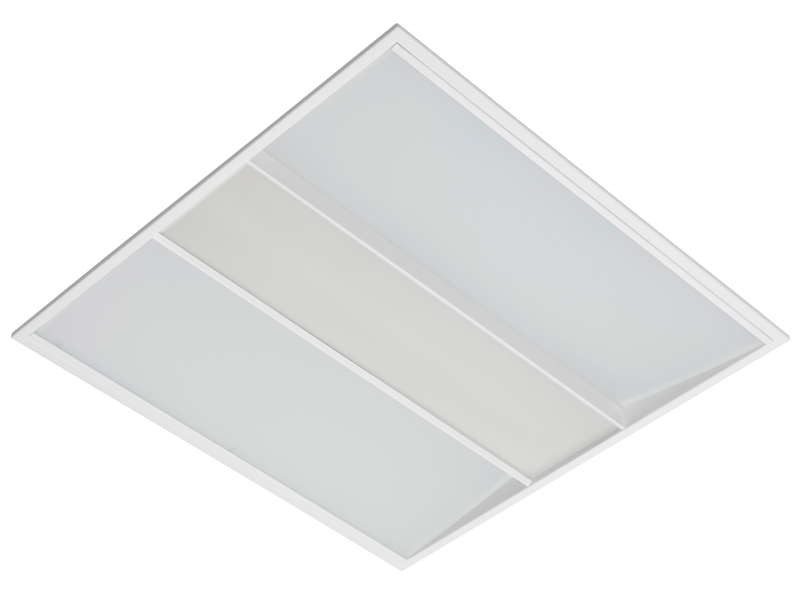

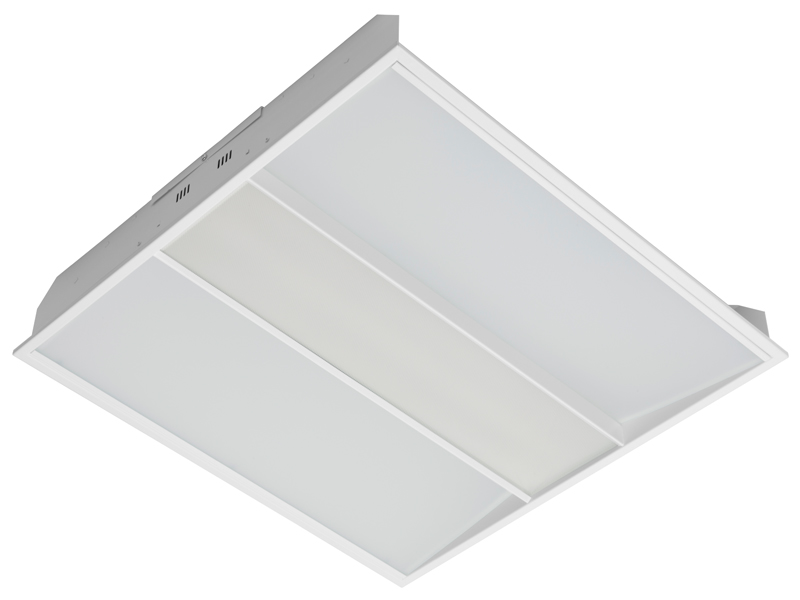

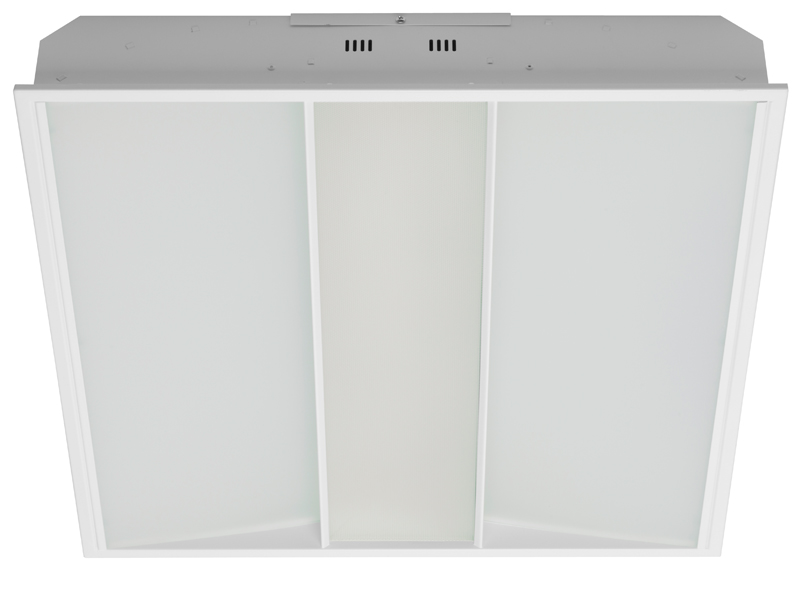

SATIN RT600

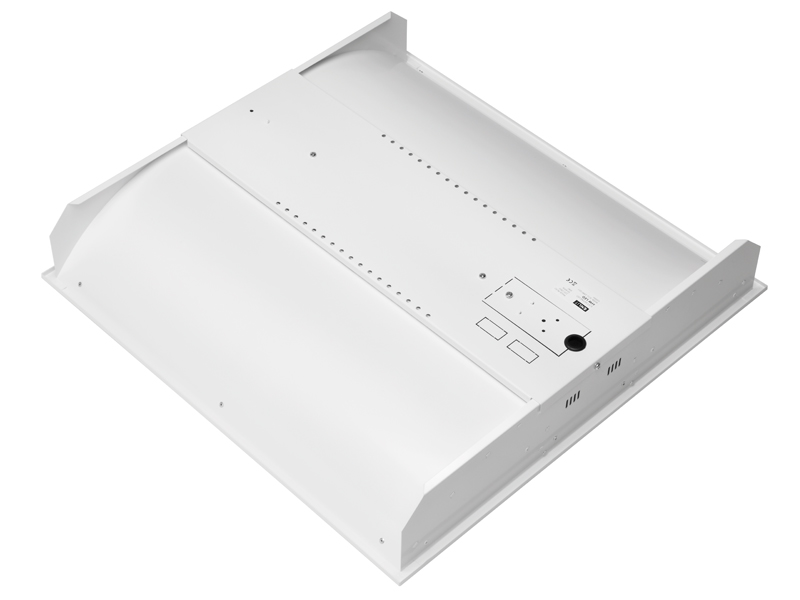

Luminaire housing and frame made of 0,6mm sheet steel, white powder coated finish (RAL9003). The central microprismatic diffuser has a computer optimalized pyramidal structure, which accurately redirect luminous flux to the requested direction.
| Lamp | LED |
| Cooling | PASSIVE |
| Class | I |
| Ingress protection | IP40 |
| Weight | 5,2kg |
SATIN en (1MB)
INSTALLATION TYPE
• RT600 – recessed luminaire, ceiling with exposed grids, module size 600×600
• installation in to another ceiling types on request
OPTICAL SYSTEM

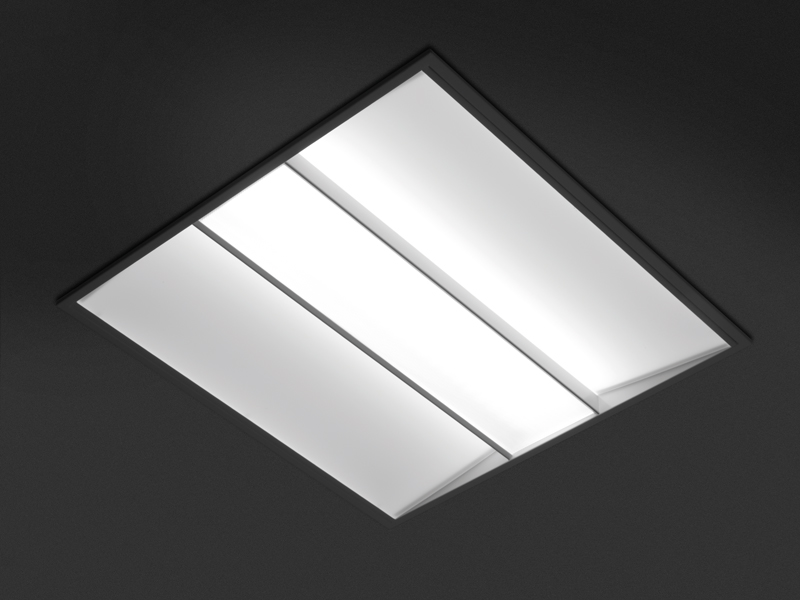

• DMP/DO – central microprismatic diffuser made of PMMA, semi-wide beam angle, increased glare prevention from the side view.
Side opal diffusers made of fine structured polycarbonate with high light transmission, increased portion of diffuse light.
ELECTRICAL EQUIPMENT
• 4xLED module fixed on aluminium heat sink
• electronic LED driver
• terminal block with strain relief, max. 2,5mm2
OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable LED driver (DSI, DALI)
• various colour finishing
• fast connectors (Wieland, Wago, Isodom)
• motion/daylight sensor directly integrated in the housing
SPECIFICATION
| Type* | System power (W) | Equivalent | A (mm) | B (mm) | H (mm) | kg |
| SATIN RT600 LED 3700lm | 36 | 4x14W T5/ 1x55W TC-L | 595 | 595 | 102 | 5,2 |

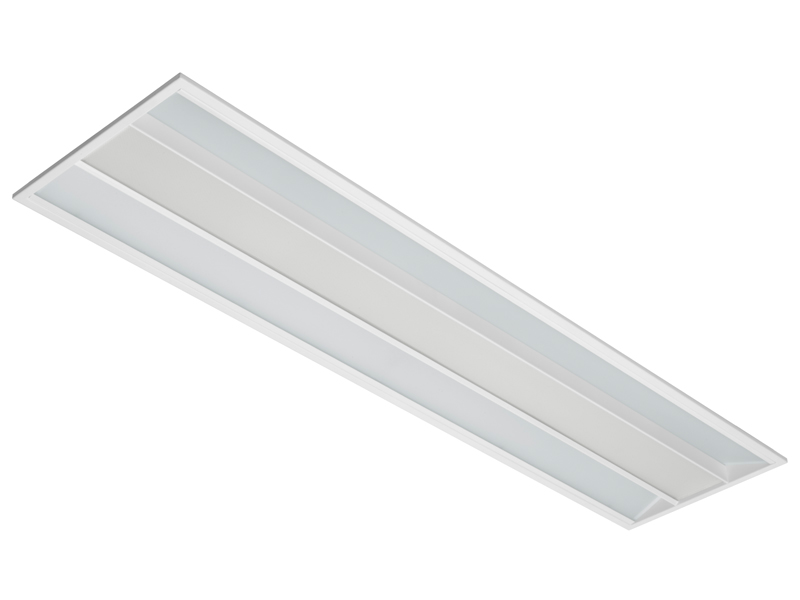

| SATIN 12×3 RT600 LED 3700lm | 36 | 2x28W T5 | 1195 | 295 | 84 | 5,1 |
*net lumen output of the luminaire by 4000K
| Code | Type |
| SA00RT60LE03700 | SATIN RT600 LED 3700lm |
| SA01RT60LE03700 | SATIN 12×3 RT600 LED 3700lm |
| CCT | Optics | CRI | Control gear | Colour | Accessories | |||||
| 3000K | DMP/DO | 80 | ECG | RAL 9003 | M1h | |||||
| 4000K | 90 | DIM 1-10V | M3h | |||||||
| Tunable White | DSI | Wieland | ||||||||
| (3000K-6000K) | DALI | Isodom |
