SKY SUS

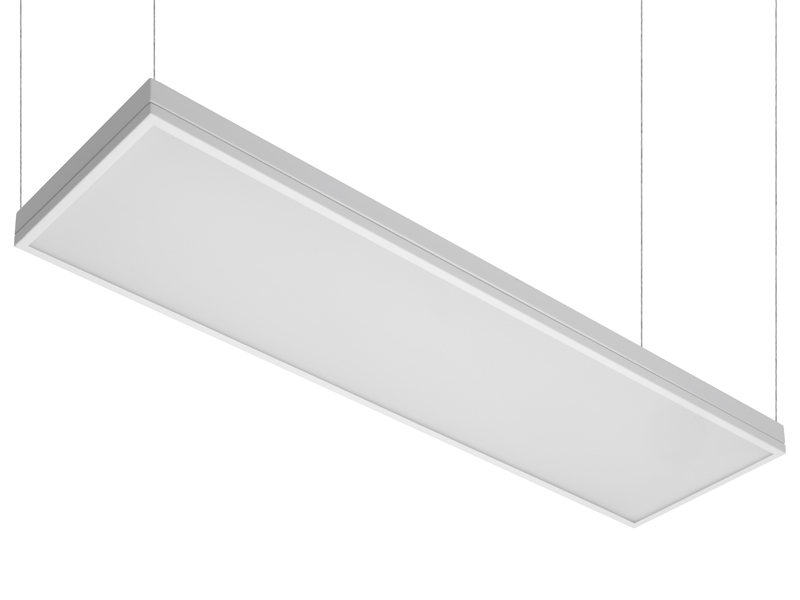

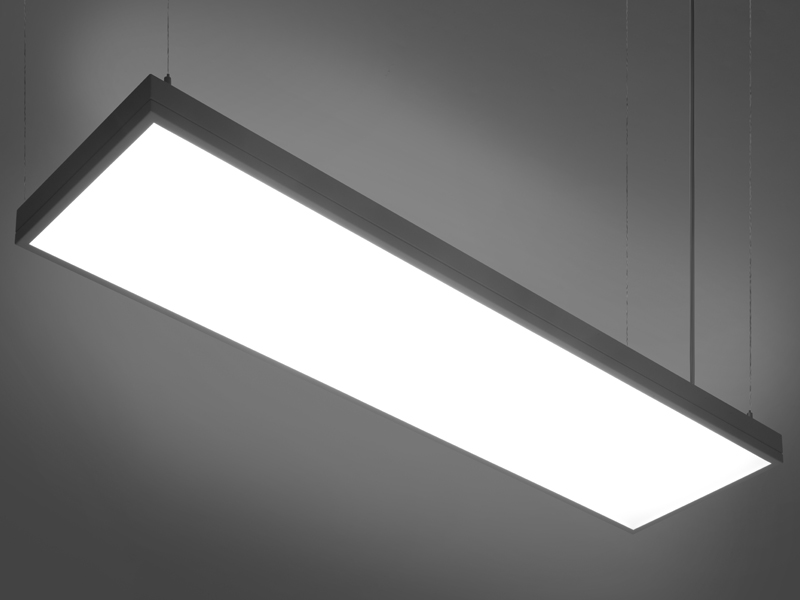

Suspended luminaire with high efficient LED modules, primary designed for energy efficient illumination of office areas. Optical system created by microprismatic diffuser provides pleasant diffuse and glare-free lighting characteristics.

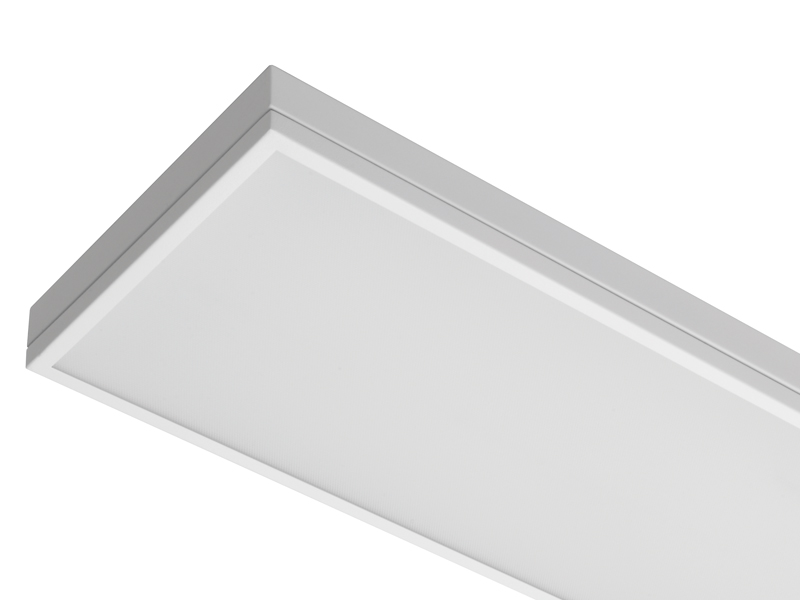

Luminaire housing and frame holding the optics are both made of 0,8mm sheet steel, powder coated. Corners of housing and frame are laser welded without any visible joints. Visible width of bottom frame only 12mm.

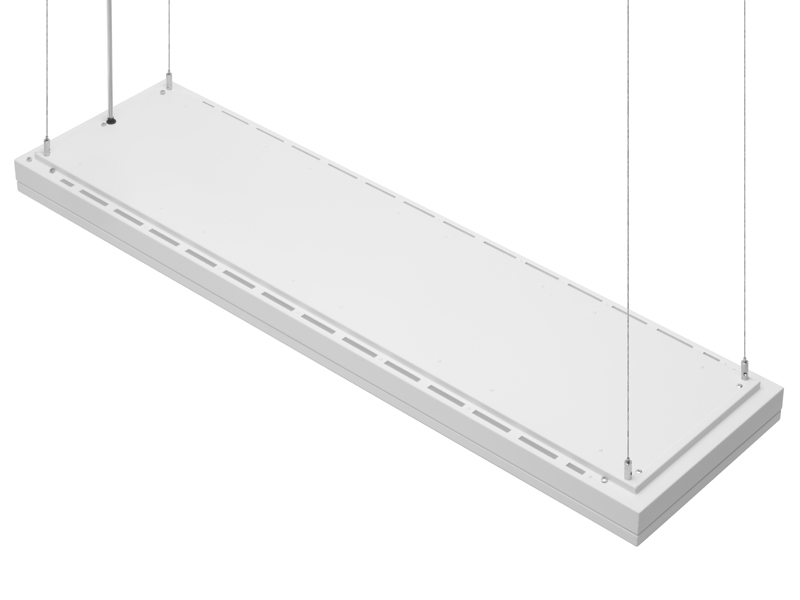

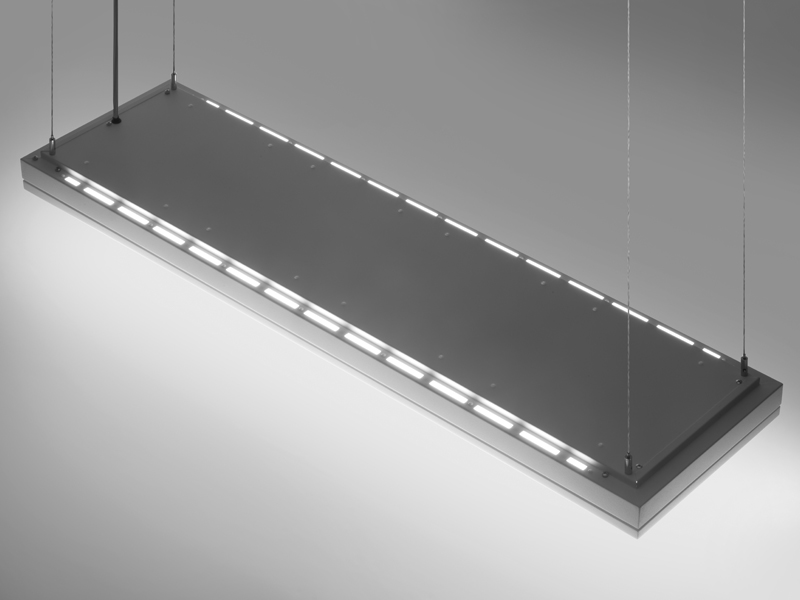

Luminaire designed for suspended installation is available in two lengths as pure direct, or direct/indirect version. Standardly supplied with 4 single suspensions and 1,5m long transparent supply cable 3(5)x0,75mm2. Removable bottom frame attached to the housing with screws – possible future upgrade of LED technology.
| Lamp | LED |
| Cooling | PASSIVE |
| Class | I |
| Ingress protection | IP40 |
| Weight | 7.3-9.1kg |
INSTALLATION TYPE
• SUS – suspended LED luminaire
OPTICAL SYSTEM
• DMP – microprismatic diffuser with pyramidal structure, PMMA. Diffuser is completed with special light diffuse film
for even homogenous appearance of bottom part of the luminaire.
Third layer (on request) – cover layer made of antireflect plastic sheet. Makes bottom of the luminaire smooth and prevents
the accumulation of dust. Gleamless finish, no disturbing reflections. Very easy to clean.
ELECTRICAL EQUIPMENT
• LED modules fixed at the bottom of luminaire housing
• electronic LED driver
• terminal block with strain relief, max. 2,5mm2
OPTIONAL EQUIPMENT
• HNT 05 – adjustable Y suspensions (two fixing points)
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (DSI, DALI)
• various colour finishing
• supply cable with other length then 1,5m or bigger cross-section then 0,75mm2
• tunable white version (3000-6000K)
• high colour rendering index (CRI>90)
• 3-layer optical system
SPECIFICATION
| Type* | System power (W) | Equivalent | A/X (mm) | B (mm) | H (mm) | kg |
| SKY SUS 11 LED 3650lm | 36 | 2x28W T5 | 1110/1030 | 300 | 64/53 | 7,3 |
| SKY SUS 11 LED 4330lm | 43 | 2x35W T5 | 1110/1030 | 300 | 64/53 | 7,3 |
| SKY SUS 11 LED 5050lm | 51 | 2x49W T5 | 1110/1030 | 300 | 64/53 | 7,3 |
| SKY SUS 14 LED 4560lm | 43 | 2x35W T5 | 1360/ 1280 | 300 | 64/53 | 9,1 |
| SKY SUS 14 LED 5400lm | 53 | 2x49W T5 | 1360/ 1280 | 300 | 64/53 | 9,1 |
| SKY SUS 14 LED 6310lm | 63 | 2x54W T5 | 1360/ 1280 | 300 | 64/53 | 9,1 |
*net lumen output of the luminaire by 4000K
| Code | Type |
| SKS11000LE03650 | SKY SUS 11 DIR LED 3650lm |
| SKS11001LE03650 | SKY SUS 11 DIR/INDIR LED 3650lm |
| SKS11000LE04330 | SKY SUS 11 DIR LED 4330lm |
| SKS11001LE04330 | SKY SUS 11 DIR/INDIR LED 4330lm |
| SKS11000LE05050 | SKY SUS 11 DIR LED 5050lm |
| SKS11001LE05050 | SKY SUS 11 DIR/INDIR LED 5050lm |
| SKS14000LE04560 | SKY SUS 14 DIR LED 4560lm |
| SKS14001LE04560 | SKY SUS 14 DIR/INDIR LED 4560lm |
| SKS14000LE05400 | SKY SUS 14 DIR LED 5400lm |
| SKS14001LE05400 | SKY SUS 14 DIR/INDIR LED 5400lm |
| SKS14000LE06310 | SKY SUS 14 DIR LED 6310lm |
| SKS14001LE06310 | SKY SUS 14 DIR/INDIR LED 6310lm |
| CCT | Optics | CRI | Control gear | Colour | Accessories | |||||
| Tunable White 3000K – 6000K | DMP | 80 | ECG | white | 3-layer optical system | |||||
| 3000K | DO | 90 | DALI | grey | M 1h | |||||
| 4000K | DSI | black | M 3h | |||||||
| 5700K (on request) | HNT 05 | |||||||||
| wieland 3p | ||||||||||
| wieland 5p |
