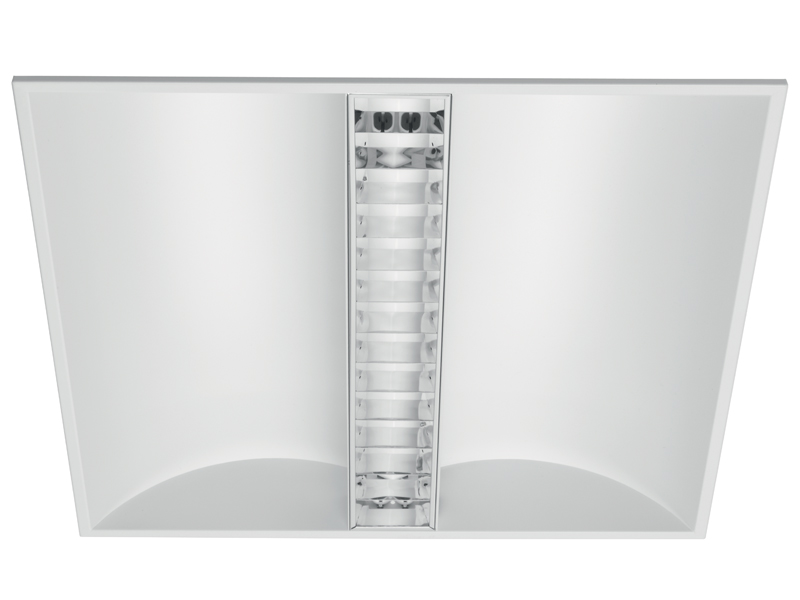

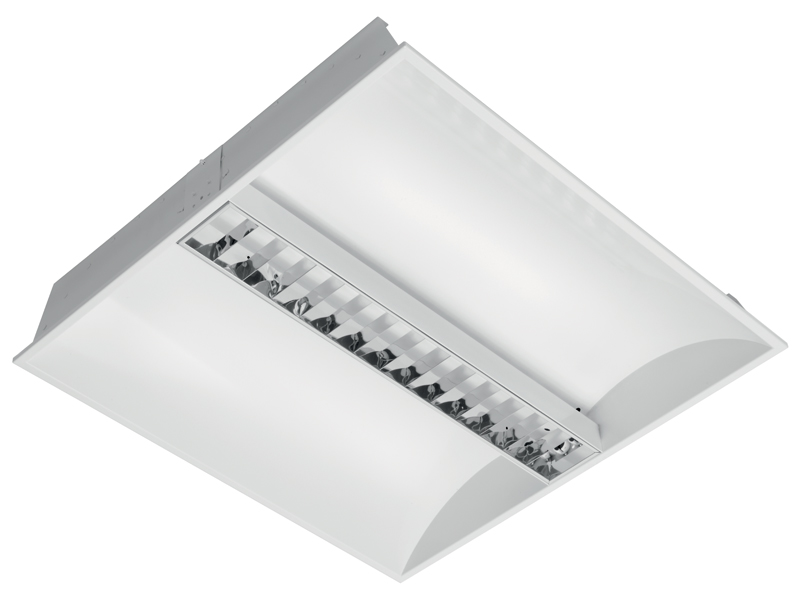

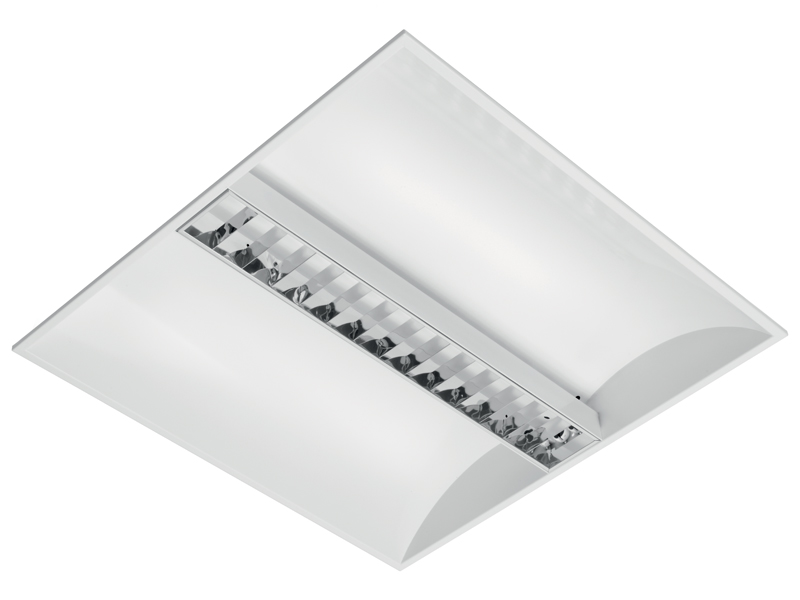

SOFT SL RT600

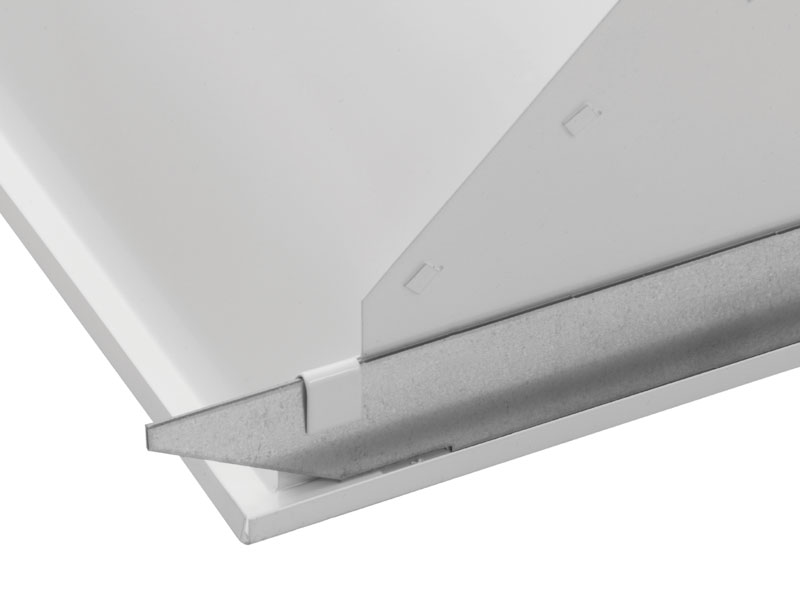

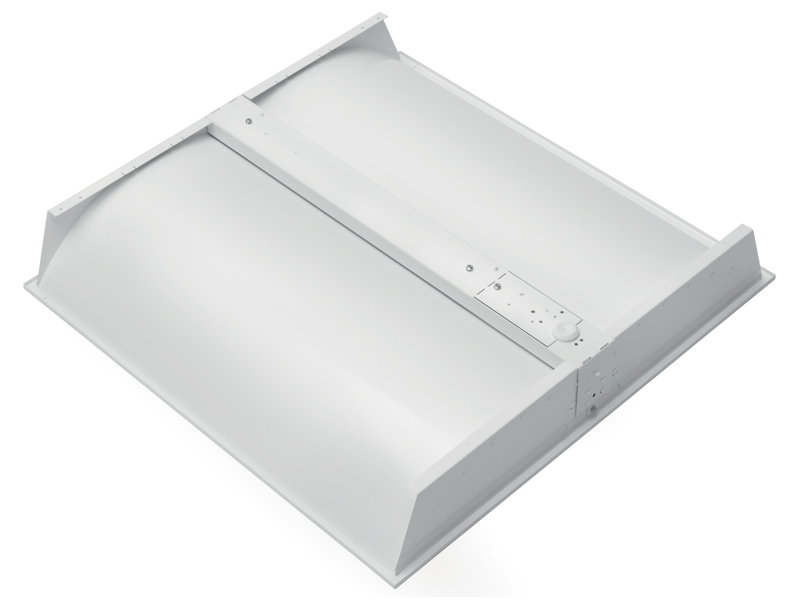

Recessed luminaire with parabolic louvre for TC-L and T5 lamps with direct lighting characteristics. Combined distribution of luminous flux ensures glare-free illumination without big contrasts, ideal for application with high demand for visual comfort. Minimalistic shades increase efficiency of lighting fixture. Housing of luminaire is made of sheet steel of thickness 0,6mm. Standard surface treatment – white powder coated colour (RAL 9003).

Lamp	TC-L/T5
Cooling	2G11/G5
Class	I
Ingress protection	IP20
Weight	4,7-9,1kg

INSTALLATION TYPE

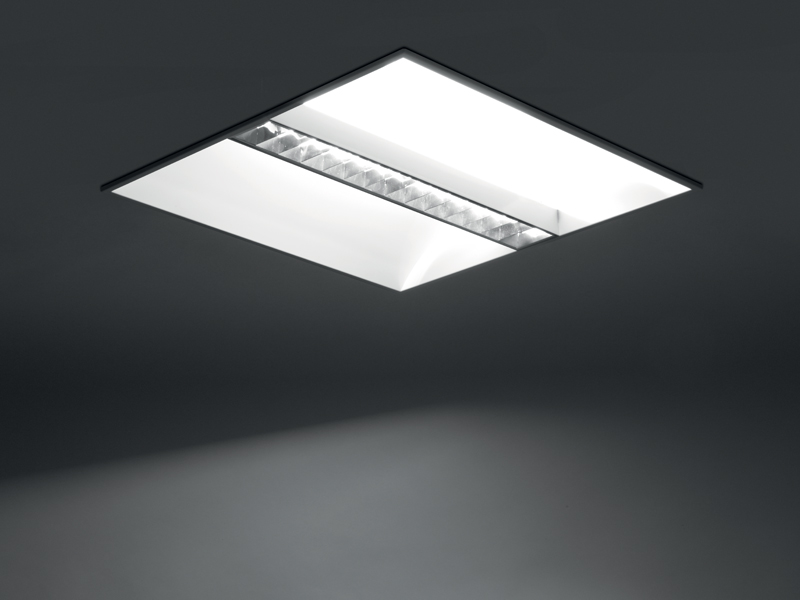

• RT600 (recessed) – recessed luminaire, ceiling with visible T-profile, module 600×600
• R – recessed luminaire, plasterboard ceilings

OPTICAL SYSTEM
• PSL (parabolic specular louvre) – polished, anodized, aluminium, double parabolic louvre with glare prevention
• PML (parabolic matt louvre) – matt, anodized, aluminium, double parabolic louvre

ELECTRICAL EQUIPMENT
• electronic control gear for fluorescent lamps TC-L/T5
• lamp holders 2G11/G5
• 3-pole screwless terminal block with strain relief, max. 2,5mm2
• cable opening entry completed with cable gland
• through wiring possibility

OPTIONAL EQUIPMENT/ACCESSORIES
• lamps included in luminaire
• wired with emergency unit (1 or 3h)
• wired with multi-watt control gear
• wired with dimmable control gear (DIM 1-10V, DSI or DALI)
• fast connector (Wieland, Wago, Isodom)

SPECIFICATION

Type	A (mm)	B (mm)	H (mm)	kg
SOFT SL RT600 TC-L 1x40W	595	595	101	4,7
SOFT SL RT600 TC-L 1x55W	595	595	101	4,7
SOFT SL RT600 T5 2x14W	595	595	101	4,7
SOFT SL RT600 T5 2x24W	595	595	101	4,7
SOFT SL RT600 T5 2x28W	1195	595	101	9,1
SOFT SL RT600 T5 2x54W	1195	595	101	9,1

Code	Type
SO80RT60TCL1040	SOFT SL RT600 TC-L 1x40W
SO80RT60TCL1055	SOFT SL RT600 TC-L 1x55W
SO80RT600T52014	SOFT SL RT600 T5 2x14W
SO80RT600T52024	SOFT SL RT600 T5 2x24W
SO80RT600T52028	SOFT SL RT600 T5 2x28W
SO80RT600T52054	SOFT SL RT600 T5 2x54W

Control gear	Optics	Colour	Lamp	Emergency unit	Accessories

ECG	PSL	RAL 9003	40W/827	M 3h	Wieland 3p
DIM 1-10V	PML		40W/830		Wago 3p
DSI			40W/840		Isodom
DALI			40W/865
			40W/954
			55W/827
			55W/830
			55W/840
			55W/865
			55W/930
			55W/940
			55W/954
			14W/827
			14W/830
			14W/835
			14W/840
			14W/865
			24W/827
			24W/830
			24W/835
			24W/840
			24W/865
			24W/880
			24W/940
			24W/965
			28W/827
			28W/830
			28W/835
			28W/840
			28W/865
			54W/827
			54W/830
			54W/835
			54W/840
			54W/865
			54W/880
			54W/940
			54W/965
