SOFT V01 RT600

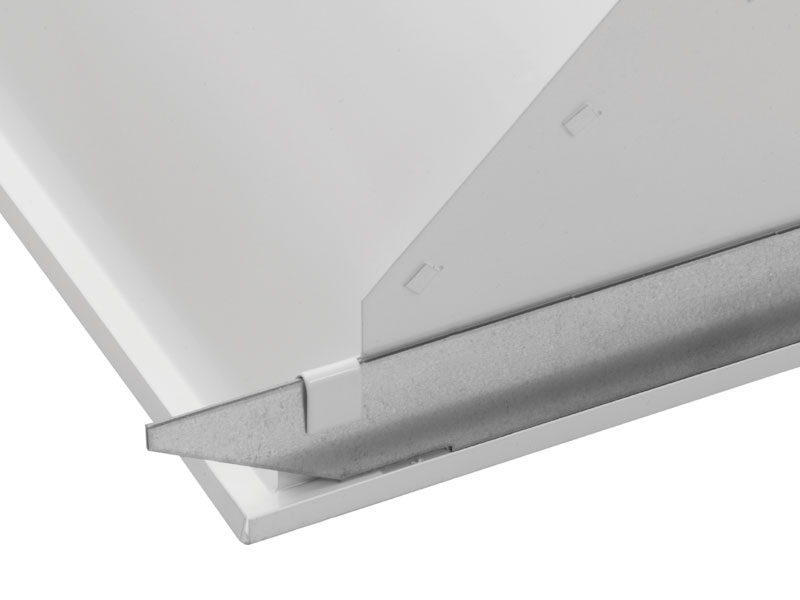

Recessed luminaire for TC-L lamps with direct lighting characteristics. Bended reflectors provide diffused light distribution. Light sources are covered with shade made of solid sheet steel. Construction solution of the lampshade allows easy and tool-free access to lamps. Housing of luminaire is made of sheet steel of thickness 0,6mm. Standard surface treatment – white powder coated colour (RAL 9003).

Lamp	TC-L
Lamp holder	2G11
Class	I
Ingress protection	IP20
Weight	4,7kg

INSTALLATION TYPE
• RT600 – recessed luminaire, ceiling with exposed grids, module size 600×600
• R – recessed luminaire

OPTICAL SYSTEM

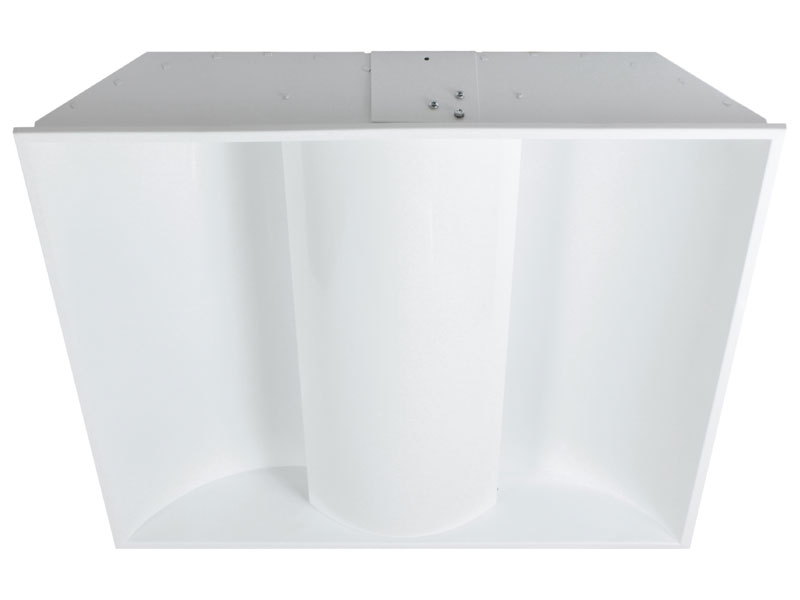

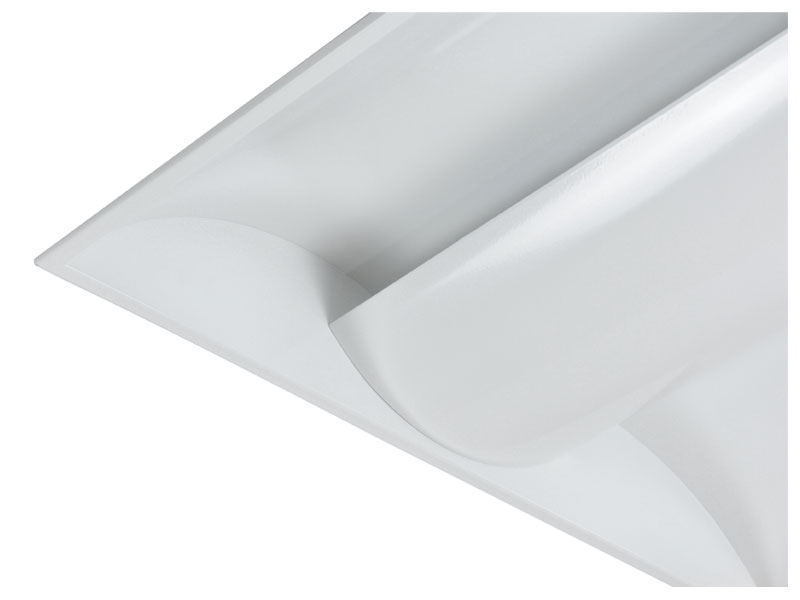

• V01 – lampshade made of solid sheet steel

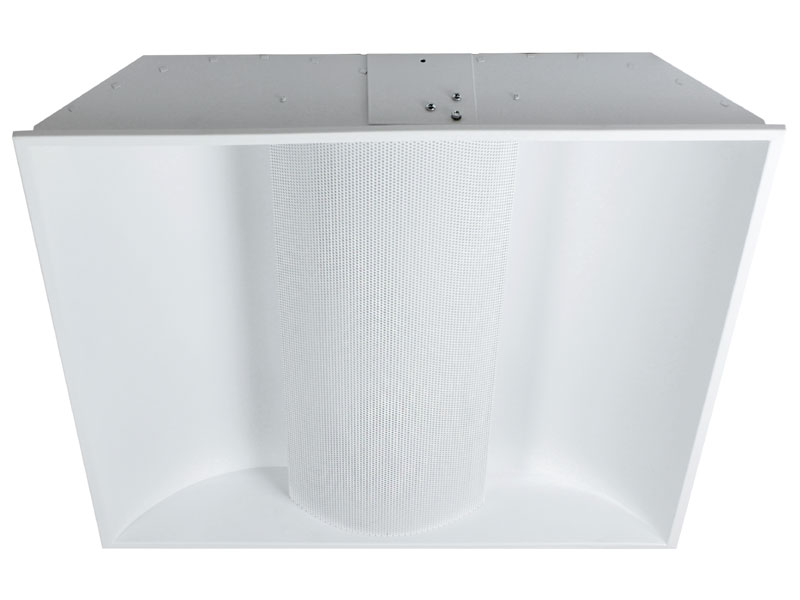

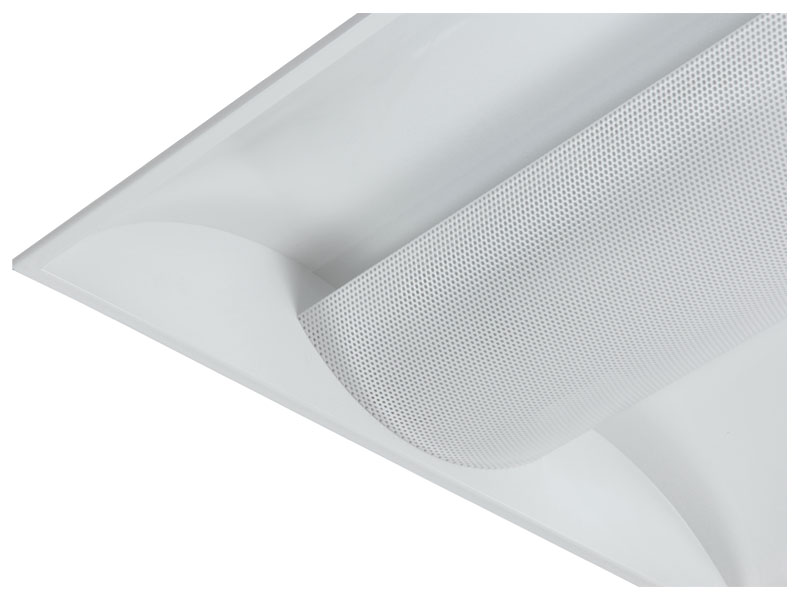

• V01-P – lampshade made of perforated sheet steel with diffuse foil

ELECTRICAL EQUIPMENT
• electronic control gear
• lamp holders 2G11
• 3-pole screwless terminal block with strain relief, max. 2,5mm2, cable opening entry completed with cable gland
• through wiring possibility

OPTIONAL EQUIPMENT/ACCESSORIES
• lamps included in luminairewired with emergency unit (1 or 3h)
• wired with multi-watt control gear
• wired with dimmable control gear (DIM 1-10V, DSI or DALI)
• fast connector (Wieland, Wago, Isodom)

SPECIFICATION

Type	A (mm)	B (mm)	H (mm)	kg
SOFT V01 RT600 TC-L 2x40W	595	595	101	4,7
SOFT V01 RT600 TC-L 2x55W	595	595	101	4,7
SOFT V01-P RT600 TC-L 2x40W	595	595	101	4,7
SOFT V01-P RT600 TC-L 2x55W	595	595	101	4,7

Code	Type
SO10RT60TCL2040	SOFT V01 RT600 TC-L 2x40W
SO10RT60TCL2055	SOFT V01 RT600 TC-L 2x55W
SO1PRT60TCL2040	SOFT V01-P RT600 TC-L 2x40W
SO1PRT60TCL2055	SOFT V01-P RT600 TC-L 2x55W

Control gear	Optics	Colour	Lamp	Emergency unit	Accessories

ECG		RAL 9003	40W/827	M 3h	Wieland 3p
DIM 1-10V			40W/830		Wago 3p
DSI			40W/840		Isodom
DALI			40W/865
			40W/954
			55W/827
			55W/830
			55W/840
			55W/865
			55W/930
			55W/940
			55W/954

SOFT V01 RT600 – EN
