SPARTAN EVO RT600
Recessed solution for premium class office lighting with high-efficient LED modules, dedicated for installation into T-bar ceilings, plasterboard ceilings or any other type of false ceilings.

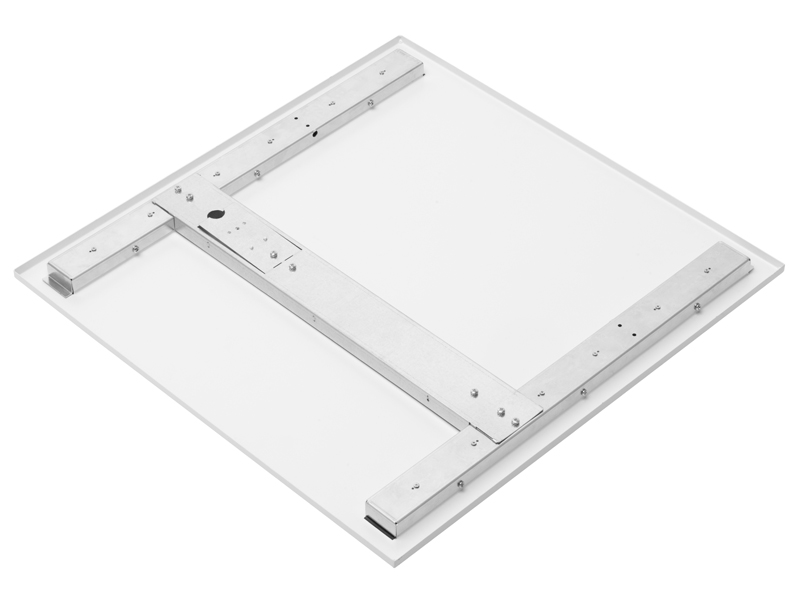

Luminaire housing made of 0,6mm sheet steel, white powder coated finish (RAL9003). Upper part of the luminaire made of aluminium plate, that serves as passive heat sink for employed LED modules. Increased protection of the optical part against dirt (IP40). Dark Light concept with UGR <16.
| Lamp | LED |
| Cooling | PASSIVE |
| Class | I |
| Ingress protection | IP20 |
| Weight | 3kg |
INSTALLATION TYPE
• RT600 – recessed luminaire, ceiling with exposed grids, module size 600×600
• RT625 – recessed luminaire, ceiling with exposed grids, module size 625×625
• R – recessed luminaire, plasterboard ceiling
OPTICAL SYSTEM

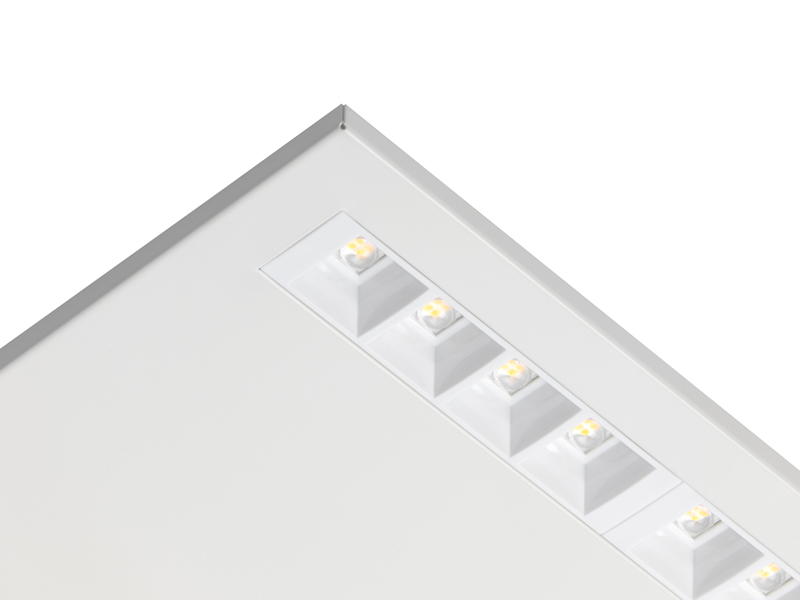

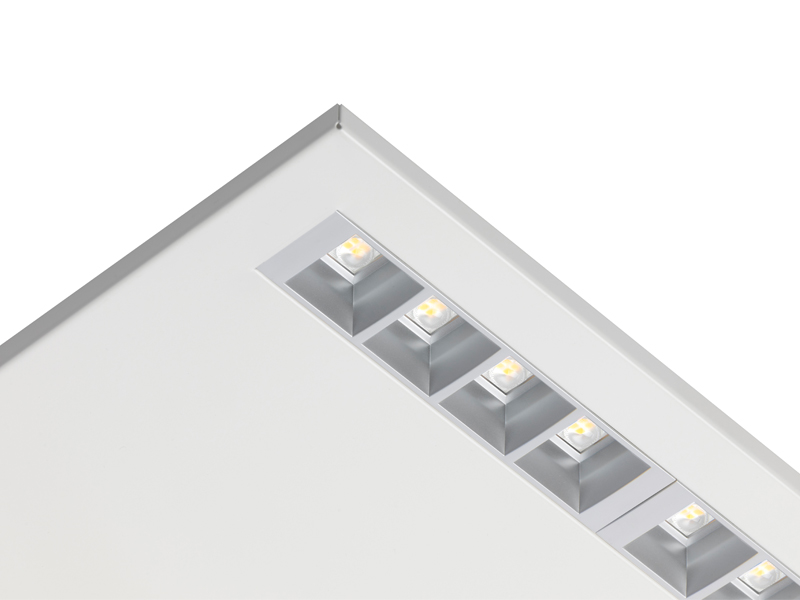

Discreet low glare solution combines square reflector elements and internal lenses for glare-free light. Optical system is made of PC/ABS, available in piano black or white finish. Internal lenses made of PMMA. Suitable for VDU workstations: luminance of light emitting area is in accordance with EN 12464-1.

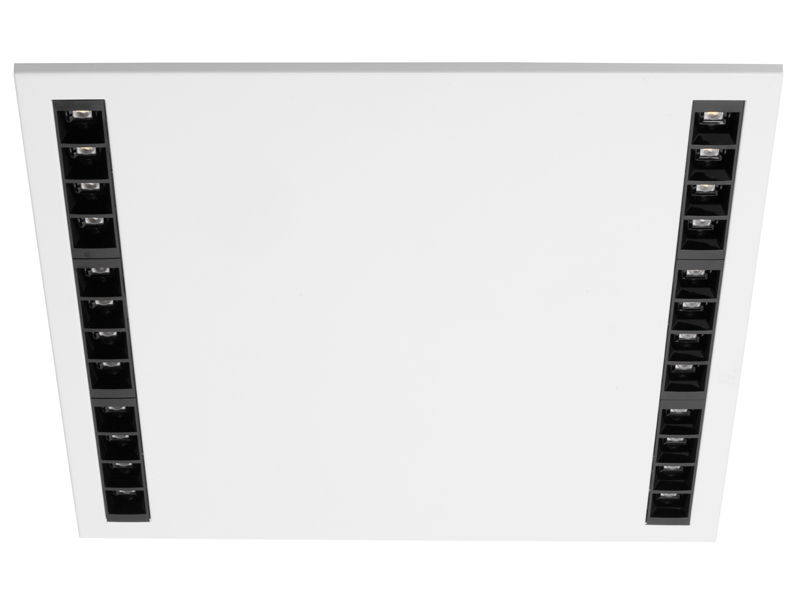

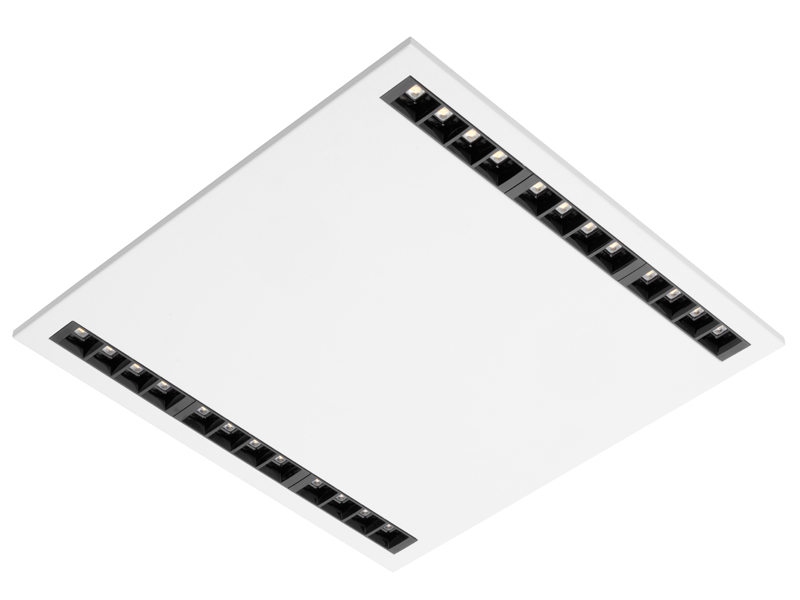

• BL – black

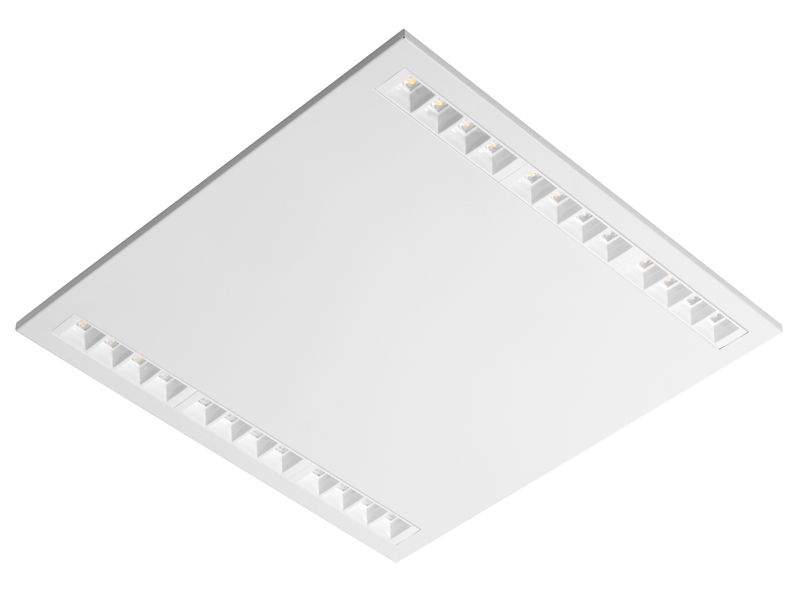

• WH – white
ELECTRICAL EQUIPMENT
• linear LED modules fixed inside aluminium housing
• integrated electronic LED driver
• terminal block with strain relief, max. 2,5mm2
OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (DSI, DALI)
• various colour finishing
• fast connectors (Wieland, Wago, Isodom)
SPECIFICATION
| Type | System power (W) | Equivalent | A (mm) | B (mm) | H (mm) | kg |
| SPARTAN EVO RT600 LED 3730lm | 31 | 4x14W T5 | 595 | 595 | 24 | 3 |
| SPARTAN EVO RT600 LED 4320lm | 36 | 2x28W T5 | 1195 | 295 | 24 | 3 |
*net lumen output of the luminaire by 4000K
| Code | Type |
| ST20RT60LE03730 | SPARTAN EVO RT600 LED 3730lm |
| ST20RT60LE04320 | SPARTAN EVO RT600 LED 4320lm |
| CCT | Optics | CRI | Control gear | Colour | Accessories | |||||
| 3000K | BL | 80 | ECG | M 3h | ||||||
| 4000K | WH | 90 | DALI | M 1h | ||||||
| AL | DIM 1-10V |
