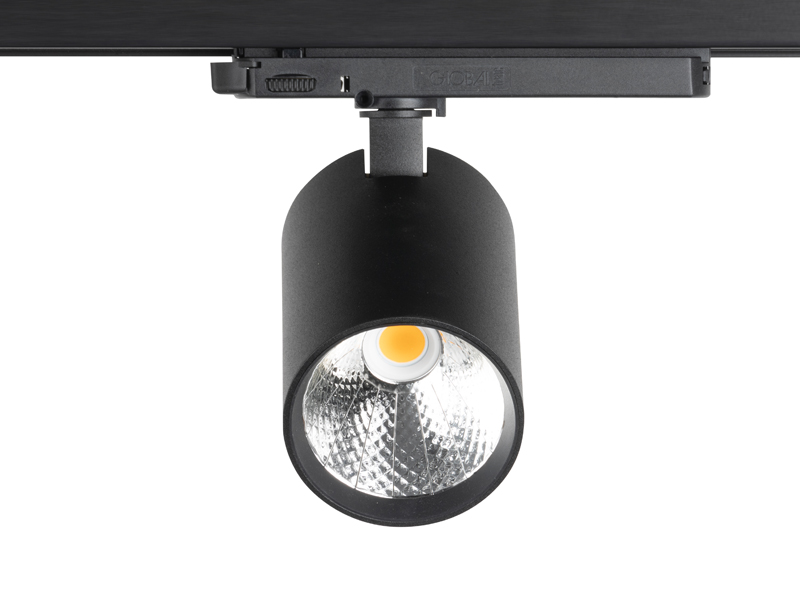

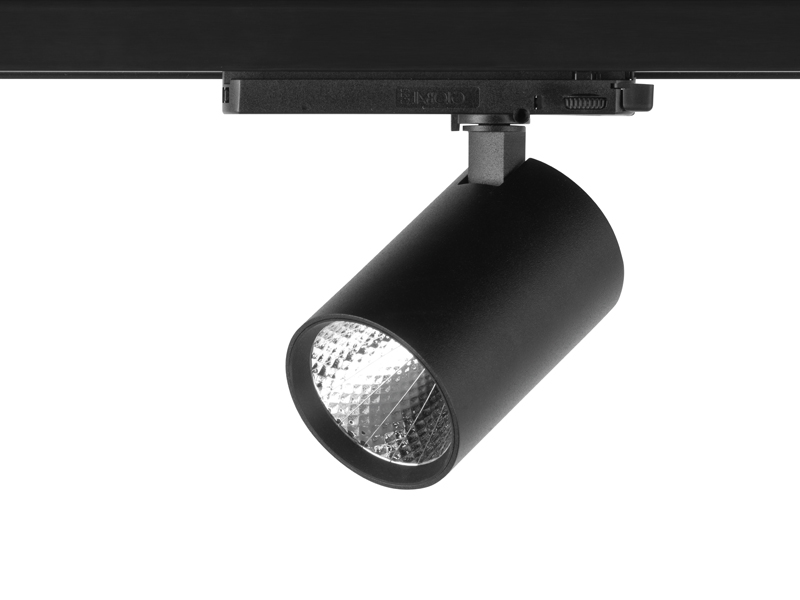

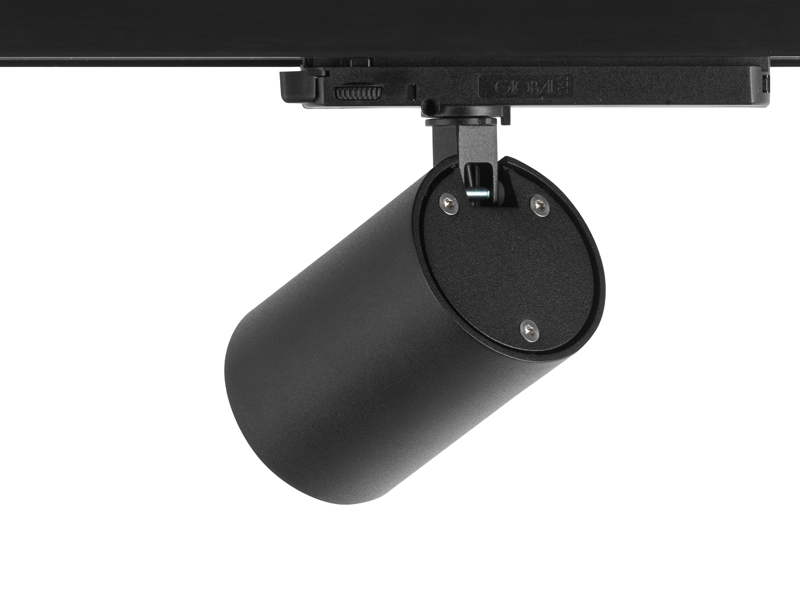

SPOTTER II TRACK
High output adjustable (90o/350o) track mounted spotlight. Passive heat sink. Quality die cast construction with pre wired driver. Available in CRI 92 where colour rendering is paramount or CRI 80+ for general lighting applications. Zero UV or IR. Cool running allowing safe and simple aiming. Lockable tilt. Three circuit track adaptor as standard.
Mounting to three circuit tracks Global Trac Pro XTS/XTSF or dimmable tracks Global Trac Pulse XTSC/XTSCF.
| Lamp | LED |
| Cooling | PASSIVE |
| Class | I |
| Ingress protection | IP20 |
| Weight | 0,85kg |
INSTALLATION TYPE
• TRACK – track systems
OPTICAL SYSTEM
• RSS – specular symmetric reflector made of MIRO Silver polished aluminium, available in 19°, 24°, 33° and 64° beam angle.
Narrow beam options (19° and 24°) provides high accent factor.
ELECTRICAL EQUIPMENT
• electronic LED driver
• three circuit track adaptor GA-016_G2
OPTIONAL EQUIPMENT/ACCESSORIES
• RAL 9016 white
• RAL9005 black
• RAL9006 silver colour finish
SPECIFICATION
| Type | Luminous flux (lm) | Power (W) | kg | ||
| SPOTTER II TRACK CRI80 | 3500lm | 28 | 0,85 | ||
| SPOTTER II TRACK CRI90 | 3000lm | 28 | 0,85 | ||
| Code | Type |
| SP20TR00LE03500 | SPOTTER II TRACK CRI80 |
| SP20TR00LE03000 | SPOTTER II TRACK CRI90 |
| CCT | Optics | CRI | Control gear | Colour | Accessories | |||||
| 3000K | 19° | 80 | ECG | white | ||||||
| 4000K | 24° | 90 | DALI | black | ||||||
| 33° | silver |
