SQUARE DIR

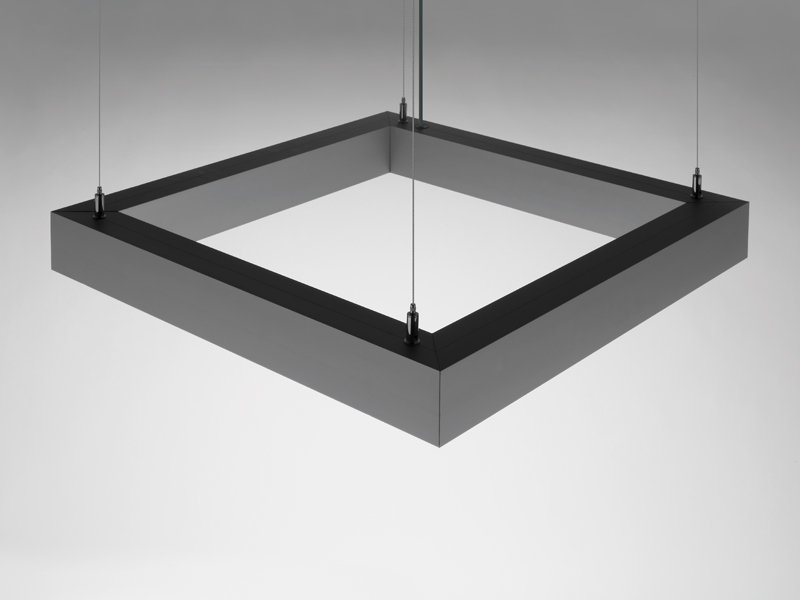

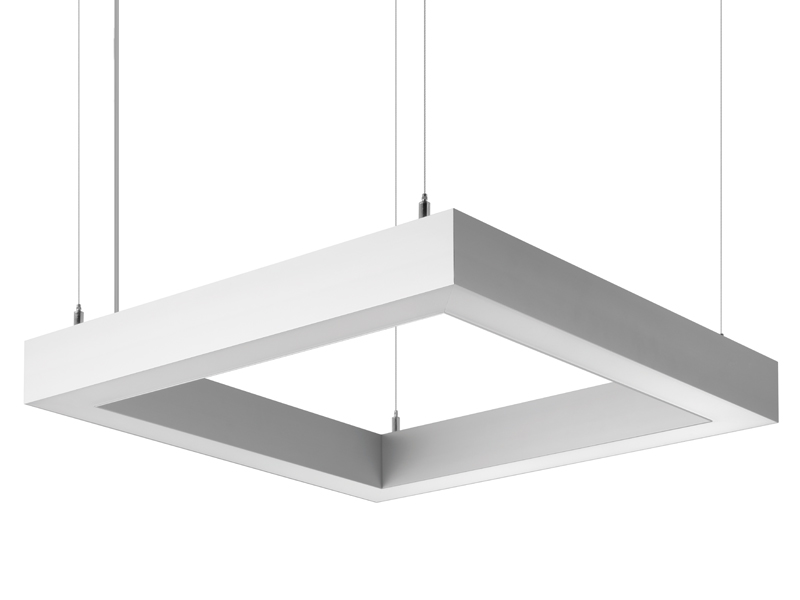

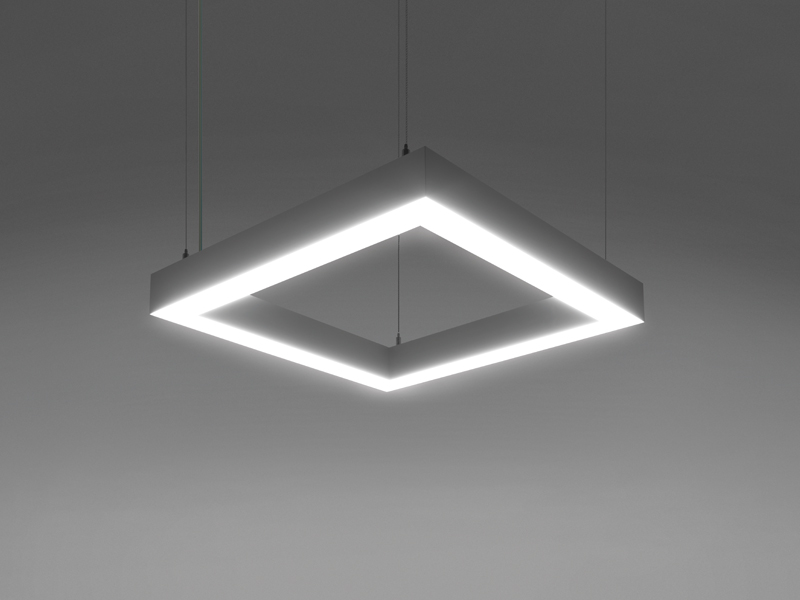

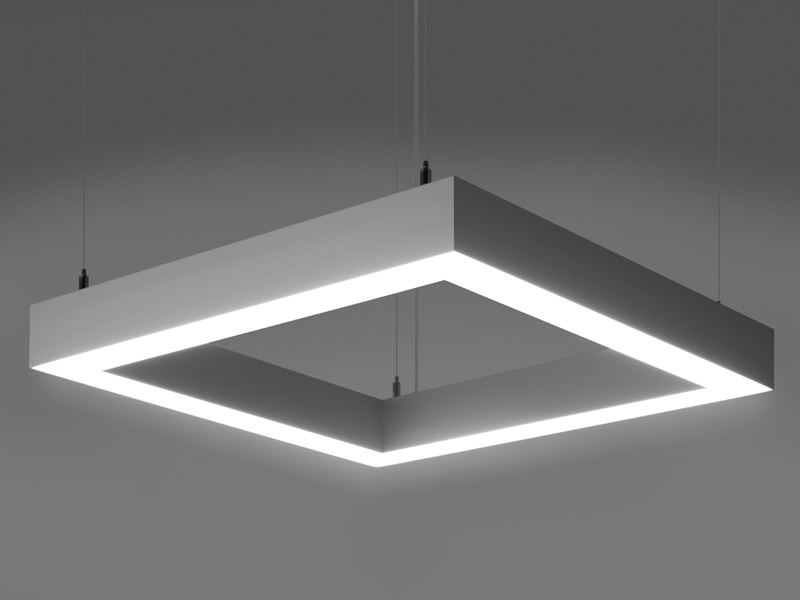

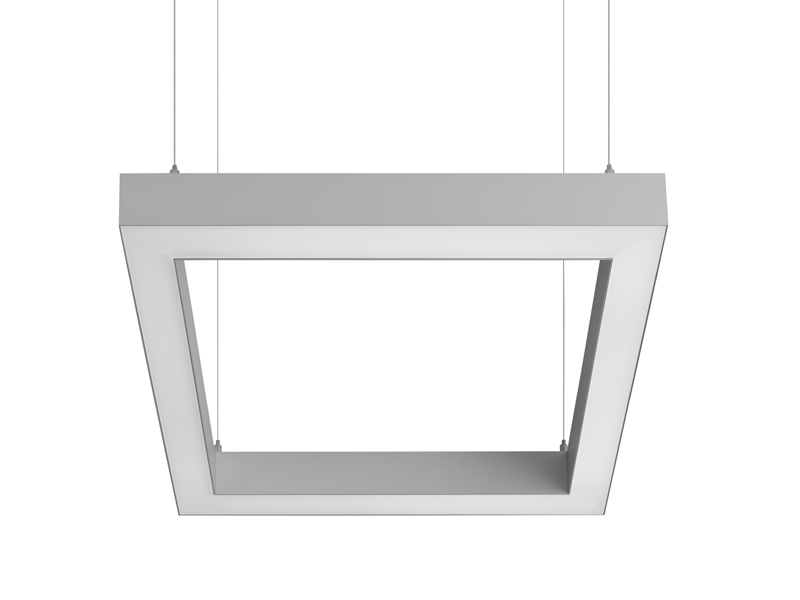

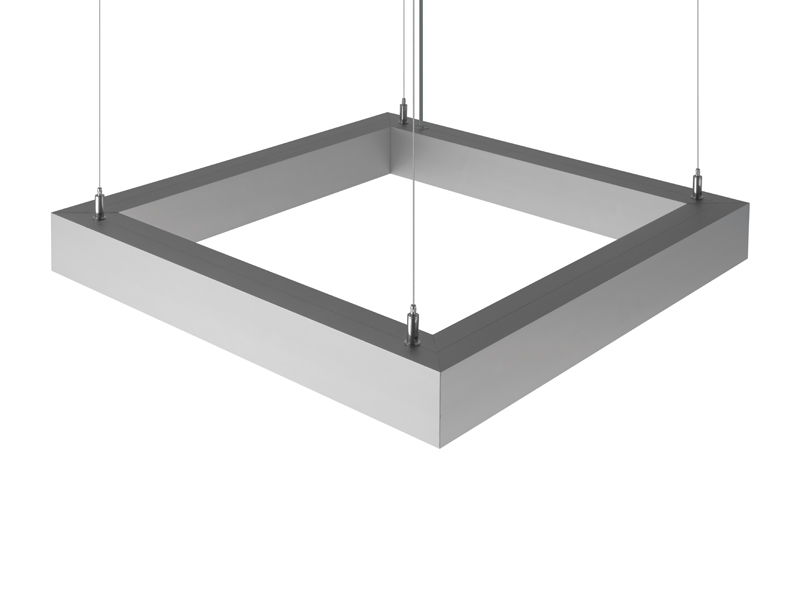

Suspended square-shaped LED luminaire with direct light distribution. Luminaire housing made of extruded aluminium profiles, joined together by corner joints. Eloxed high quality finish. Opal diffuser with high light transmission, nice diffuse light characteristics. Luminaire is designed for suspended or surface mounted installation. Suspended versions standardly equipped with adjustable mechanism for changing of the suspension height.
Available in three basic dimensional executions, different dimensions available on request.
| Lamp | LED |
| Cooling | PASSIVE |
| Class | I |
| Ingress protection | IP20 |
| Weight | 6-20kg |
INSTALLATION TYPE
• SUR – mounting on solid surfaces
• SUS – suspended luminaire
OPTICAL SYSTEM
• DO – opal diffuser made of PMMA
ELECTRICAL EQUIPMENT
• LED modules fixed on internal aluminium mounting plate
• electronic LED driver
• 3 or 5-pole screwless terminal block with strain relief, max. 2,5mm2
• cable opening entry completed with cable gland
• transparent supply cable
OPTIONAL EQUIPMENT
• wired with emergency unit (1 or 3h)
• wired with dimmable electronic control gear (DSI, DALI)
• various colour finish
SPECIFICATION
| Type | System power (W) | A/X (mm) | B/Y (mm) | H (mm) | kg |
| SQUARE DIR 6×6 LED 5900lm | 59 | 640/520 | 640/580 | 93 | 6 |
| SQUARE DIR 12×12 LED 11800lm | 118 | 1200/1080 | 1200/1140 | 93 | 12 |
| SQUARE DIR 24×12 LED 17600lm | 176 | 2320/1700 | 1200/1140 | 93 | 20 |
*net lumen output of the luminaire by 4000K
| Code | Type |
| SQ100SUSLE05900 | SQUARE DIR SUS 6×6 LED 5900lm |
| SQ110SUSLE11800 | SQUARE DIR SUS 12×12 LED 11800lm |
| SQ110SUSLE17600 | SQUARE DIR SUS 24×12 LED 17600lm |
| CCT | Optics | CRI | Control gear | Colour | Accessories | |||||
| 4000K | DO | 80 | ECG | elox | M1h | |||||
| 3000K | 90 | DIM 1-10V | biela | M3h | ||||||
| 6500K | DSI | čierna | ||||||||
| DALI |
