VECTOR 45 DIF

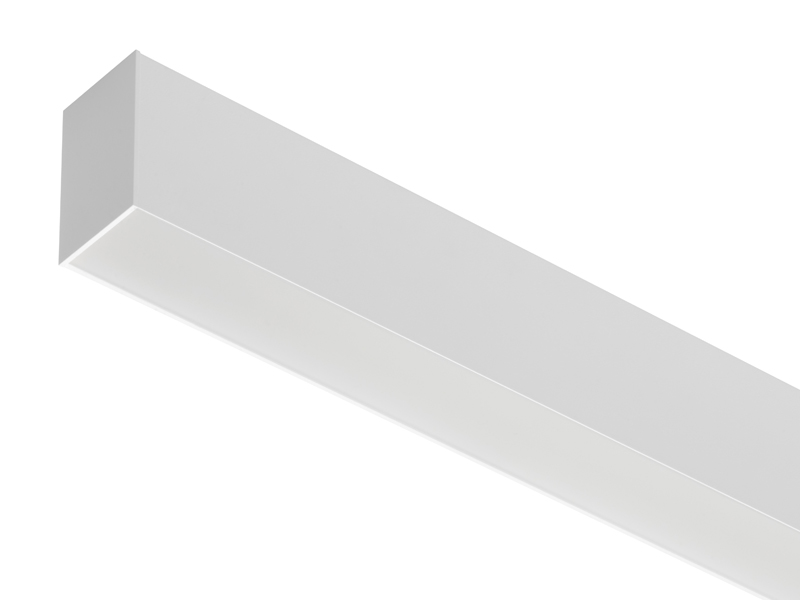

Slim LED luminaire with direct or direct/indirect light distribution, designed for simplicity and flexibility. Could be mounted as an individual unit or into continuous lines. Opal diffuser with high light transmission, nice diffuse light characteristics. LED modules in the upper part of the luminaire are covered with opal diffuser for even ceiling illumination. Luminaire housing made of extruded aluminium profiles, completed with screwless aluminium end caps. Eloxed high quality finish. Independent control of direct and indirect luminous flux distribution available on request. Lumen output is possible to define individually to suit specific needs of existing application. Luminaire is designed for suspended, surface mounted or wall installation.
| Lamp | LED |
| Cooling | PASSIVE |
| Class | I |
| Ingress protection | IP20 |
| Weight | 3,2-4,4kg |
INSTALLATION TYPE
• SUR – mounting on solid surfaces

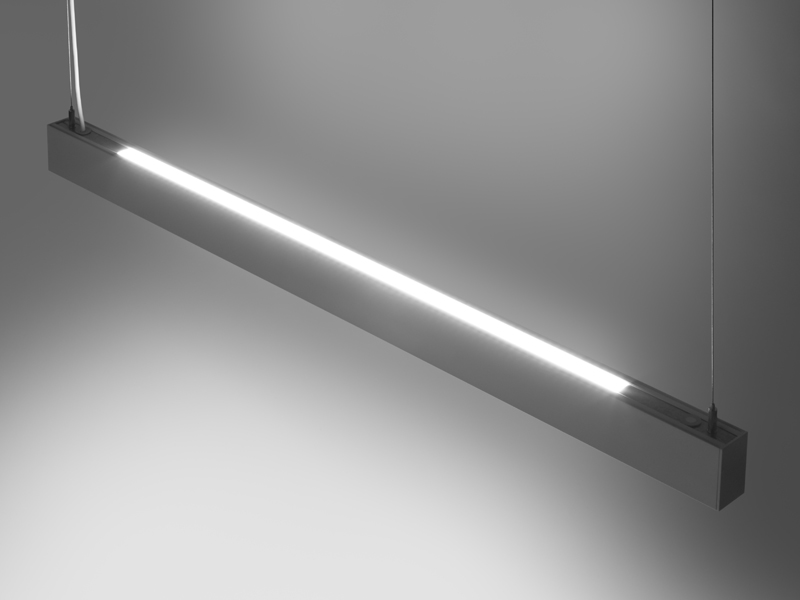

• SUS – suspended luminaire
• WL – wall mounted luminaire
OPTICAL SYSTEM
• DO – opal diffuser made of PC
ELECTRICAL EQUIPMENT
• LED modules fixed on internal removable aluminium mounting plate
• electronic LED driver
• 3 or 5-pole screwless terminal block with strain relief, max. 2,5mm2
• cable opening entry completed with cable gland
OPTIONAL EQUIPMENT
• wireless controllable with a Android / iOS smart device
• wired with emergency unit (1 or 3h)
• wired with dimmable electronic control gear (DSI, DALI)
• white/black colour finish

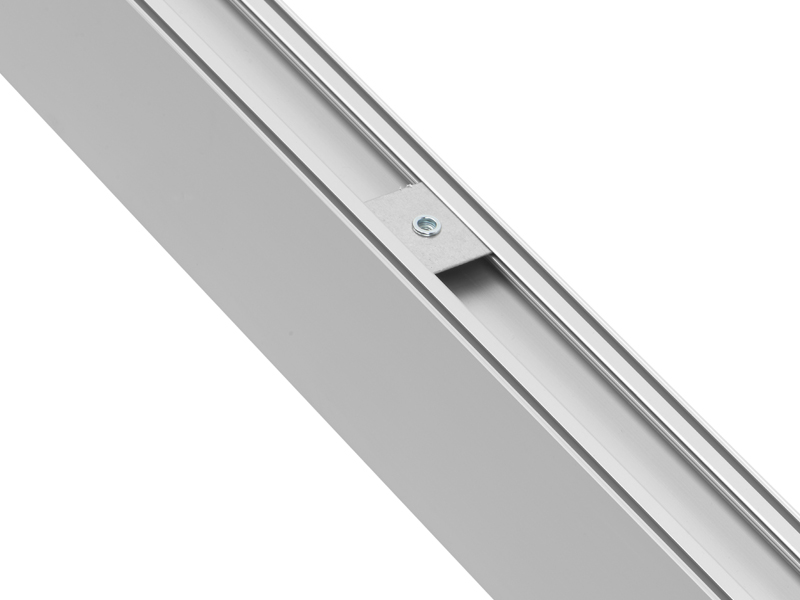

• continuous mounting
• corner joints

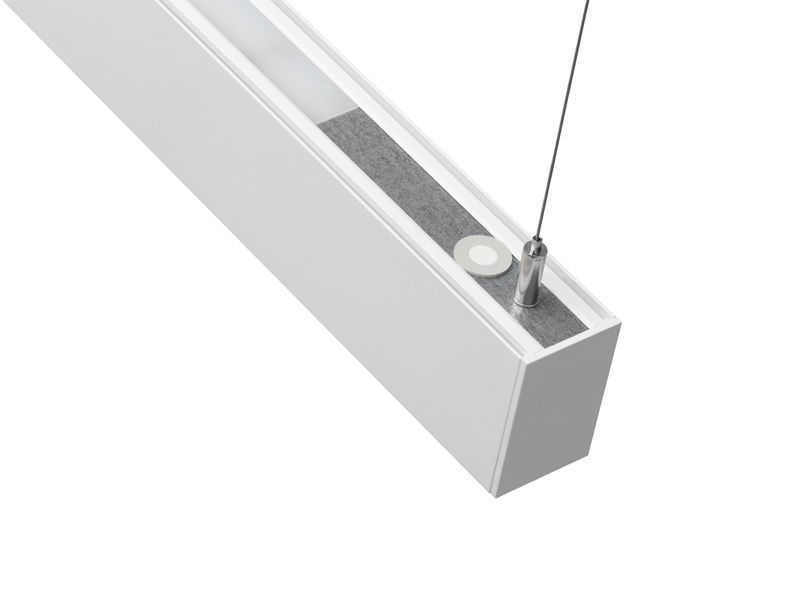

• suspensions

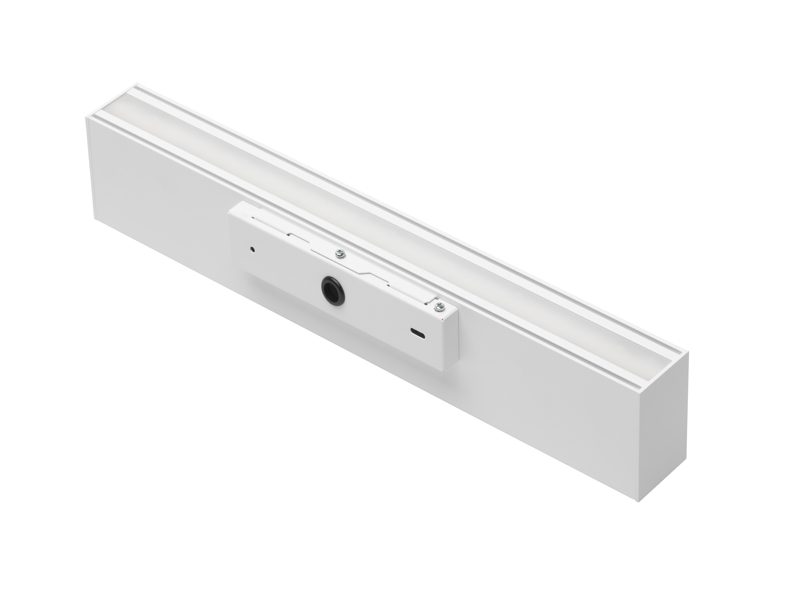

• brackets for wall and surface mounted installation
• transparent supply cable 3 or 5 x1,5mm2
SPECIFICATION
| Type* | System power (W) | A (mm) | B (mm) | H (mm) | kg |
| VECTOR 45 DIR DO 3160lm | 31 | 1126 | 45 | 70 | 3,2 |
| VECTOR 45 DIR DO 3770lm | 37 | 1406 | 45 | 70 | 3,9 |
| VECTOR 45 DIR/INDIR DO 4860lm | 45 | 1126 | 45 | 70 | 3,7 |
| VECTOR 45 DIR/INDIR DO 5640lm | 52 | 1406 | 45 | 70 | 4,4 |
*net lumen output of the luminaire by 4000K
| Code | Type |
| VE4D0000LE03160 | VECTOR 45 DIR DO 3160lm |
| VE4D0000LE03770 | VECTOR 45 DIR DO 3770lm |
| VE4DI000LE04860 | VECTOR 45 DIR/INDIR DO 4860lm |
| VE4DI000LE05640 | VECTOR 45 DIR/INDIR DO 5640lm |
| CCT | Optics | CRI | Control gear | Colour | Accessories | |||||
| 2700-6500K | DO | 80 | ECG | elox gray | M1h | |||||
| 2700K | 90 | DIM 1-10V | black | M3h | ||||||
| 3000K | DSI | white | ||||||||
| 4000K | DALI | |||||||||
| 5000K | ||||||||||
| 6500K |
