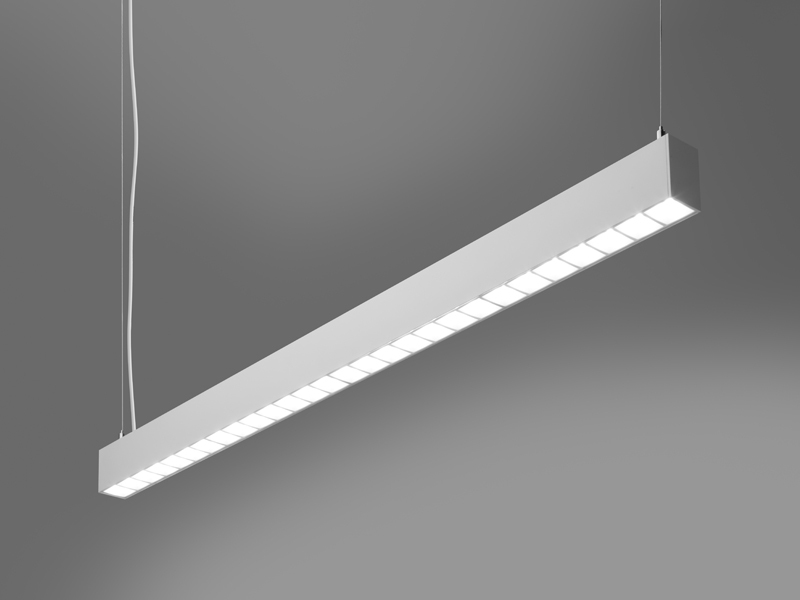

VECTOR 45 EVO

Slim LED luminaire with direct or direct/indirect light distribution, designed for simplicity and flexibility. Could be mounted as an individual unit or into continuous lines. Optical system created by combination of glare eliminating reflectors and highly efficient lenses is designed for premium class office lighting. Thanks to the dark light effect, the light sources are invisible from almost all angles making glare close to non-existent. UGR<16.
Luminaire housing made of extruded aluminium profiles, completed with screwless aluminium end caps. Independent control of direct and indirect luminous flux distribution available on request. Lumen output is possible to define individually to suit specific needs of existing application.

Lamp	LED
Cooling	PASÍVNE
Class	I
Ingress protection	IP20
Weight	3,4-4,6kg

VECTOR 45 (1,3MB)

INSTALLATION TYPE
• SUR – mounting on solid surfaces

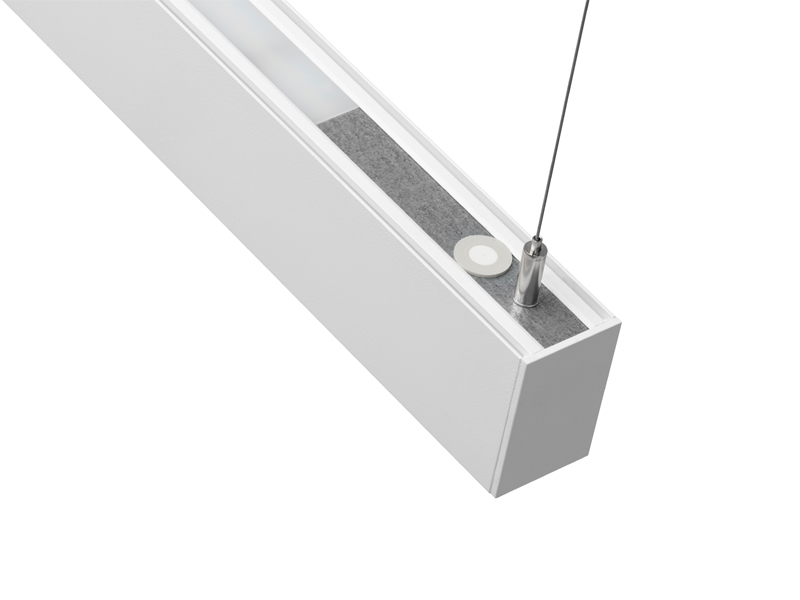

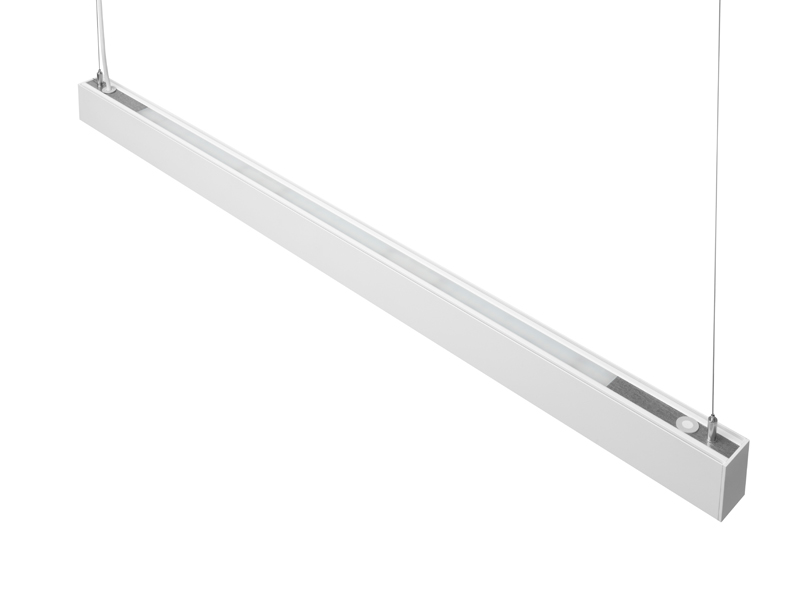

• SUS – suspended luminaire
• WL – wall mounted luminaire

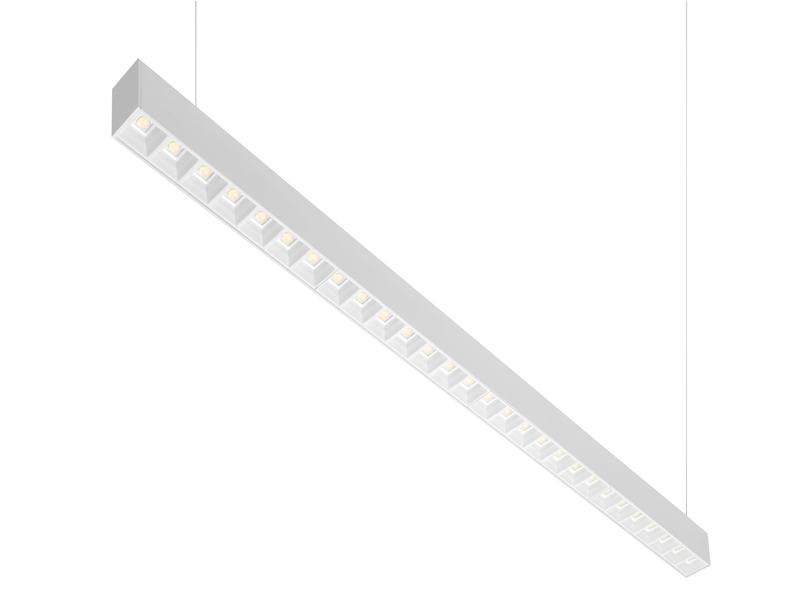

OPTICAL SYSTEM
Discreet low glare solution combines square reflector elements
and internal lenses for glare-free light. Optical system is made of
PC/ABS, available in piano black, white or silver finish. Internal lenses
made of PMMA. Suitable for VDU workstations: luminance of
light emitting area is in accordance with EN 12464-1.
• BL – black reflector
• WH – white reflector
• SI – silver reflector
• AS – asymmetrical beam

ELECTRICAL EQUIPMENT
• LED modules fixed on internal aluminium mounting plate
• electronic LED driver
• 3 or 5-pole screwless terminal block with strain relief, max. 2,5mm2
• cable opening entry completed with cable gland

OPTIONAL EQUIPMENT
• wireless controllable with a Android / iOS smart device
• wired with emergency unit (1 or 3h)
• wired with dimmable electronic control gear (DSI, DALI)
• white/black colour finish

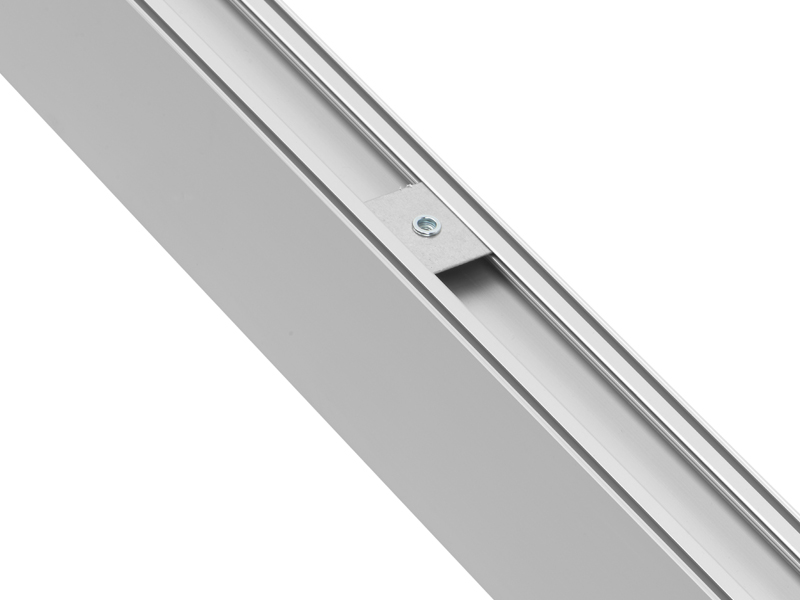

• continuous mounting
• corner joints
• suspensions

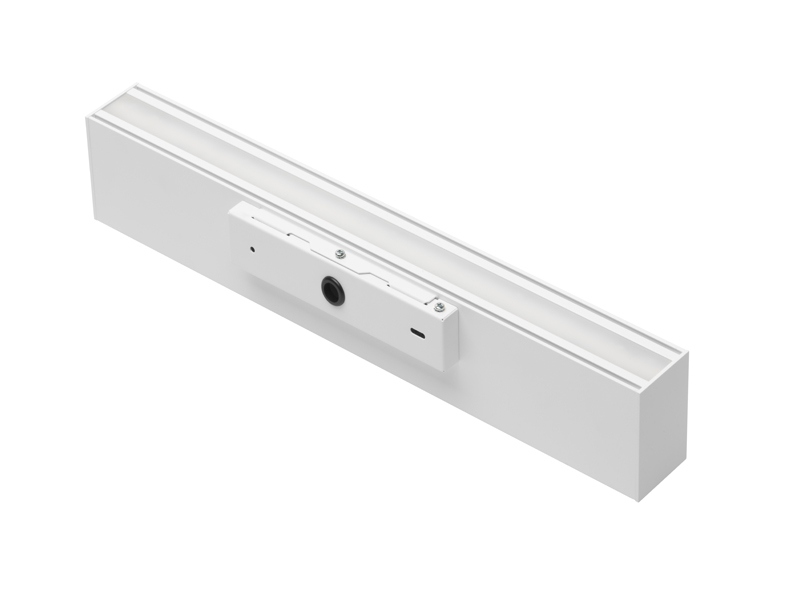

• brackets for wall and surface mounted installation
• transparent supply cable 3 or 5 x1,5mm2

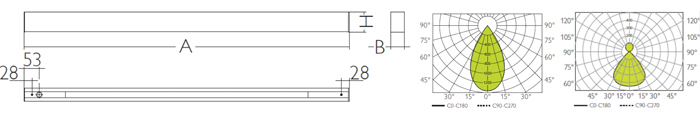

SPECIFICATION

Type*	System power (W)	A/X (mm)	B (mm)	H (mm)	kg
VECTOR 45 DIR EVO 3800lm	30	1126	45	70	3,4
VECTOR 45 DIR EVO 4600lm	37	1406	45	70	4,1
VECTOR 45 DIR/INDIR EVO 5600lm	45	1126	45	70	3,9
VECTOR 45 DIR/INDIR EVO 6400lm	52	1406	45	70	4,6

*net lumen output of the luminaire by 4000K

Code	Type
VE4D0300LE03800	VECTOR 45 DIR EVO 3800lm
VE4D0300LE04600	VECTOR 45 DIR EVO 4600lm
VE4DI300LE05600	VECTOR 45 DIR/INDIR EVO 5600lm
VE4DI300LE06400	VECTOR 45 DIR/INDIR EVO 6400lm
