VECTOR 60 DIF

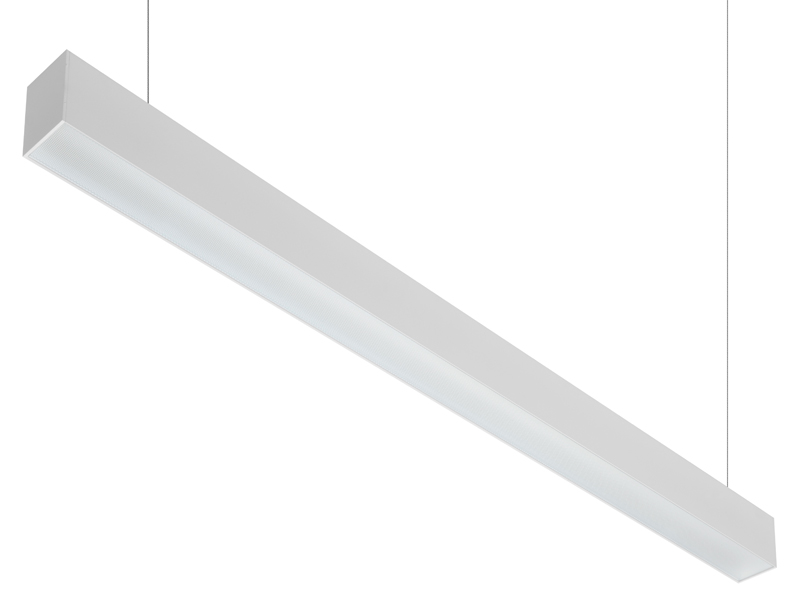

Slim LED luminaire with direct or direct/indirect light distribution, designed for simplicity and flexibility. Could be mounted as an individual unit or into continuous lines. Opal diffuser with high light transmission, nice diffuse light characteristics, or microprismatic diffuser.
Luminaire housing made of extruded aluminium profiles, completed with aluminium end caps, screwless on request. Eloxed high quality finish. Luminaire is designed for suspended or surface mounted installation.

Lamp	LED
Cooling	PASSIVE
Class	I
Ingress protection	IP20
Weight	3,2-4,4kg

VECTOR en (2,6MB)

INSTALLATION TYPE
• SUR – mounting on solid surfaces
• SUS – suspended luminaire
• WL – wall mounted luminaire

OPTICAL SYSTEM
• DO – opal diffuser made of PC

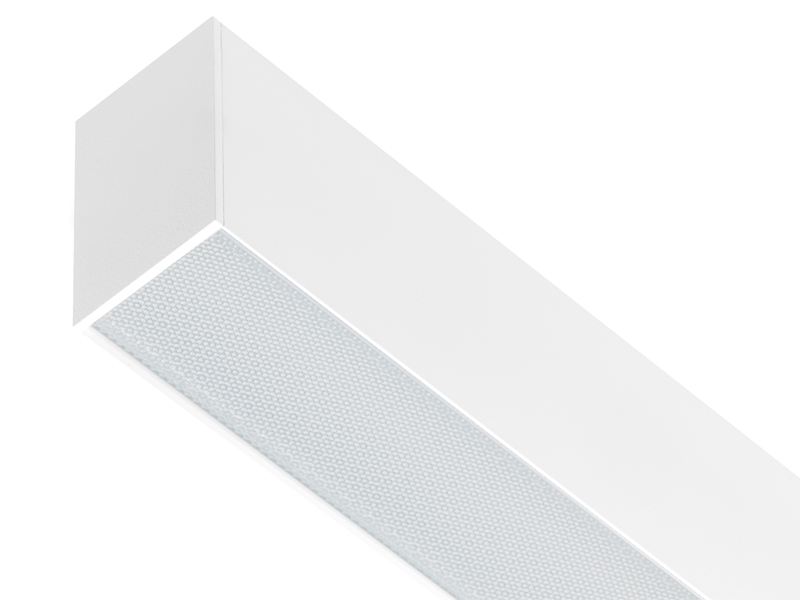

• DMP – microprismatic diffuser made of PC in combination with primary lenses (mounted directly on LED chips)

ELECTRICAL EQUIPMENT
• LED modules fixed on internal aluminium mounting plate
• electronic LED driver
• 3 or 5-pole screwless terminal block with strain relief, max. 2,5mm2
• cable opening entry completed with cable gland

OPTIONAL EQUIPMENT
• wired with emergency unit (1 or 3h)
• wired with dimmable electronic control gear (DSI, DALI)
• white/black colour finish
• continuous mounting
• corner joints

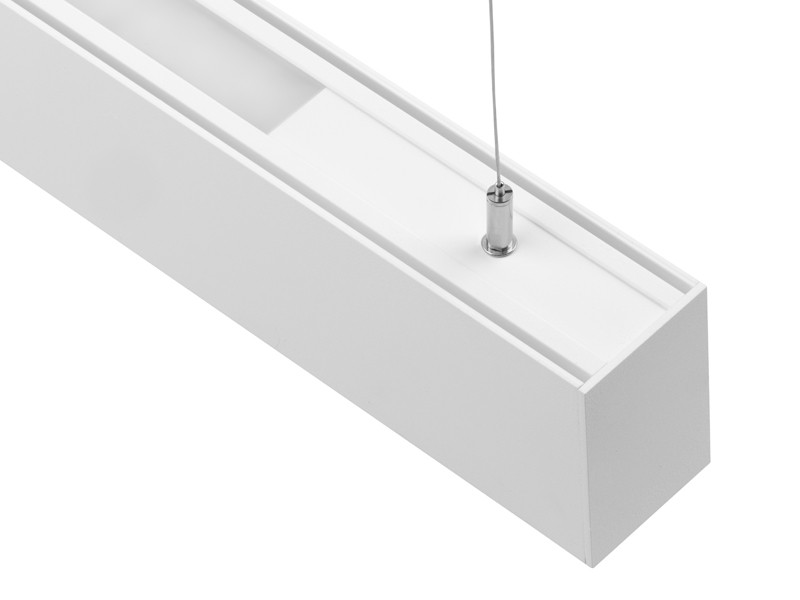

• suspensions

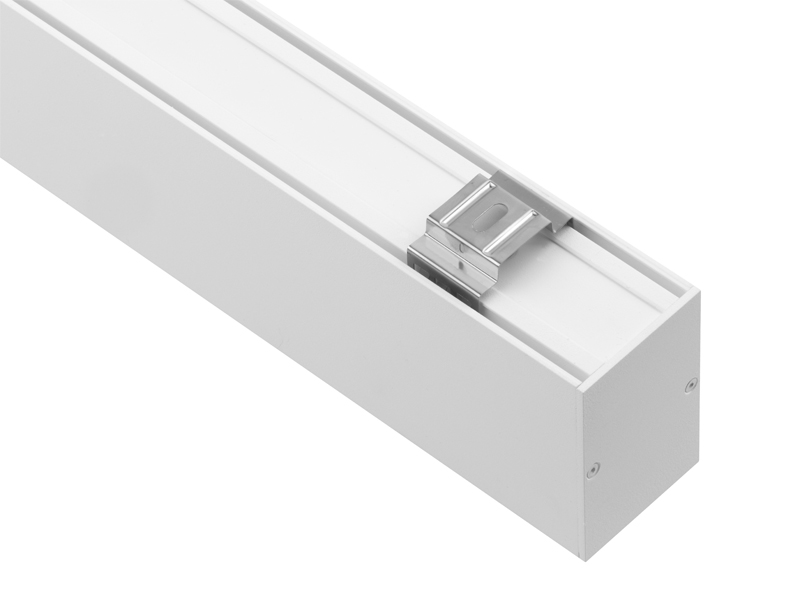

• brackets for wall and surface mounted installation
• transparent supply cable 3 or 5 x1,5mm2

SPECIFICATION

Type*	System power (W)	A/X (mm)	B (mm)	H (mm)	kg
VECTOR 60 DIR DO 3010lm	31	1126/900	61	93	3,2
VECTOR 60 DIR DO 3620lm	37	1406/1180	61	93	3,9

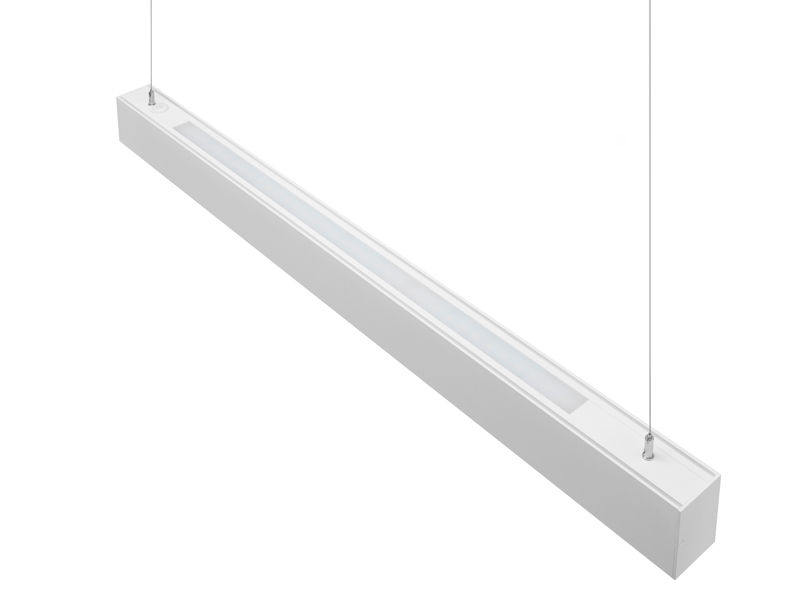

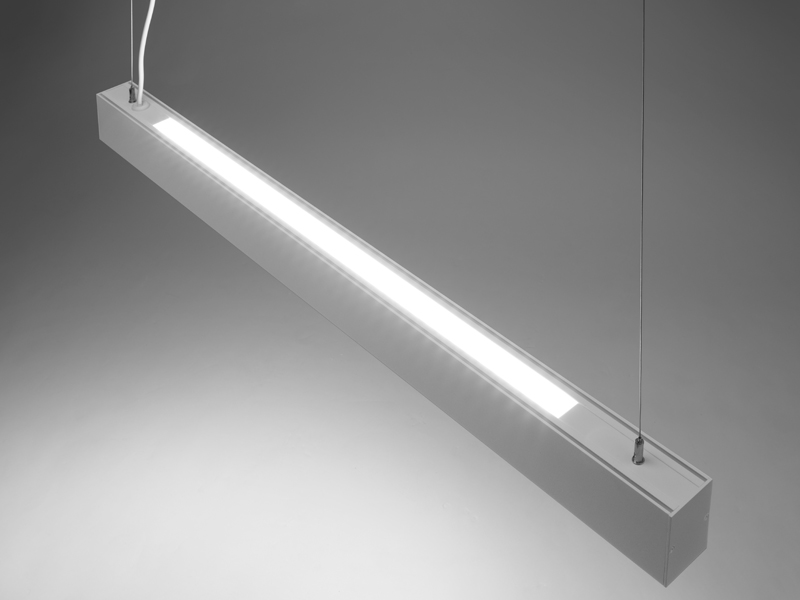

VECTOR 60 DIR/INDIR DO 4820lm	46	1126/900	61	93	3,7
VECTOR 60 DIR/INDIR DO 5430lm	52	1406/1180	61	93	4,4

VECTOR 60 DIR DMP 3300lm	31	1126/900	61	93	3,2
VECTOR 60 DIR DMP 4000lm	37	1406/1180	61	93	3,9
VECTOR 60 DIR/INDIR DMP 5120lm	46	1126/900	61	93	3,7
VECTOR 60 DIR/INDIR DMP 5820lm	52	1406/1180	61	93	4,4

^{*net lumen output of the luminaire by 4000K}

Code	Type
VE6D0000LE03100	VECTOR 60 DIR DO 3010lm
VE6D0000LE03620	VECTOR 60 DIR DO 3620lm
VE6DI000LE04820	VECTOR 60 DIR/INDIR DO 4820lm
VE6DI000LE05430	VECTOR 60 DIR/INDIR DO 5430lm
VE6D0100LE03300	VECTOR 60 DIR DMP 3300lm
VE6D0100LE04000	VECTOR 60 DIR DMP 4000lm
VE6DI100LE05120	VECTOR 60 DIR/INDIR DMP 5120lm
VE6DI100LE05820	VECTOR 60 DIR/INDIR DMP 5820lm

Farba svetla	Optika	CRI	Predradník	Farba	Príslušenstvo

4000K	DO	80	ECG	prírodný elox	M1h
2750K	DMP	90	DSI	biela	M3h
3000K			DALI	čierna
5000K
6500K

VECTOR 60
