VECTOR 60 L

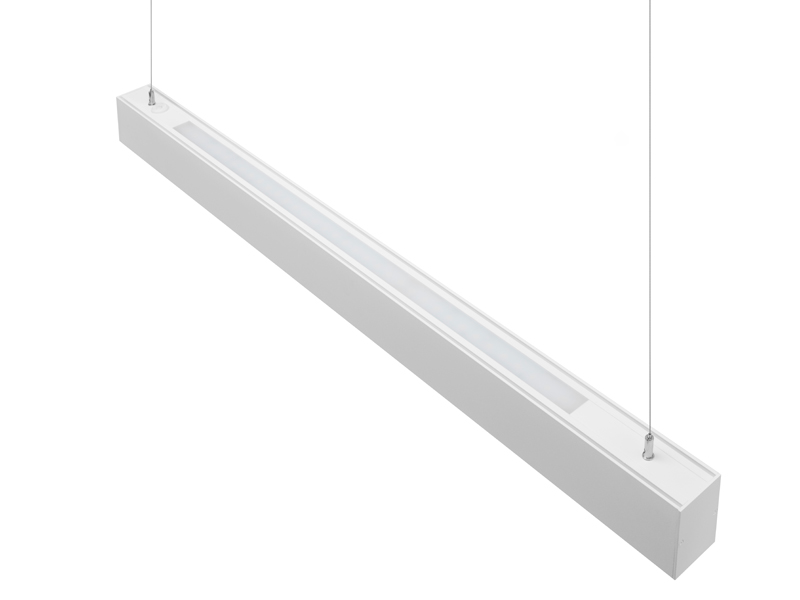

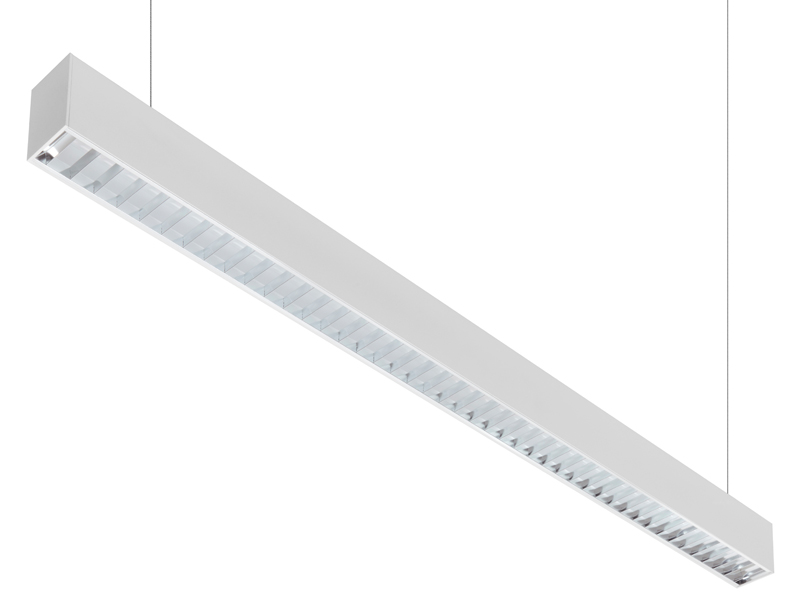

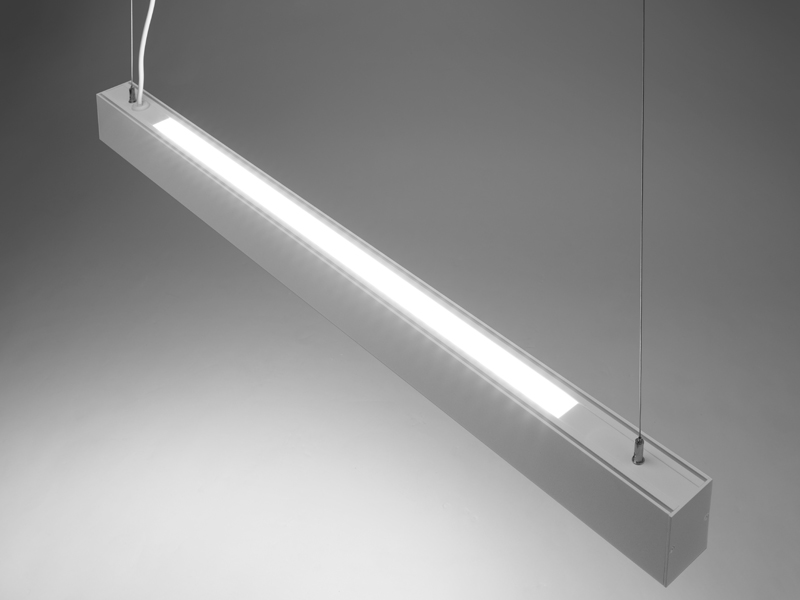

Slim LED luminaire with direct or direct/indirect light distribution, designed for simplicity and flexibility. Could be mounted as an individual unit or into continuous lines. Double parabolic aluminium louvre with glare prevention.
Luminaire housing made of extruded aluminium profiles, completed with aluminium end caps, screwless on request. Eloxed high quality finish. Luminaire is designed for suspended or surface mounted installation.

LAMP	LED
Cooling	PASSIVE
Class	I
Ingress protection	IP20
Weight	3,4-4,6kg

VECTOR en (2,6MB)

INSTALLATION TYPE
• SUR – mounting on solid surfaces
• SUS – suspended luminaire
• WL – wall mounted luminaire

OPTICAL SYSTEM

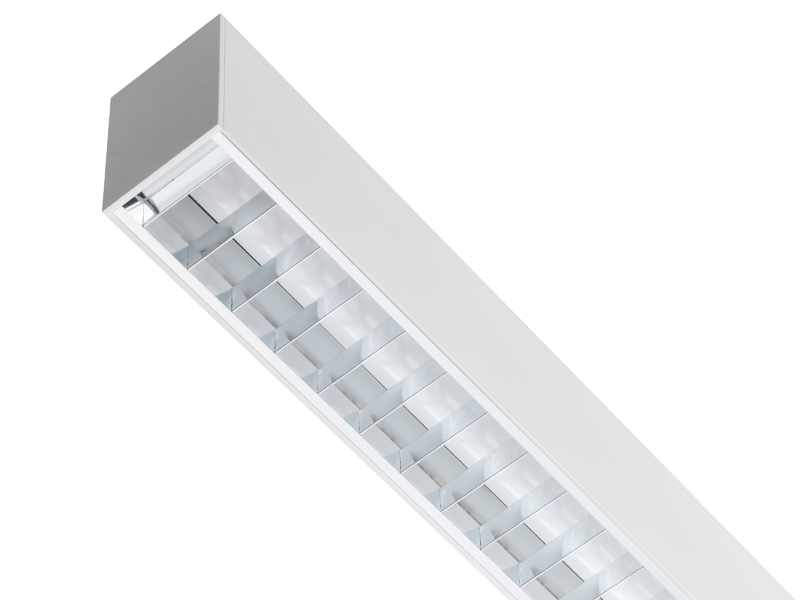

• PML (parabolic matt louvre) – matt, anodized, aluminium, double parabolic louvre with glare prevention

ELECTRICAL EQUIPMENT
• LED modules fixed on internal aluminium mounting plate
• electronic LED driver
• 3 or 5-pole screwless terminal block with strain relief, max. 2,5mm2
• cable opening entry completed with cable gland

OPTIONAL EQUIPMENT
• wired with emergency unit (1 or 3h)
• wired with dimmable electronic control gear (DSI, DALI)
• white/black colour finish
• continuous mounting
• corner joints

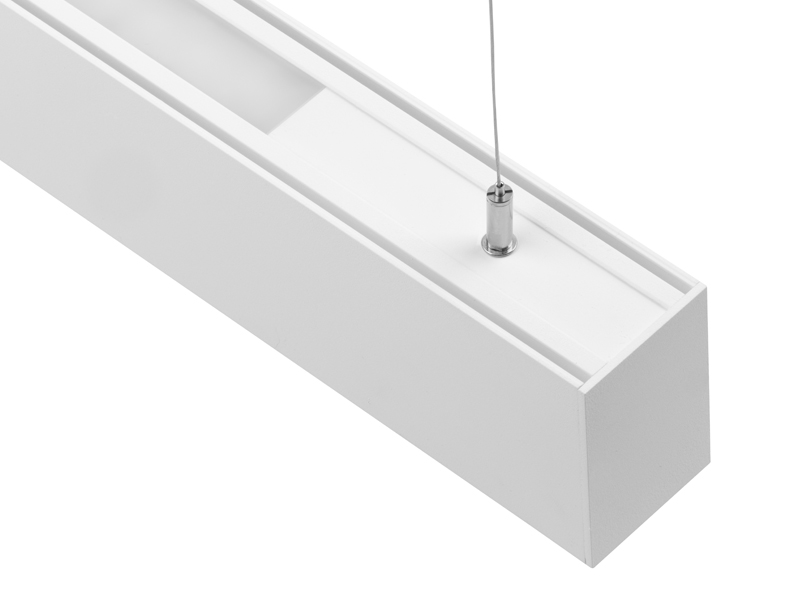

• suspensions

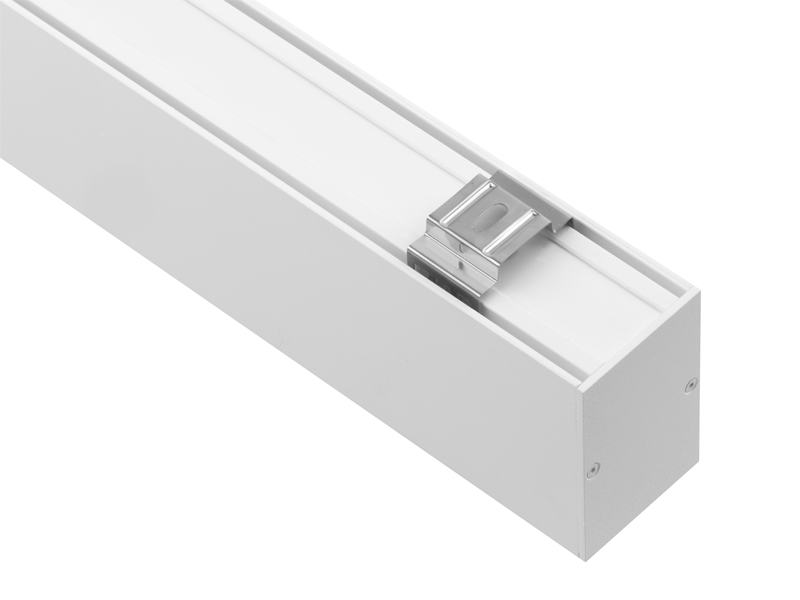

• brackets for wall and surface mounted installation
• transparent supply cable 3 or 5 x1,5mm2

SPECIFICATION

Type*	System power (W)	A/X (mm)	B (mm)	H (mm)	kg
VECTOR 60 DIR L 2700lm	31	1182/1050	61	93	3,4
VECTOR 60 DIR L 3270lm	37	1462/1330	61	93	4,1
VECTOR 60 DIR/INDIR L 4520lm	46	1182/1050	61	93	3,9
VECTOR 60 DIR/INDIR L 5328lm	54	1462/1330	61	93	4,6

*net lumen output of the luminaire by 4000K

Code	Type
VE6D0200LE02700	VECTOR 60 DIR L 2700lm
VE6D0200LE03270	VECTOR 60 DIR L 3270lm
VE6DI200LE04520	VECTOR 60 DIR/INDIR L 4520lm
VE6DI200LE05328	VECTOR 60 DIR/INDIR L 5328lm

CCT	Optics	CRI	Control gear	Colour	Accessories

4000K	PML	80	ECG	elox grey	M1h
2750K		90	DIM 1-10V	white	M3h
3000K			DSI	white
4000K			DALI
6500K
